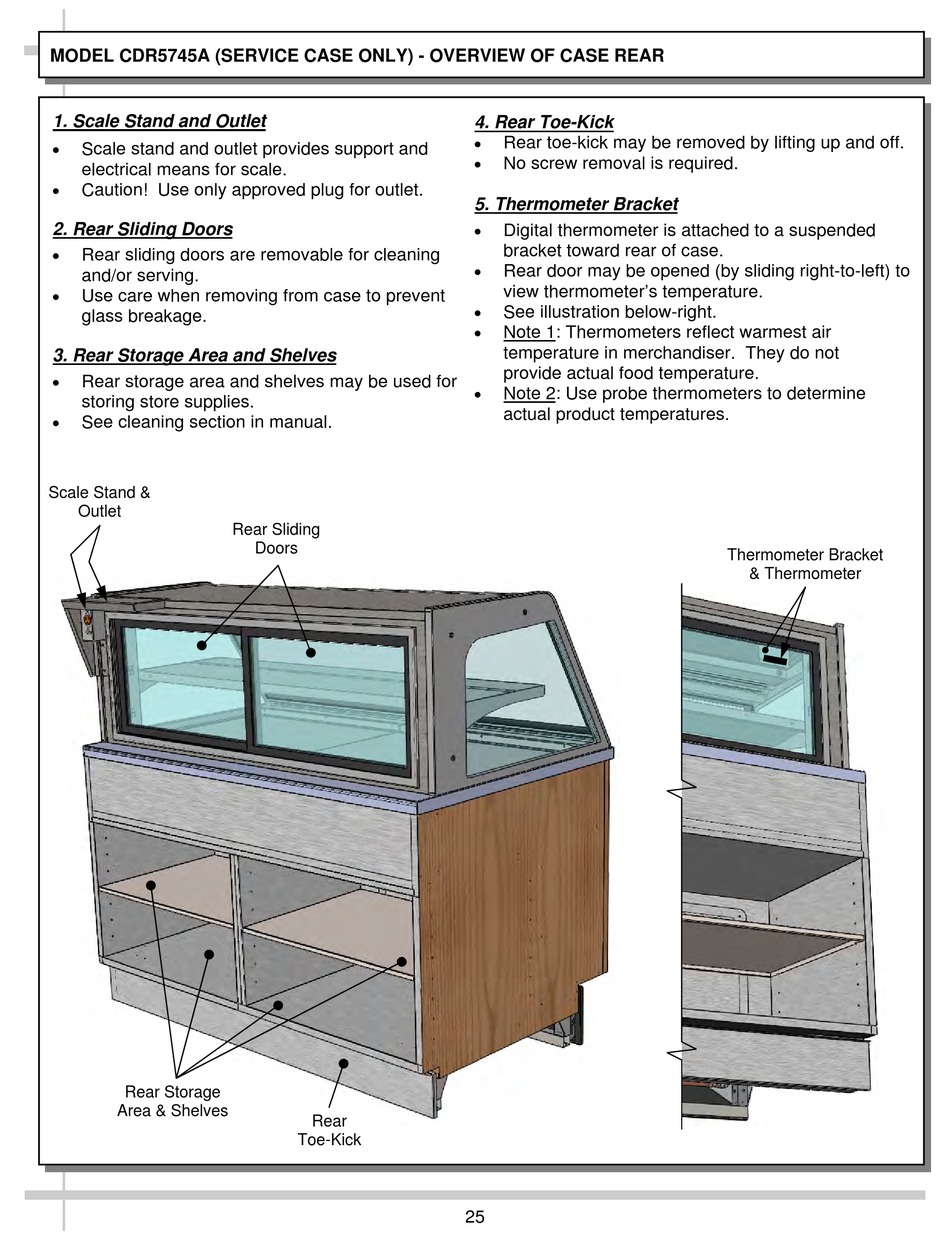

MODEL CDR5745A (SERVICE CASE ONLY) - OVERVIEW OF CASE REAR
1. Scale Stand and Outlet

Scale stand and outlet provides support and
electrical means for scale.

Caution! Use only approved plug for outlet.
2. Rear Sliding Doors

Rear sliding doors are removable for cleaning
and/or serving.

Use care when removing from case to prevent
glass breakage.
3. Rear Storage Area and Shelves

Rear storage area and shelves may be used for
storing store supplies.

See cleaning section in manual.
Scale Stand &
Outlet
Rear Storage
Area & Shelves
Rear Sliding
Doors
Rear
Toe-Kick
4. Rear Toe-Kick

Rear toe-kick may be removed by lifting up and off.

No screw removal is required.
5. Thermometer Bracket

Digital thermometer is attached to a suspended
bracket toward rear of case.

Rear door may be opened (by sliding right-to-left) to
view thermometer's temperature.

See illustration below-right.

Note 1: Thermometers reflect warmest air
temperature in merchandiser. They do not
provide actual food temperature.

Note 2: Use probe thermometers to determine
actual product temperatures.
25
Thermometer Bracket
& Thermometer
