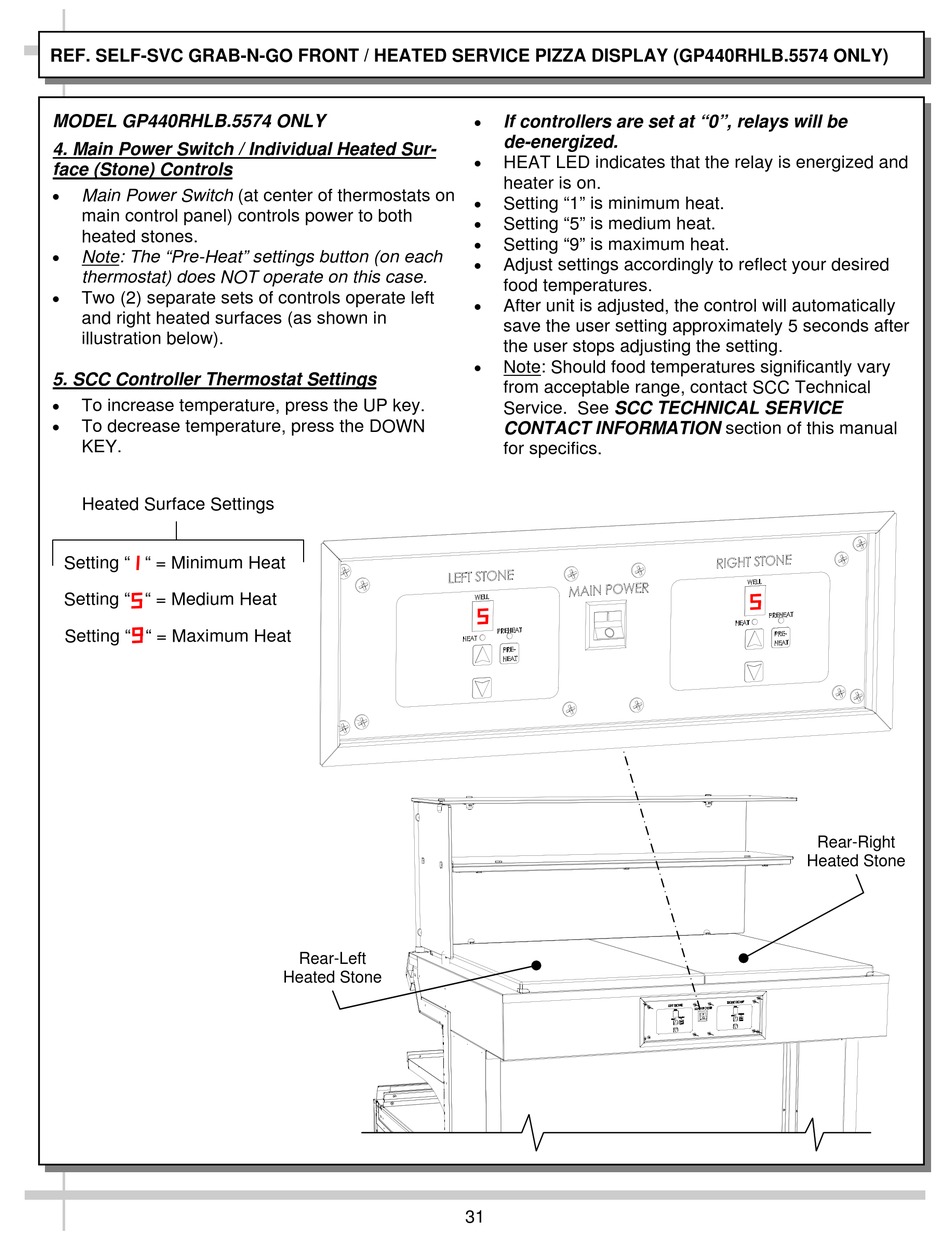

REF. SELF-SVC GRAB-N-GO FRONT / HEATED SERVICE PIZZA DISPLAY (GP440RHLB.5574 ONLY)
MODEL GP440RHLB.5574 ONLY
4. Main Power Switch / Individual Heated Sur-
face (Stone) Controls

Main Power Switch (at center of thermostats on
main control panel) controls power to both
heated stones.

Note: The "Pre-Heat" settings button (on each
thermostat) does NOT operate on this case.

Two (2) separate sets of controls operate left
and right heated surfaces (as shown in
illustration below).
5. SCC Controller Thermostat Settings

To increase temperature, press the UP key.

To decrease temperature, press the DOWN
KEY.
Heated Surface Settings
Setting " " = Minimum Heat
Setting " " = Medium Heat
Setting " " = Maximum Heat
Rear-Left
Heated Stone

If controllers are set at "0", relays will be
de-energized.

HEAT LED indicates that the relay is energized and
heater is on.

Setting "1" is minimum heat.

Setting "5" is medium heat.

Setting "9" is maximum heat.

Adjust settings accordingly to reflect your desired
food temperatures.

After unit is adjusted, the control will automatically
save the user setting approximately 5 seconds after
the user stops adjusting the setting.

Note: Should food temperatures significantly vary
from acceptable range, contact SCC Technical
Service. See SCC TECHNICAL SERVICE
CONTACT INFORMATION section of this manual
for specifics.
31
Rear-Right
Heated Stone
