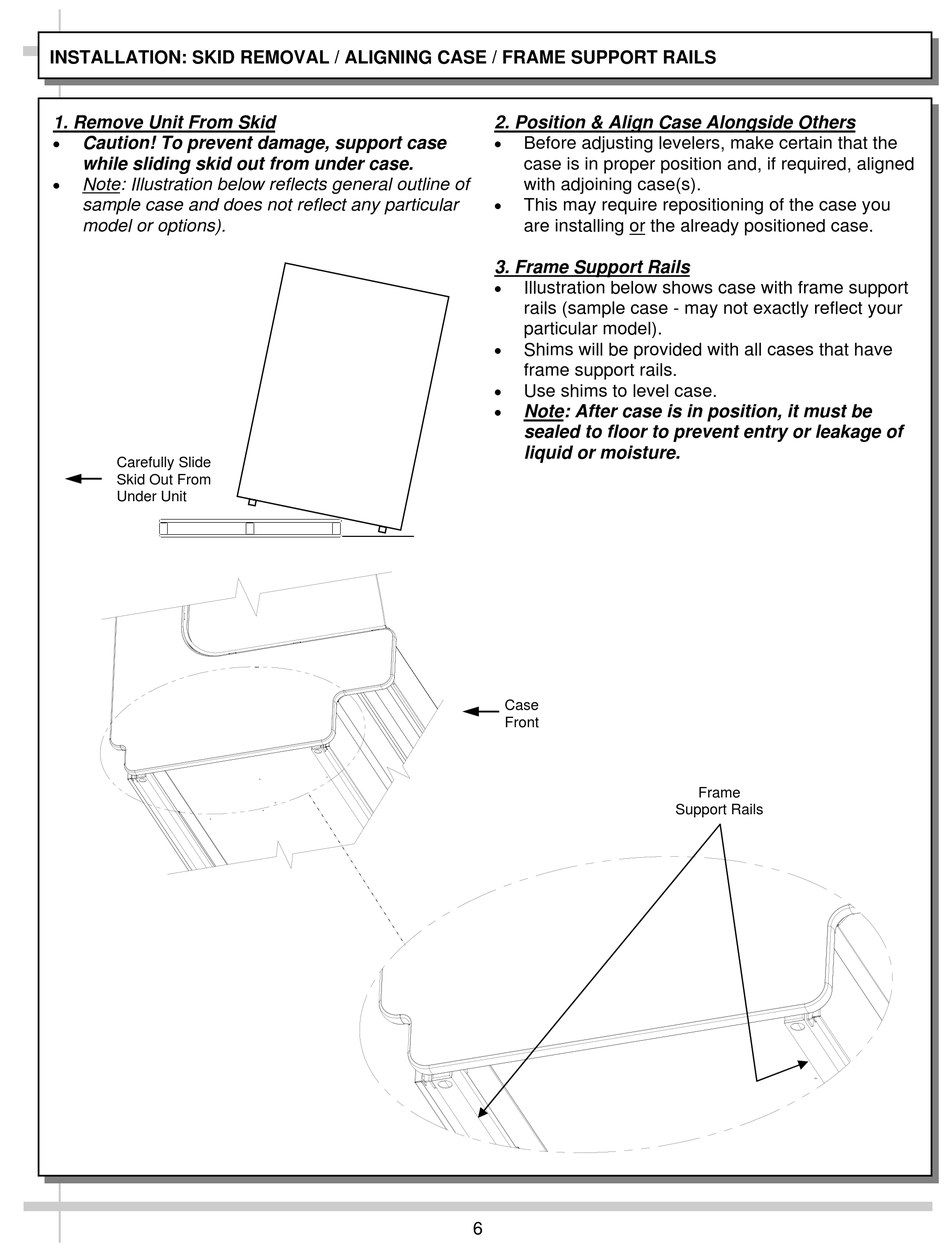

INSTALLATION: SKID REMOVAL / ALIGNING CASE / FRAME SUPPORT RAILS

1. Remove Unit From Skid

Caution! To prevent damage, support case
while sliding skid out from under case.

Note: Illustration below reflects general outline of
sample case and does not reflect any particular
model or options).
Carefully Slide
Skid Out From
Under Unit
2. Position & Align Case Alongside Others

Before adjusting levelers, make certain that the
case is in proper position and, if required, aligned
with adjoining case(s).

This may require repositioning of the case you
are installing or the already positioned case.
3. Frame Support Rails

Illustration below shows case with frame support
rails (sample case - may not exactly reflect your
particular model).

Shims will be provided with all cases that have
frame support rails.

Use shims to level case.

Note: After case is in position, it must be
sealed to floor to prevent entry or leakage of
liquid or moisture.
Case
Front
6
Frame
Support Rails
