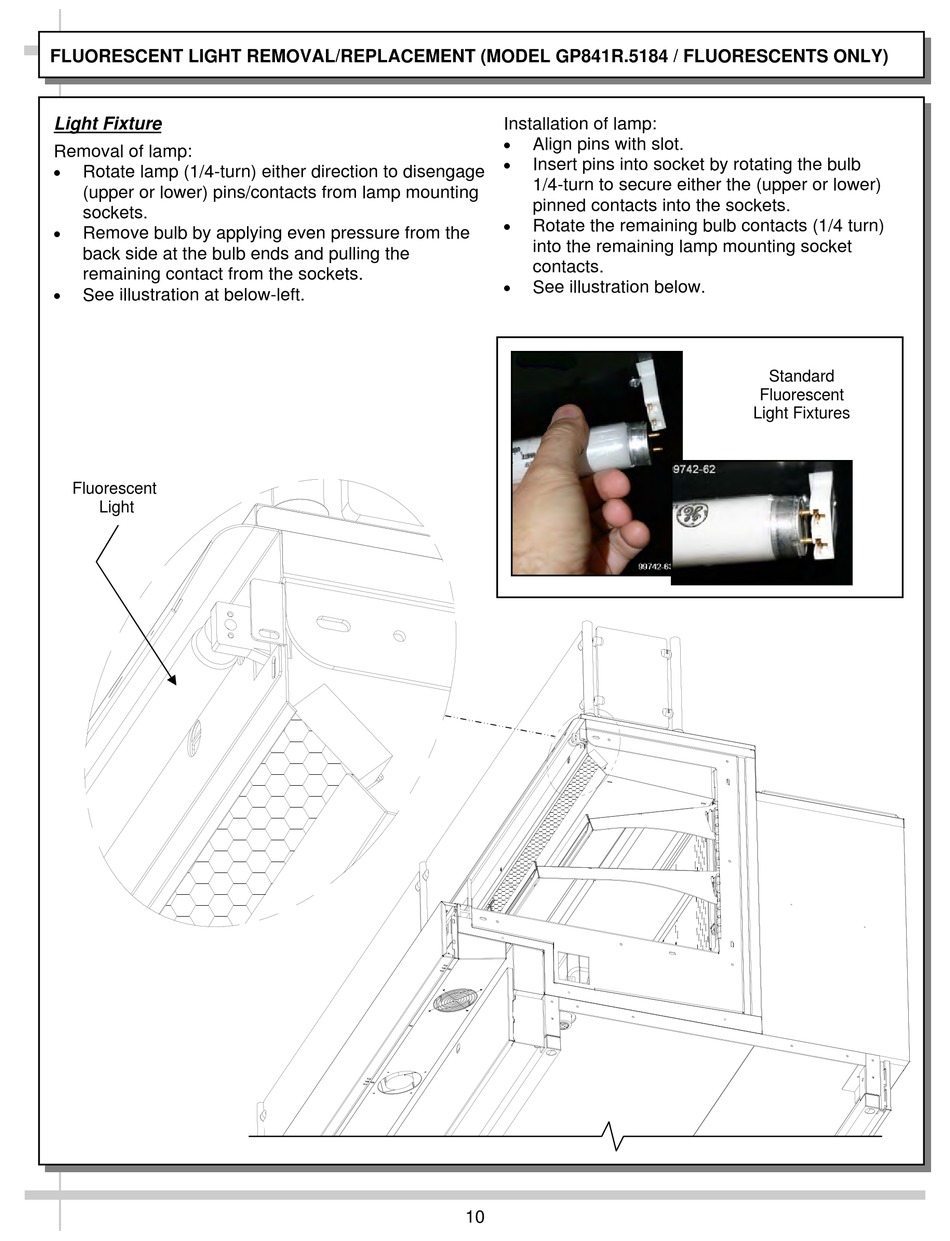

FLUORESCENT LIGHT REMOVAL/REPLACEMENT (MODEL GP841R.5184 / FLUORESCENTS ONLY)
Light Fixture
Removal of lamp:

Rotate lamp (1/4-turn) either direction to disengage
(upper or lower) pins/contacts from lamp mounting
sockets.

Remove bulb by applying even pressure from the
back side at the bulb ends and pulling the
remaining contact from the sockets.

See illustration at below-left.
Fluorescent
Light
Installation of lamp:

Align pins with slot.

Insert pins into socket by rotating the bulb
1/4-turn to secure either the (upper or lower)
pinned contacts into the sockets.

Rotate the remaining bulb contacts (1/4 turn)
into the remaining lamp mounting socket
contacts.

See illustration below.
10
Standard
Fluorescent
Light Fixtures
