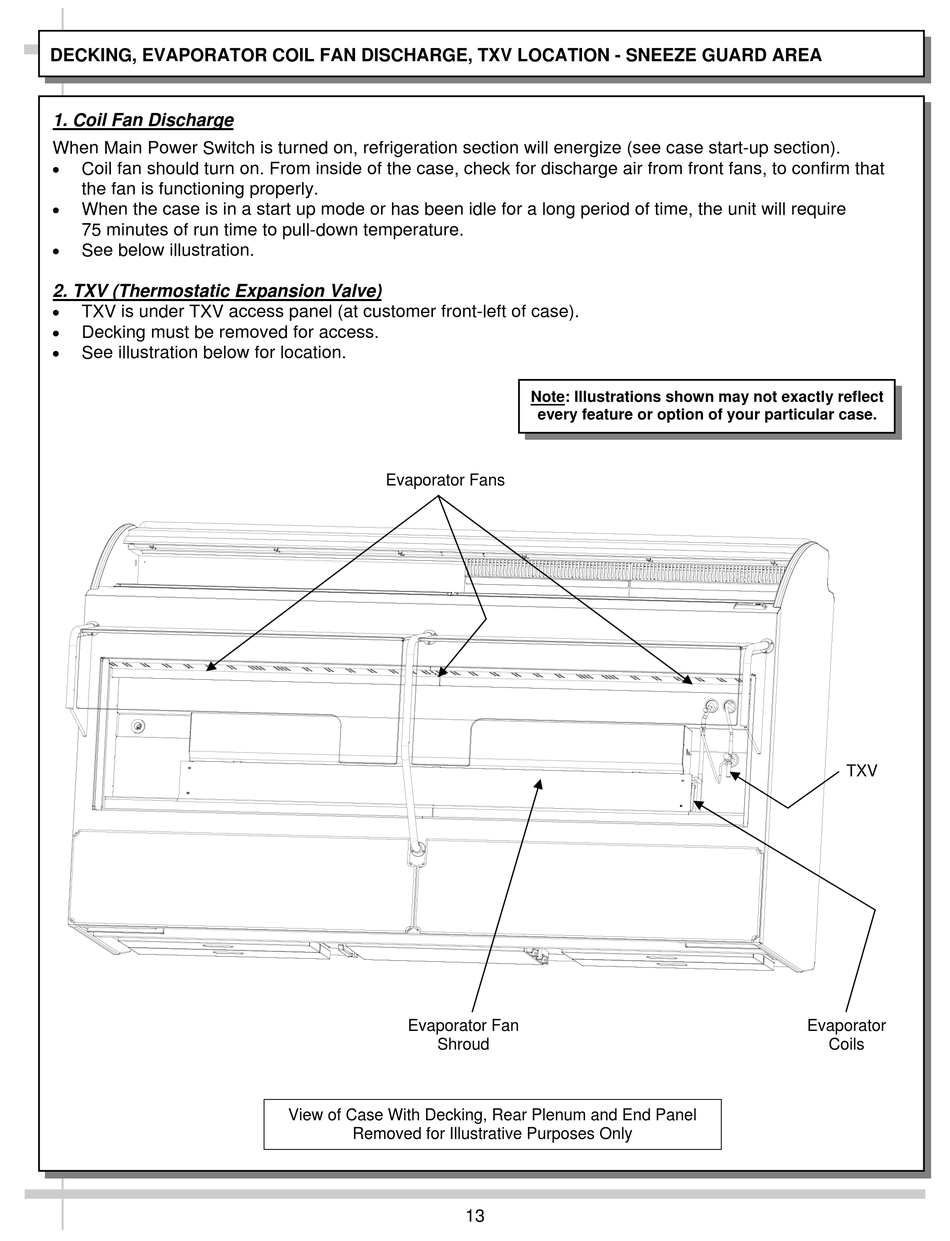

DECKING, EVAPORATOR COIL FAN DISCHARGE, TXV LOCATION - SNEEZE GUARD AREA

1. Coil Fan Discharge
When Main Power Switch is turned on, refrigeration section will energize (see case start-up section).

Coil fan should turn on. From inside of the case, check for discharge air from front fans, to confirm that
the fan is functioning properly.

When the case is in a start up mode or has been idle for a long period of time, the unit will require
75 minutes of run time to pull-down temperature.

See below illustration.
2. TXV (Thermostatic Expansion Valve)

TXV is under TXV access panel (at customer front-left of case).

Decking must be removed for access.

See illustration below for location.
Evaporator Fans
Evaporator Fan
Shroud
View of Case With Decking, Rear Plenum and End Panel
Removed for Illustrative Purposes Only
13
Note: Illustrations shown may not exactly reflect
every feature or option of your particular case.
TXV
Evaporator
Coils
