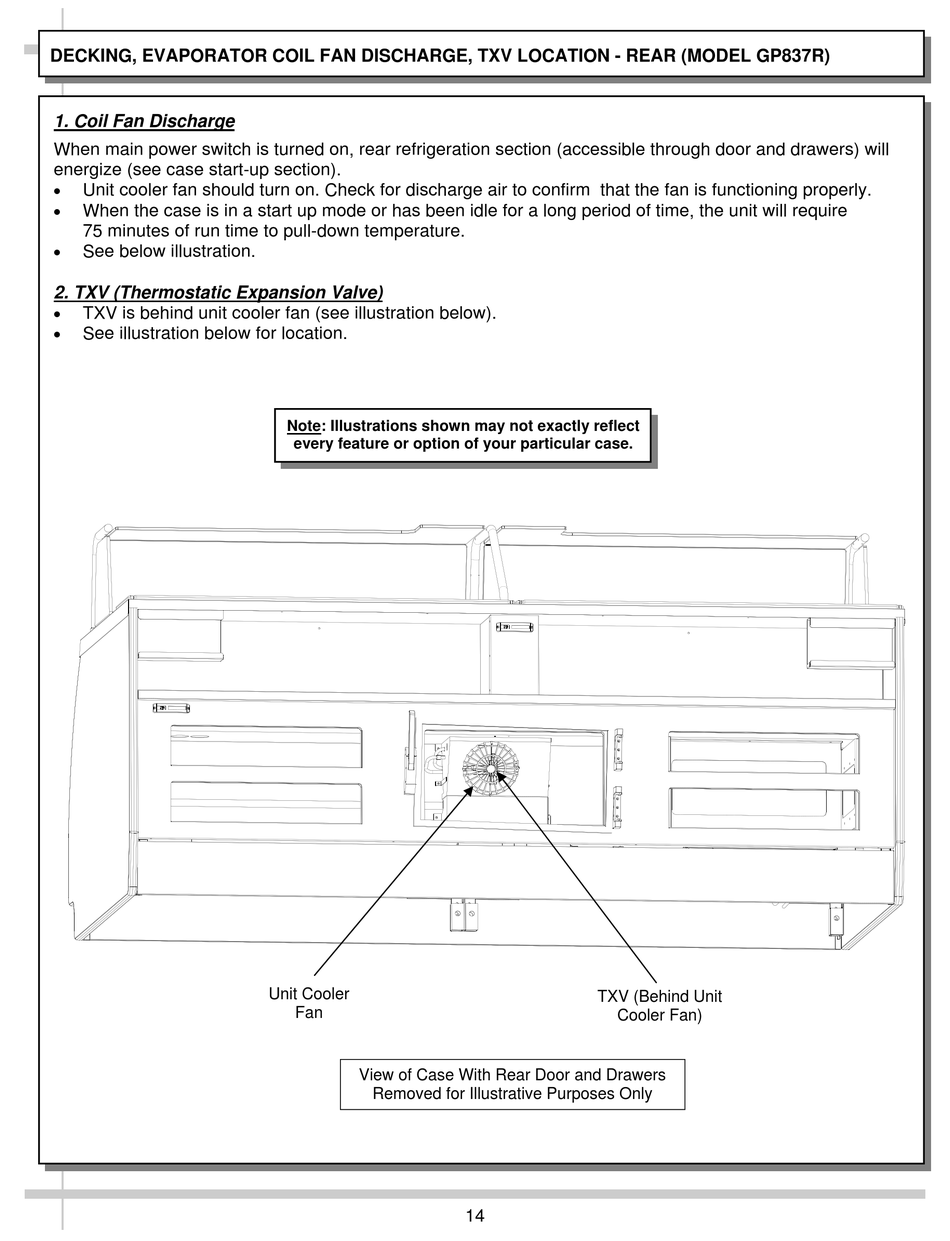

DECKING, EVAPORATOR COIL FAN DISCHARGE, TXV LOCATION - REAR (MODEL GP837R)
1. Coil Fan Discharge
When main power switch is turned on, rear refrigeration section (accessible through door and drawers) will
energize (see case start-up section).
Unit cooler fan should turn on. Check for discharge air to confirm that the fan is functioning properly.
When the case is in a start up mode or has been idle for a long period of time, the unit will require
75 minutes of run time to pull-down temperature.
See below illustration.
2. TXV (Thermostatic Expansion Valve)
TXV is behind unit cooler fan (see illustration below).
See illustration below for location.
Note: Illustrations shown may not exactly reflect
every feature or option of your particular case.
Unit Cooler
Fan
View of Case With Rear Door and Drawers
Removed for Illustrative Purposes Only
TXV (Behind Unit
Cooler Fan)
