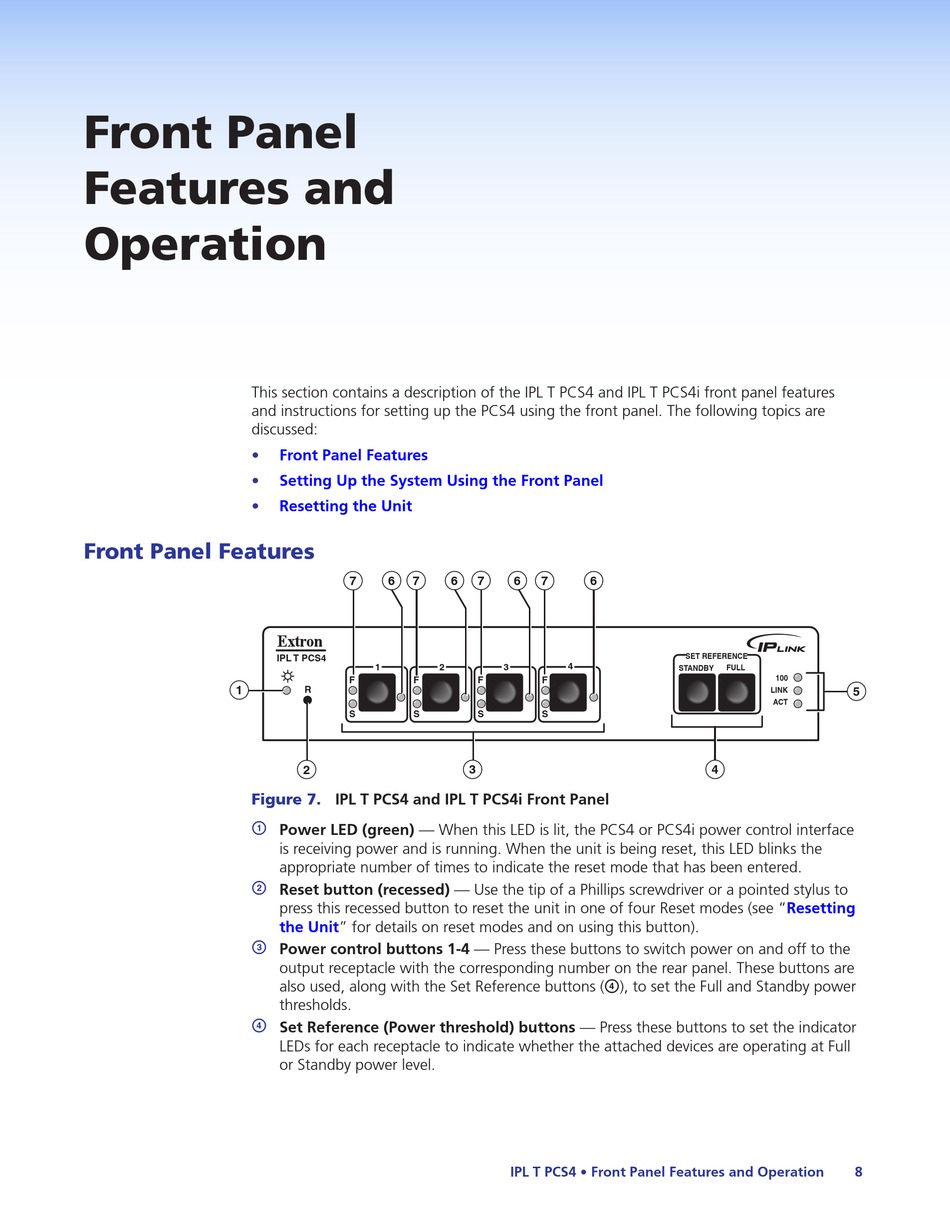

Front Panel Features And Operation; Front Panel Features - Extron electronics IP LINK IPL T PCS4 User Manual

Front Panel
Features and
Operation
This section contains a description of the IPL T PCS4 and IPL T PCS4i front panel features
and instructions for setting up the PCS4 using the front panel. The following topics are
discussed:
•
•
•

Front Panel Features

1
Figure 7.
a
b
c
d
Front Panel Features
Setting Up the System Using the Front Panel
Resetting the Unit
7 6 7 6
IPL T PCS4
1 2
F F
R
S S
2
IPL T PCS4 and IPL T PCS4i Front Panel
Power LED (green) — When this LED is lit, the PCS4 or PCS4i power control interface
is receiving power and is running. When the unit is being reset, this LED blinks the
appropriate number of times to indicate the reset mode that has been entered.
Reset button (recessed) — Use the tip of a Phillips screwdriver or a pointed stylus to
press this recessed button to reset the unit in one of four Reset modes (see
the Unit" for details on reset modes and on using this button).
Power control buttons 1-4 — Press these buttons to switch power on and off to the
output receptacle with the corresponding number on the rear panel. These buttons are
also used, along with the Set Reference buttons (
thresholds.
Set Reference (Power threshold) buttons — Press these buttons to set the indicator
LEDs for each receptacle to indicate whether the attached devices are operating at Full
or Standby power level.
7 6 7 6
4
3
F F
S S
3
d
), to set the Full and Standby power
IPL T PCS4 • Front Panel Features and Operation
SET REFERENCE
FULL
STANDBY
100
5
LINK
ACT
4
"Resetting
8
