4.5
Connect the Power Control Cable
Connect the power control cable from the control panel in the system
cabinet to the CCL panel in the expander cabinet. If there are two
expander cabinets, install the jack splitter into the control panel in the
system cabinet and connect both power control cables to the splitter.
Route each cable from the control panel in the system cabinet to the
CCL panel in each expander cabinet.

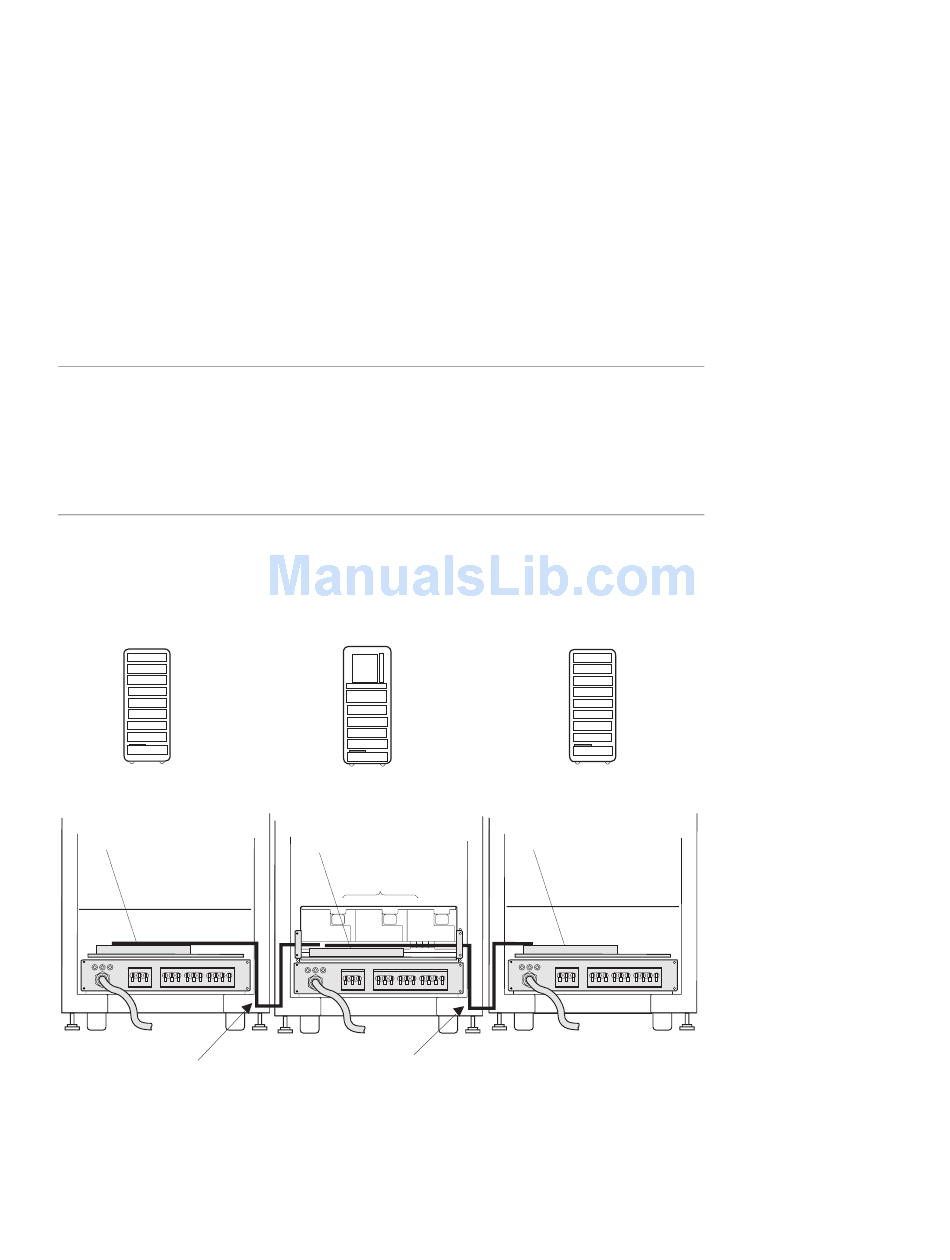

Figure 4–6 Power Control Cable Installation
Expander Cabinet, Rear
CCL Panel
Cable
to First
Expander
4-10
AlphaServer GS60E Installation Guide
Main Cabinet, Rear
CCL Panel
Power
Supplies
Cable
to Second
Expander
Expander Cabinet, Rear
CCL Panel
GS60E46-99
