Expander Cabinet - Compaq AlphaServer GS60E Installation Manual

1. Lift off the system cabinet cover and set aside (see
2. Open the system cabinet's front and rear doors
3. Remove the front and rear screws holding the right panel
4. Pull the bottom of the panel away from the cabinet, lift up, and remove
Repeat Steps 3 and 4 on the left side if there is a second expander cabinet.
5. Attach the removed panel(s) to the expander cabinet(s) by reversing the
above steps. This can be done now or after the cabinets are secured together
(see Section 4.4).
As shown in Figure 4-3, place the first expander cabinet to the right of the
system cabinet as viewed from the front of the system. Position a second
expander cabinet to the left of the system cabinet. A system can have a
maximum of two expander cabinets.
Figure 2-2 shows the system layout with clearances for access, and Table 2-2
provides information on cabinet dimensions and weight.

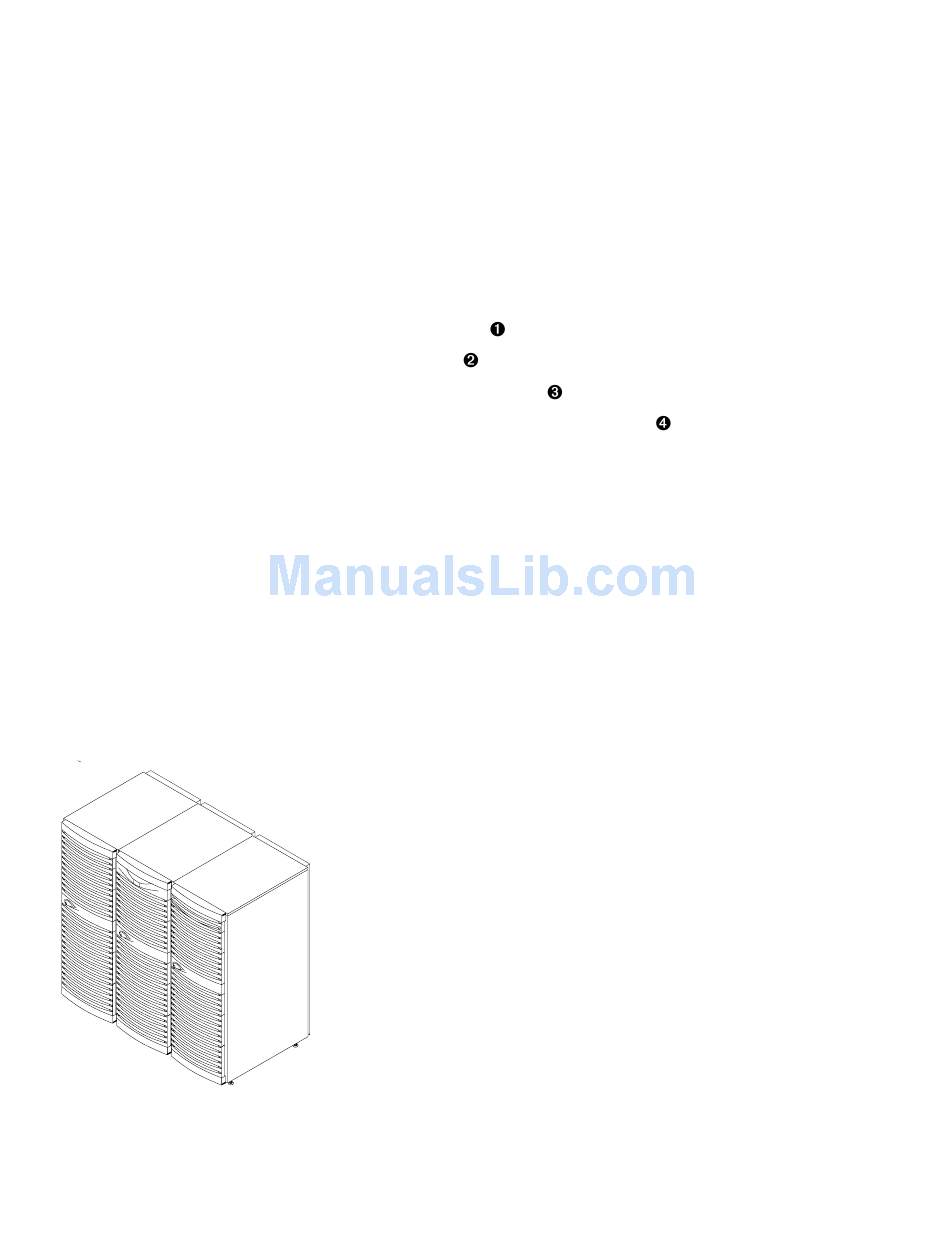

Figure 4–3 Expander Cabinet Positioning
2nd
Expander
Cabinet
System
Cabinet
1st
Expander
Cabinet
GS60E43-99
Installing an Expander Cabinet
, Figure 4-2).
.
.
.
4-5
