1. Unpack the serial console terminal. The console terminal signal cable is
shipped in the loose piece box and consists of a 17-01364-02 cable and
H8575-A adapter.
2. Open the rear door and connect one end of the 17-01364-02 cable to the
console terminal port on the control panel (see Figure 5-2). Connect the
other end of the cable to the H8575-A, which connects to a 25-pin D-
subminiature connector on the console terminal. Connect the cable ground
wire to the cabinet grounding screw nearby. Connect the other end of the
cable ground wire to one of the screws on the H8575-A.
3. If a printer is not present, skip this step. Otherwise, unpack the printer.
Connect the signal cable to the printer and to the console terminal. Plug in
the printer.
4. The following are the default terminal characteristics. If the terminal does
not have these characteristics, they must be set accordingly:
•
Baud rate = 9600 (transmit = receive)
•
8 bits, no parity
•
1 Stop Bit
•
Xoff at 64

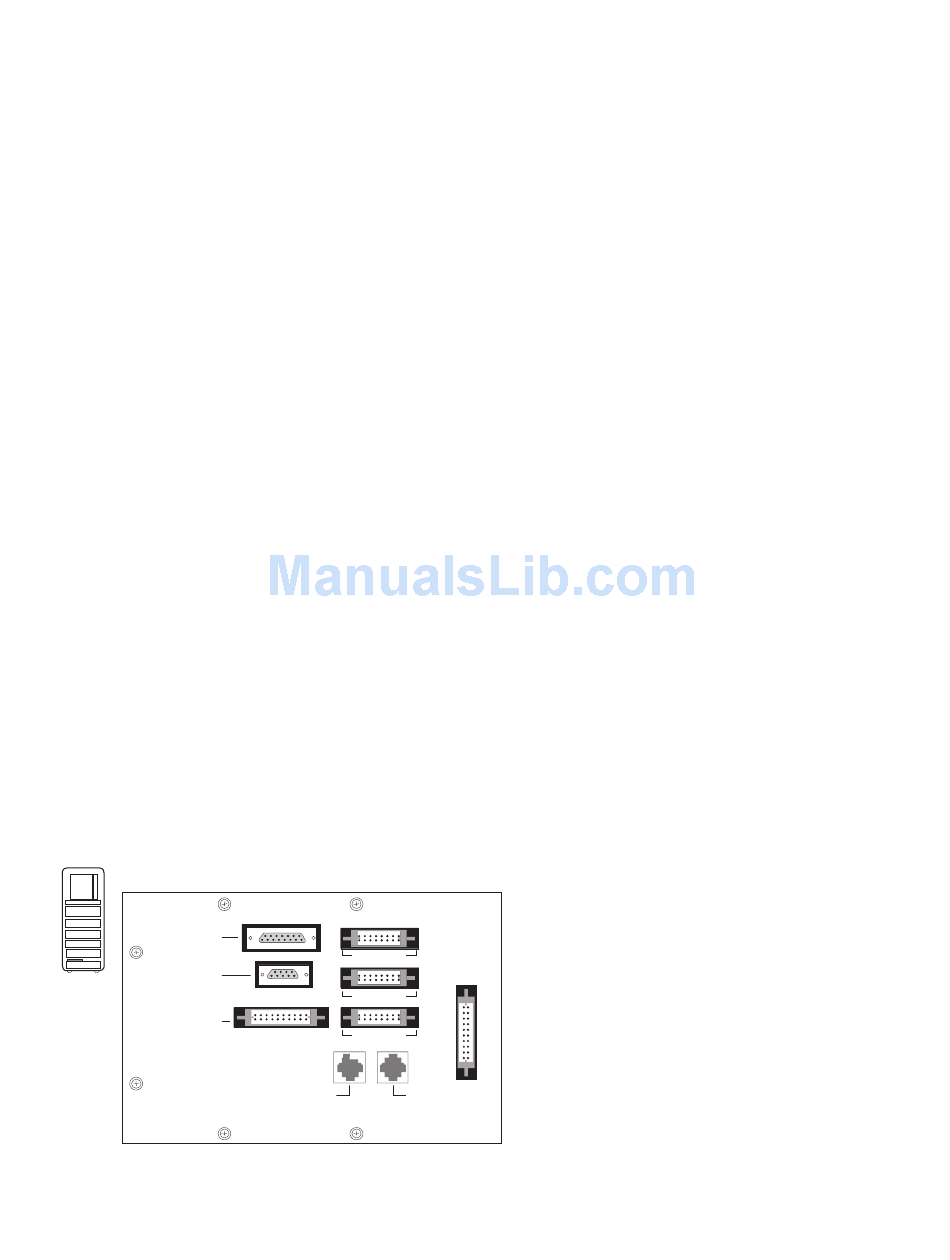

Figure 5-2 CCL Panel and Console Terminal Port
Rear
External
Power Enable
External
UPS Power
External
Enable
PowerComm 1
PowerComm 2
PowerComm 3
Expander
Console
Making Console, SCSI, and Ethernet Connections
GS60E52-99
5-3
