WARNING: Before beginning this procedure, make sure the system is powered
off.
1. If there are two expander cabinets, at the rear of the system cabinet plug
the jack splitter (PN 12-44937-01) into the system cabinet control panel jack
marked Expander (see Figure 4-7).
2. For the right expander cabinet, plug the power control cable (PN 17-03511-
05) into the jack splitter or the jack marked Expander on the system control
panel at the rear of the system cabinet.
3. Route the cable according to Figure 4-6 and plug the other end of the cable
into the jack marked Expander on the CCL panel at the rear of the right
expander cabinet.
4. For the left expander cabinet, plug the second power control cable (PN 17-
03511-05) into the jack splitter in the system cabinet.
5. Route the cable according to Figure 4-6 and plug the other end of the cable
into the jack marked Expander on the CCL panel at the rear of the left
expander cabinet.
6. Tie wrap the cables in place.

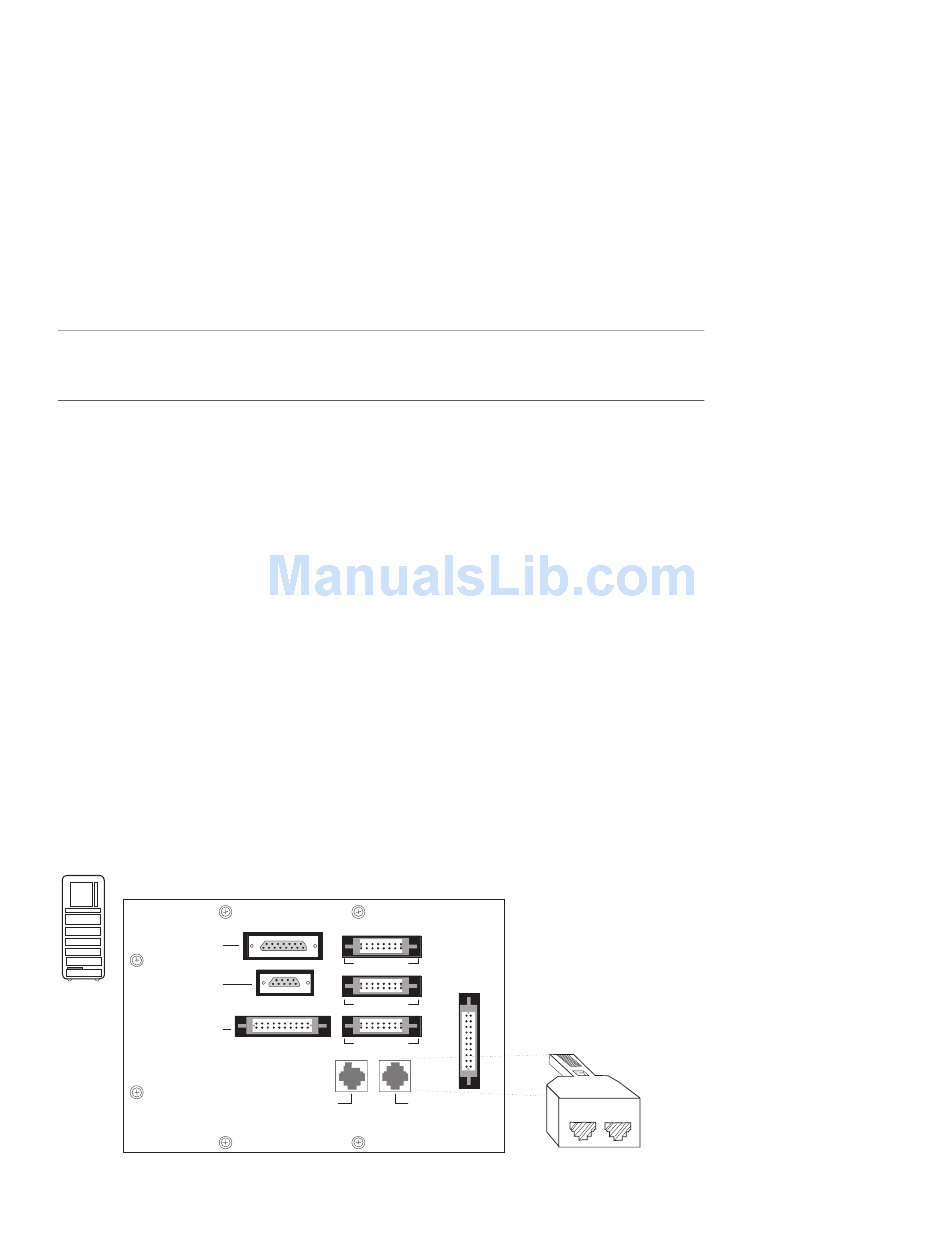

Figure 4–7 CCL Panel and Jack Splitter
Rear
External
Power Enable
External
UPS Power
External
Enable
PowerComm 1
PowerComm 2
PowerComm 3
Expander
Console
Installing an Expander Cabinet
Jack Splitter
GS60E47-99
4-11
