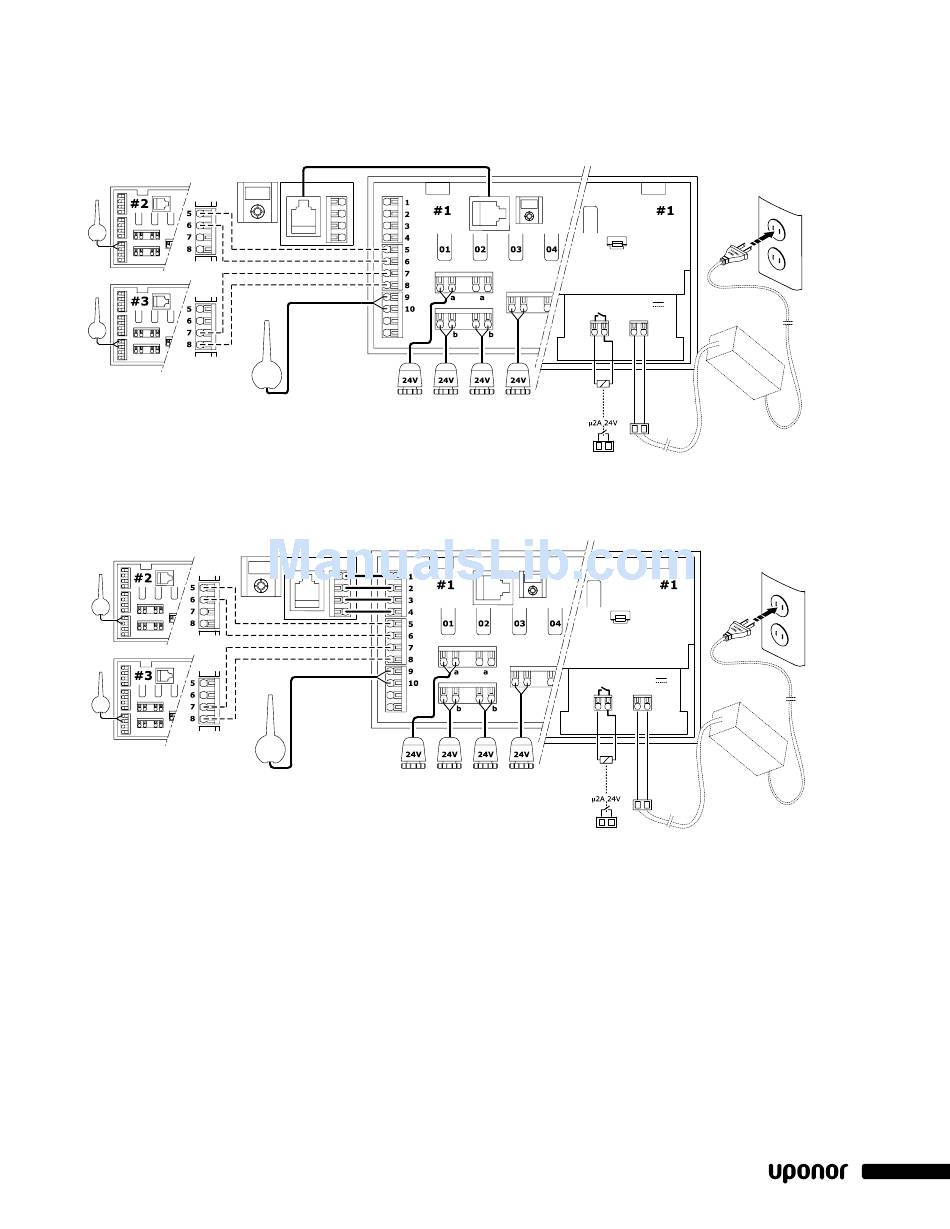

Base Unit Connection Diagram
Connection of the interface with the cable fitted with RJ 9 connectors (6-foot cable)
Base Unit Connection Diagram
Connection of the interface with the quick connectors (49-foot cable)
Uponor Climate Co ˘ ntrol™ Zoning System Installation Guide
24VDC
-
+
Heat Demand
Power Supply
Relay (dry)
110VAC only
~
24VDC
-
+
Heat Demand
Power Supply
Relay (dry)
110VAC only
~
35
