Mounting the Base Unit
• Position the base unit just above the manifold.
Ensure the power receptacle is within reach of
the base unit's power supply cord.
• Check that the base units cover can be
removed easily.
• Check that the connectors and switches are
easily accessible.

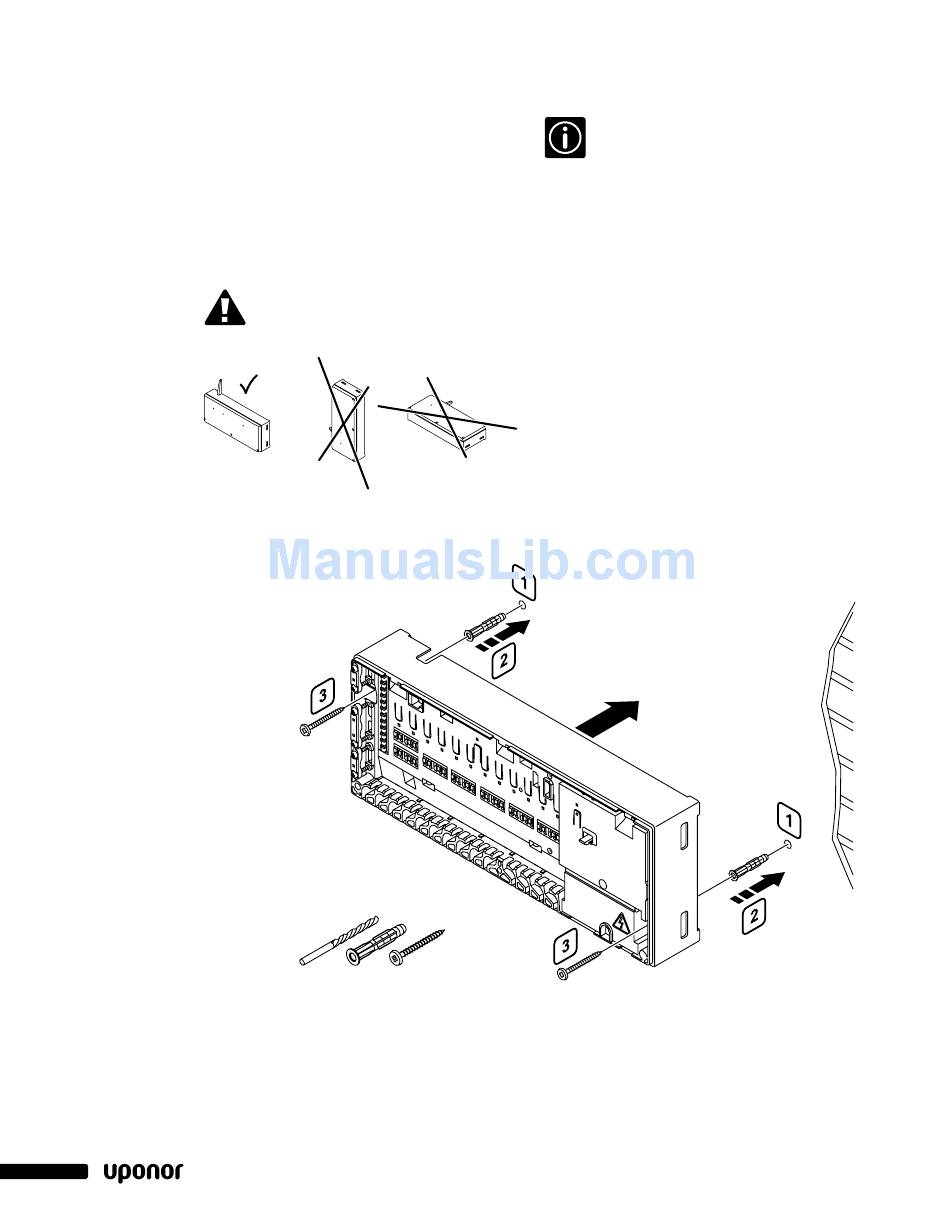

1. Hold base unit to wall; mark mounting hole locations
on the wall with a pencil.
2. Drill the wall.
3. Press the anchor into the hole.
4. Attach the base unit to the wall with screws.
8
Caution: Mount the base unit horizontally.
There is a risk for overheating if the base unit is
mounted vertically or on a flat surface.
Information: Each thermostat can control any
number of channels. Installation and
maintenance are simplified if actuators
controlled by the same thermostat are wired to
channels in sequence.
