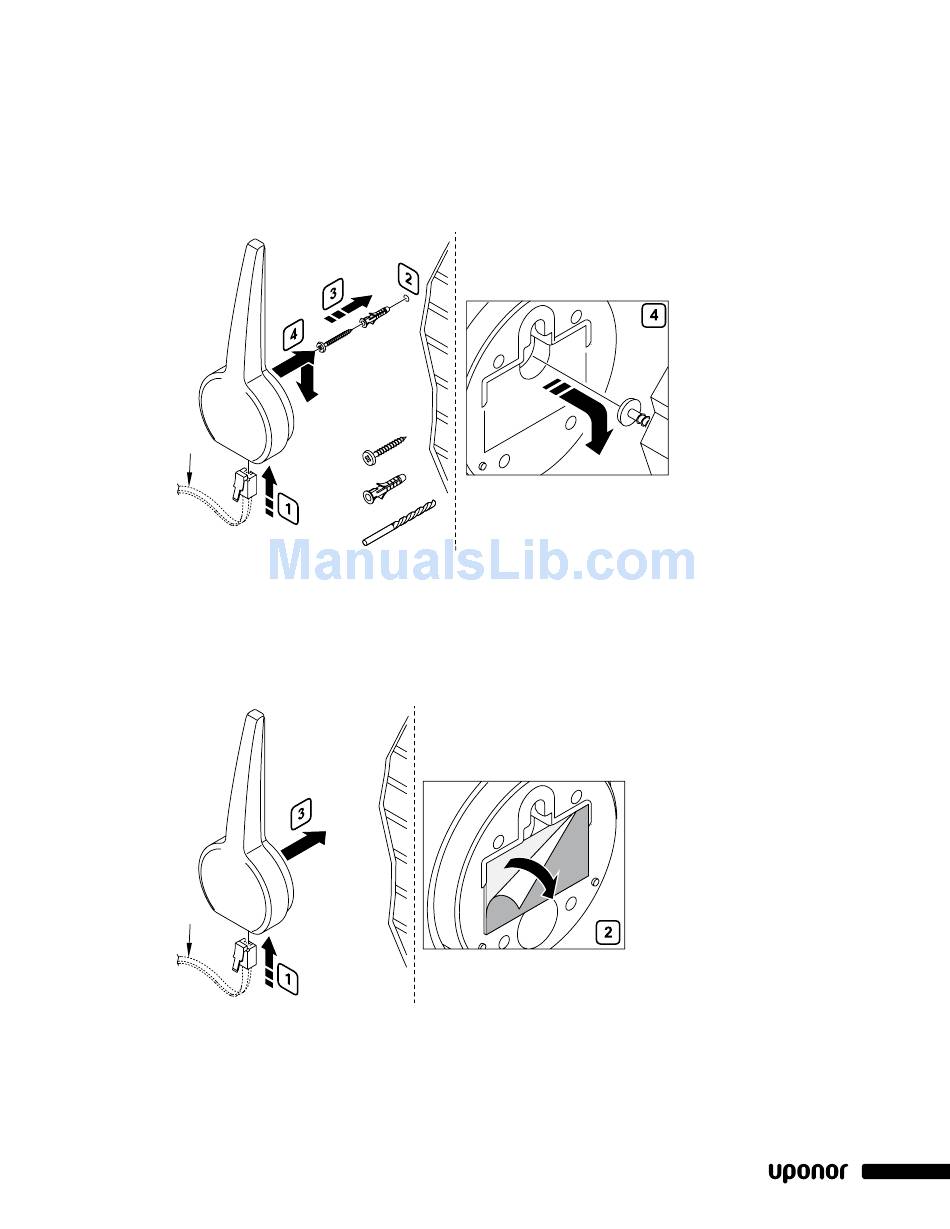

Fastening the Antenna to the Wall with Screws
1. Connect the RJ 9 connector into the antenna.
2. Using a drill bit, drill the wall.
3. Fix anchor and screw to the wall. Let the screw
protrude from the wall.
4. Fasten the antenna on the screw.
10 feet
Fastening the Antenna to the Wall with Adhesive
1. Connect the RJ 9 connector into the antenna.
2. Use the double-sided adhesive strip to attach the
antenna to a smooth wall, such as glazed ceramic tiles.
10 feet
Uponor Climate Co ˘ ntrol™ Zoning System Installation Guide
7
