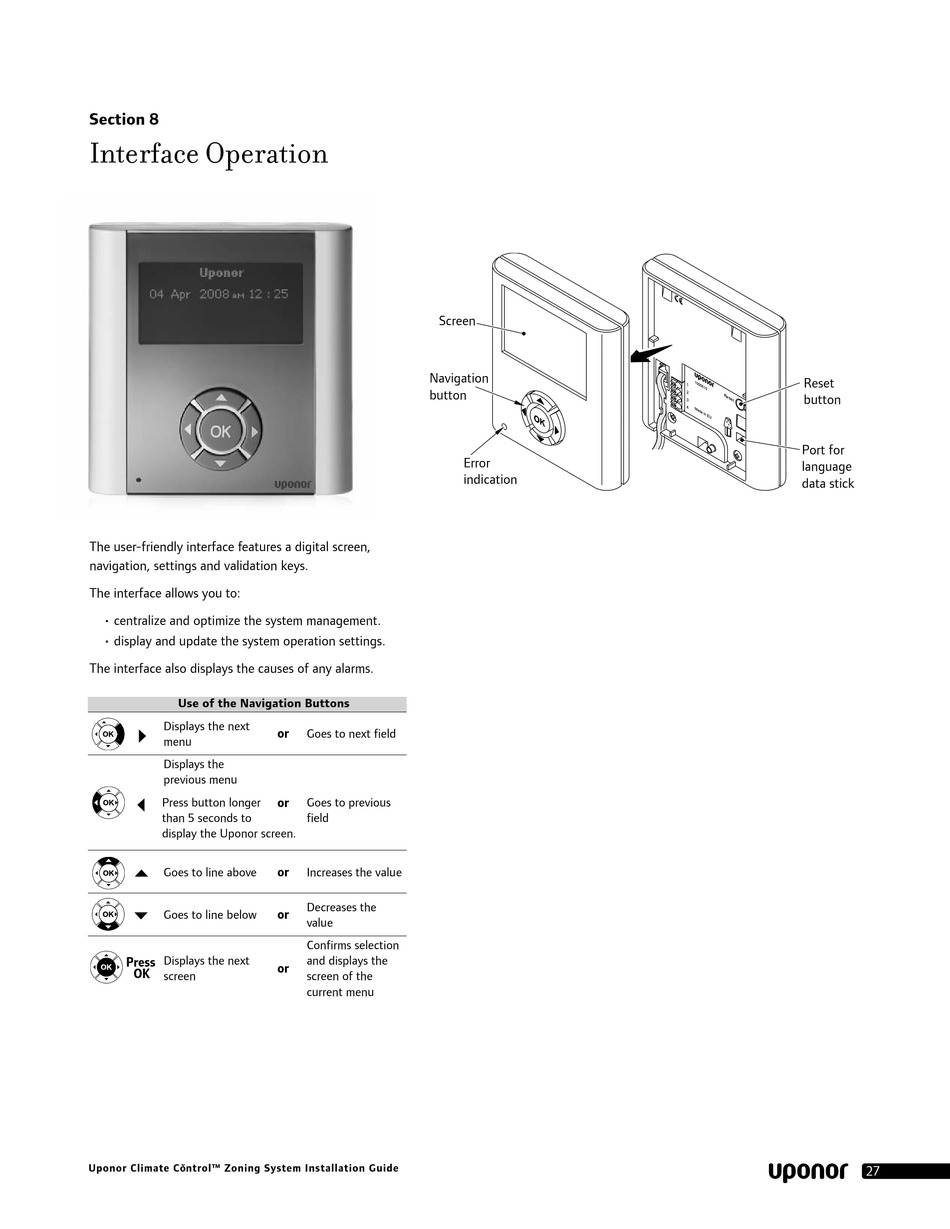

Section 8
Interface Operation
1 Screen
The user-friendly interface features a digital screen,
navigation, settings and validation keys.
2 Navigation button
The interface allows you to:
3 Error indicator
• centralize and optimize the system management.
Reset button
4 • display and update the system operation settings.
The interface also displays the causes of any alarms.
5 Port for language datastick
Use of the Navigation Buttons
Displays the next
menu
Displays the
previous menu
Press button longer
than 5 seconds to
display the Uponor screen.
Goes to line above
Goes to line below
Displays the next
Press
OK
screen
Uponor Climate Co ˘ ntrol™ Zoning System Installation Guide
Screen
Navigation
button
or
Goes to next field
or Goes to previous
field
or
Increases the value
Decreases the
or
value
Confirms selection
and displays the
or
screen of the
current menu
Error
indication
Reset
button
Port for
language
data stick
