Section 9
Technical Data
General
• IP: IP30 (IP: degree of non-accessibility to the active
parts of the product and degree of non-accessibility
of water)
• Max. ambient relative humidity (RH): 95% max. at
68°F/20°C.
• Class II low-voltage device
Thermostat T-75
• Certification
- FCC Part 15 Subpart C
- Industry Canada Category I device
• Approval and certification:
- KNX: Konnex approval and certification
• Power supply: 2x Alkaline AAA 1.5V
• Voltage: 2.2V to 3.6V
• Operating temperature: 32°F/0°C to 113°F/45°C
• Storage temperature: 14°F/-10°C to 149°F/65°C
• Radio frequency: 902-928 MHz
• Transmitter duty cycle: 1%
Interface I-75
• CE marking:
- Low-voltage tests: EN 60730-1 and EN
60730-2-1
- EMC tests: EN 60730-1
• Power supply: 11VDC ±10% from controller
• Operating temperature: 32°F/0°C to 131°F/55°C
• Storage temperature: -4°F/-20°C to 158°F/70°C
• Consumption: 1W maximum

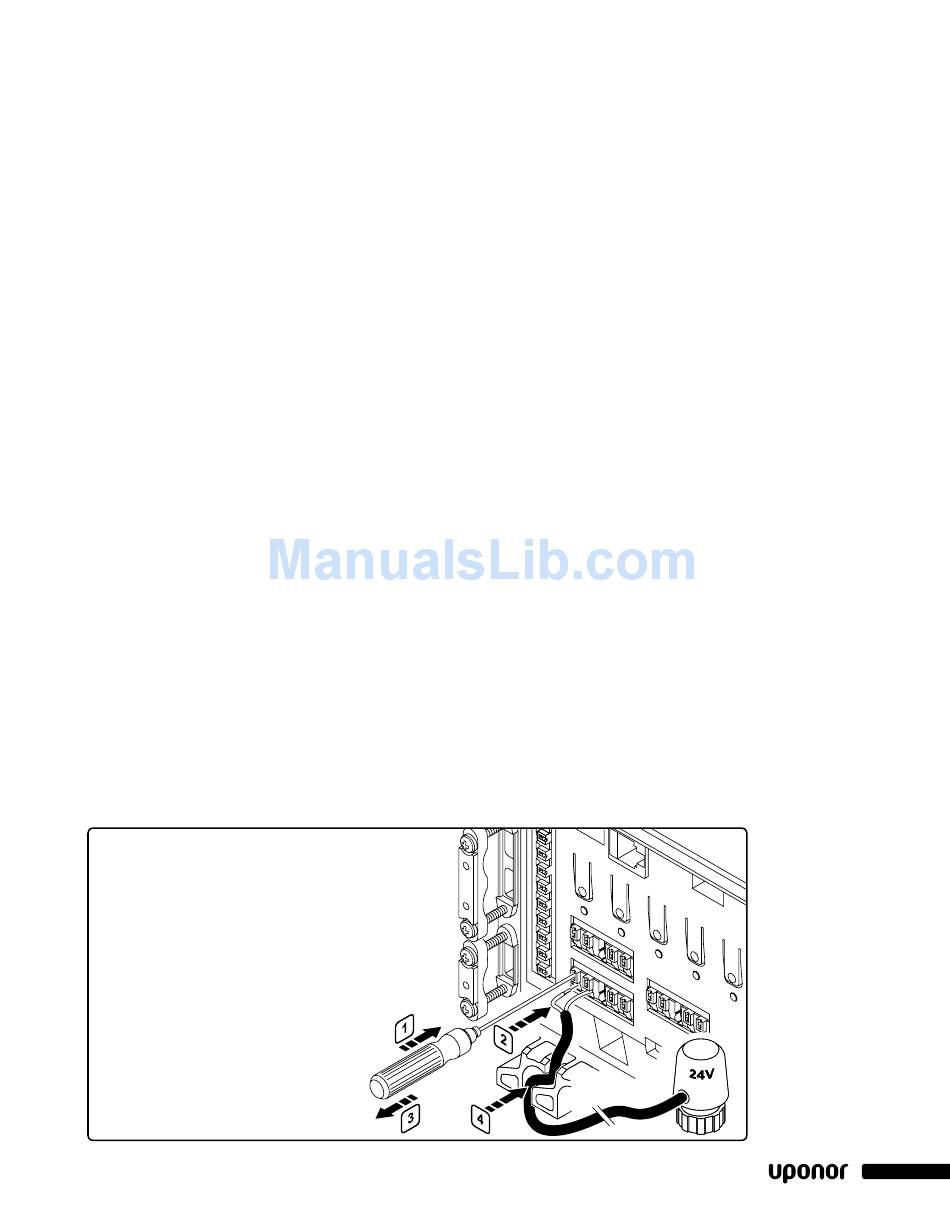

Use of Quick Connectors:
1. Without turning, use a thin screwdriver to press
the white button of the terminal to insert or
remove a wire.
2. Insert a wire in the quick connector.
3. Release the white button.
4. Run the cable in the cable guides secure it.
5. Screw clamp to secure the cable
of antenna or/and extension.
Uponor Climate Co ˘ ntrol™ Zoning System Installation Guide
Antenna T55
• Power supply: 11VDC ±10% from controller
• Consumption: << 1W
• Radio frequency: 902 to 928 MHz
• Transmitter duty cycle: 1%
• Receiver Class: 2
Base Unit C-55
• Certification
- FCC Part 15 Subpart C
- Industry Canada Category I device
• Certification
- ICES-003
• Power supply: 90-130VAC, 60Hz Class II switching
power supply
• Operating temperature: 32°F/0°C to 131°F/55°C
• Storage temperature: -4°F/-20°C to 158°F/70°C
• Consumption: 70 W in full load max at 24VAC
• Demand contact: 24VAC at 2 Amps max (not fused)
• Valve outputs: 24VDC ±10%, 436 mA max. per
output 1 and 2 24VDC ±10%, 218 mA max. per
output 3 to 12
• Supply connection: terminal strip (push type)
polarity sensitive
* Do not substitute the external power supply. Damage to the controller
and hazardous conditions may occur. Warranty will be voided.
