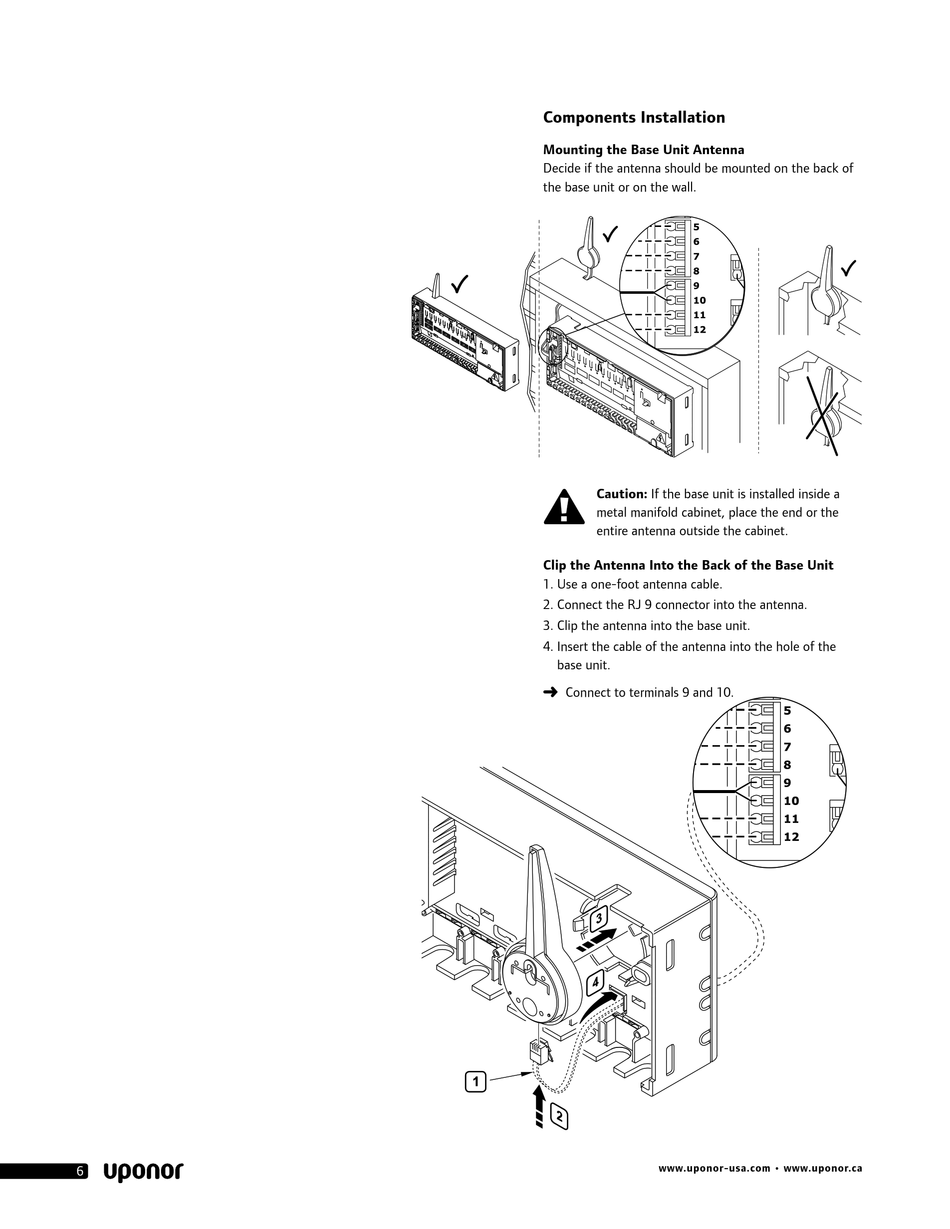

Components Installation

Mounting the Base Unit Antenna
Decide if the antenna should be mounted on the back of
the base unit or on the wall.
#09
#10
Caution: If the base unit is installed inside a
metal manifold cabinet, place the end or the
entire antenna outside the cabinet.
Clip the Antenna Into the Back of the Base Unit
1. Use a one-foot antenna cable.
2. Connect the RJ 9 connector into the antenna.
3. Clip the antenna into the base unit.
4. Insert the cable of the antenna into the hole of the
base unit.
� Connect to terminals 9 and 10.
