Section 4
Thermostat Installation
The Zoning System is controlled by the
Thermostat Display T-75.
Thermostat
Display T-75

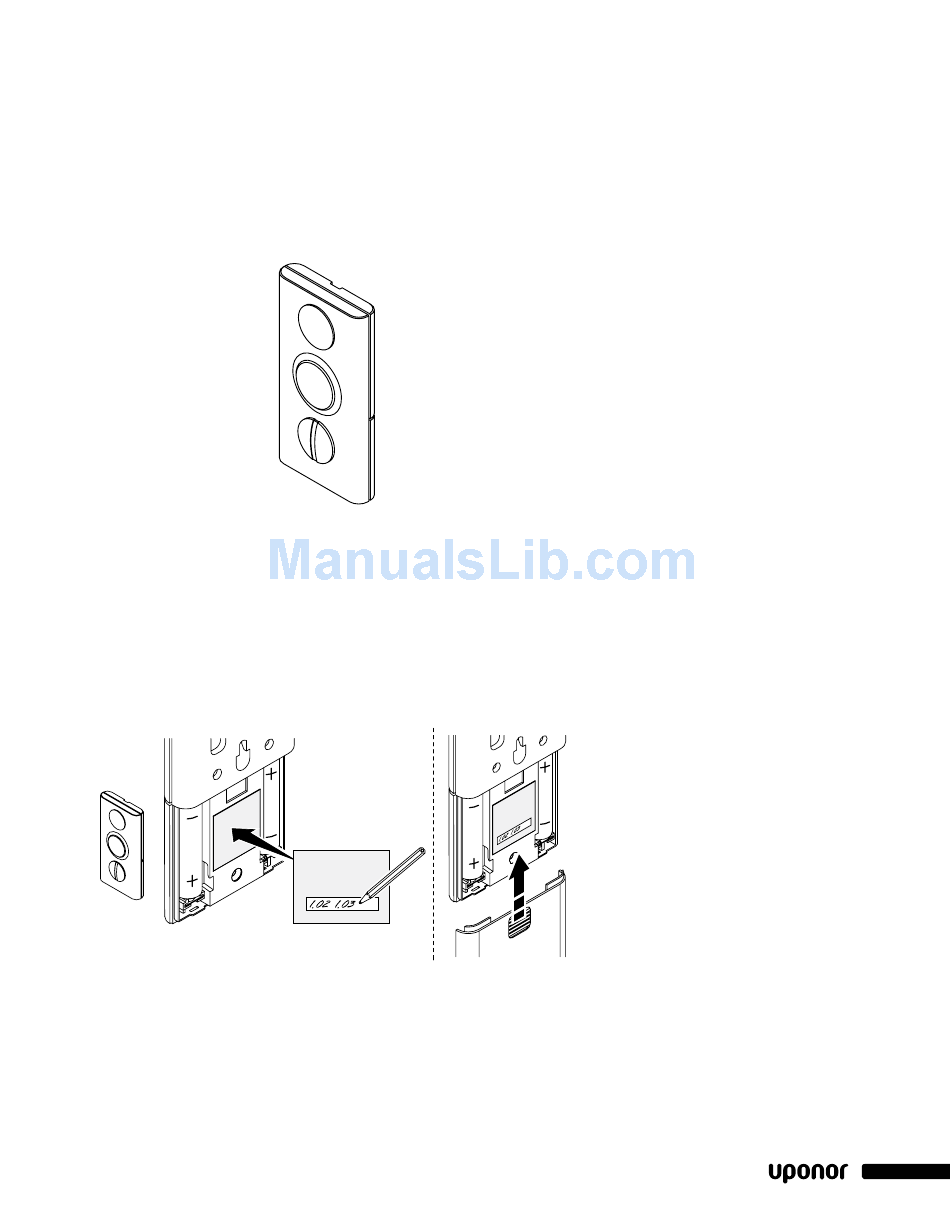

Label the Room Thermostats

• Install two alkaline AAA 1.5V batteries in each
thermostat (see page 26).
• Label the thermostats with the channel numbers they
are to control, e.g., 02, 03, etc. For a system with an
interface and several base units, an identification for
the base unit should be added, e.g., 1.02, 1.03, 2.02,
2.03, etc.
T-75
Uponor Climate Co ˘ ntrol™ Zoning System Installation Guide
11
