Circulation Pump Relay
If separate pumps are used for each manifold, each pump
relay can be connected to its own base unit.
See: Section 3: Base Unit Installation.

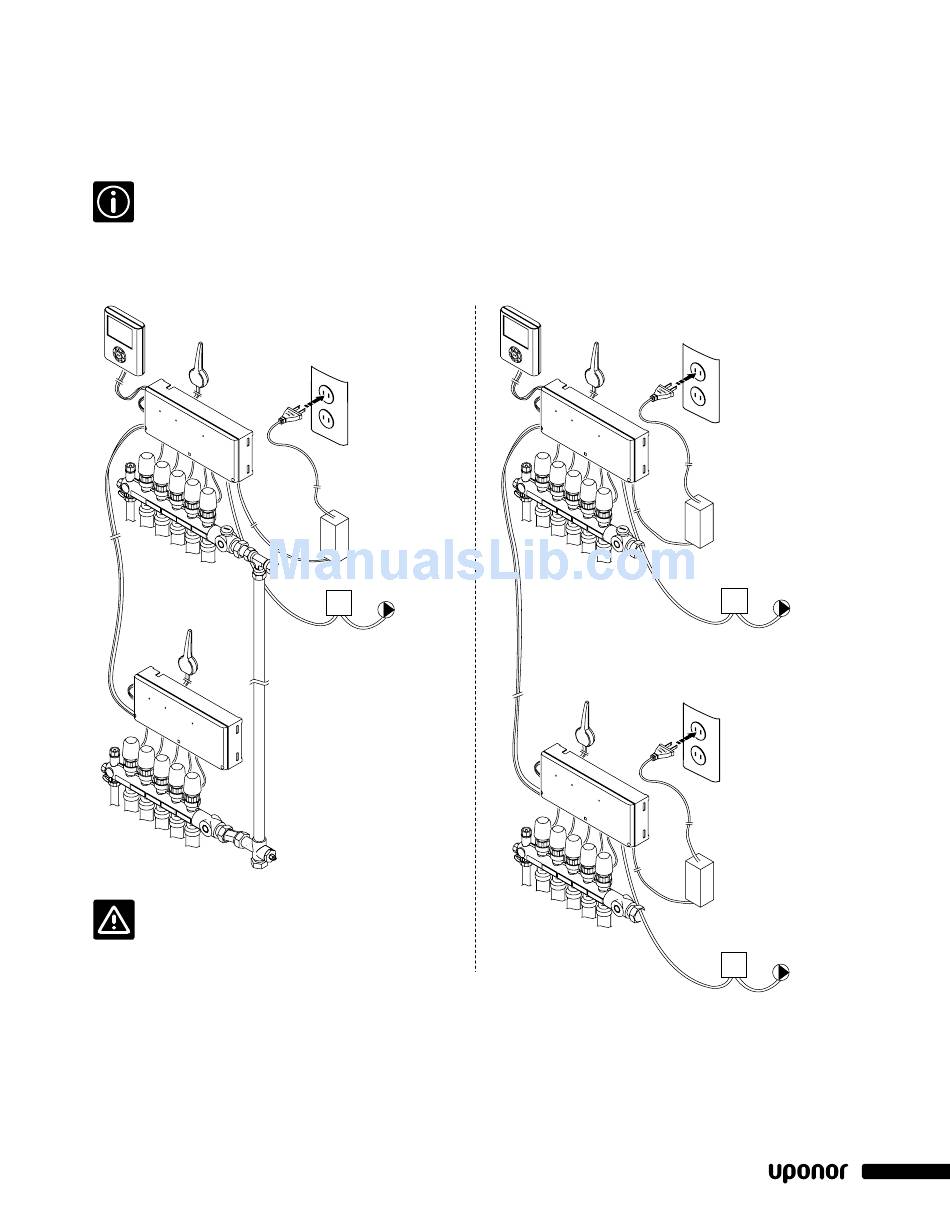

For a System with Several Base Units
Common Pump
Attention: If a common pump supports
multiple manifolds, a pump relay can be
connected to the closest base unit. See the
circulation pump supplier documentation
before performing the connection.
Uponor Climate Co ˘ ntrol™ Zoning System Installation Guide
Power Supply
Pump Relay
Pump
Individual Pumps
Power Supply
Pump Relay
Power Supply
Pump Relay
Pump
Pump
