Resetting the Base Unit
Resetting the base unit will cancel all channel
registrations, allowing the user to change all
the registrations.
1. Press the Test button for 10 seconds.
2. The Test LED flashes for at least two seconds,
then all LEDs will turn off (except the power LED).
All parameters are erased.
3. New installation and registration after reset
is necessary.
Uponor Climate Co ˘ ntrol™ Zoning System Installation Guide

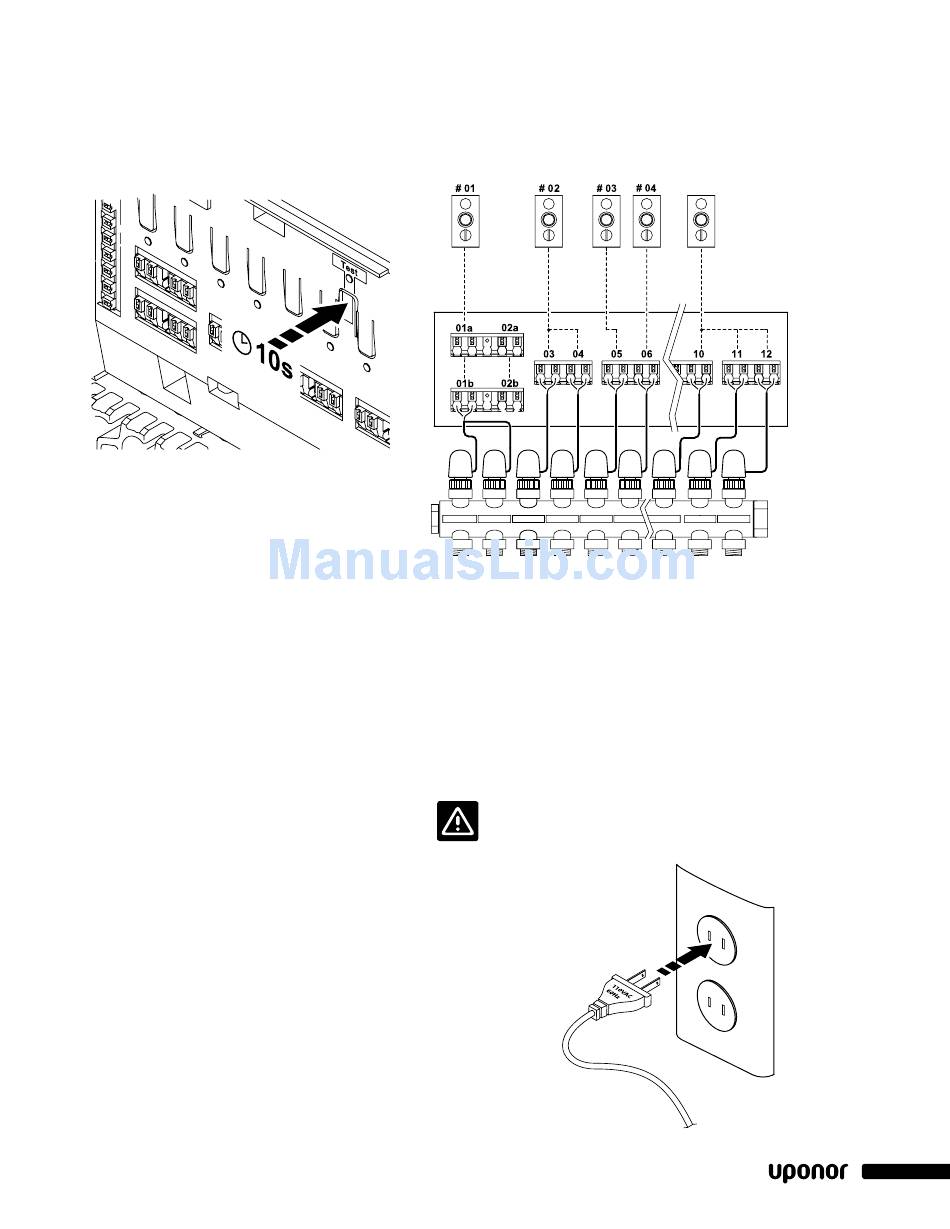

Installation Example
Zones
Channels
• Thermostat/Zone #01 controls two actuators
connected to channels 1a and 1b.
• Channel 2a and 2b are not used in this diagram.
• Thermostat/Zone #02 controls two actuators
connected to channels 3 and 4.
• Thermostat/Zone #03 controls one actuator
connected to channel 5.
• Thermostat/Zone #04 controls one actuator
connected to channel 6.
• Thermostat/Zone #10 controls three actuators
connected to channels 10, 11 and 12.
Warning: Disconnect the power before
installing or changing the device wiring.
Powering the Base Unit
• Check the actuators and antenna to
ensure that the wiring is complete.
• Check that the power compartment
lid is closed.
• Connect the power
supply plug into the
electrical outlet.
