Interface Bracket Installation

Before beginning the installation:
1. Select the mounting location of the interface.
The interface on a wall or on the cover of the
base unit.
2. Obtain installation report.
3. See wiring diagram in Section 12.
4. Disconnect the power to the base unit.
5. Open the base unit cover.

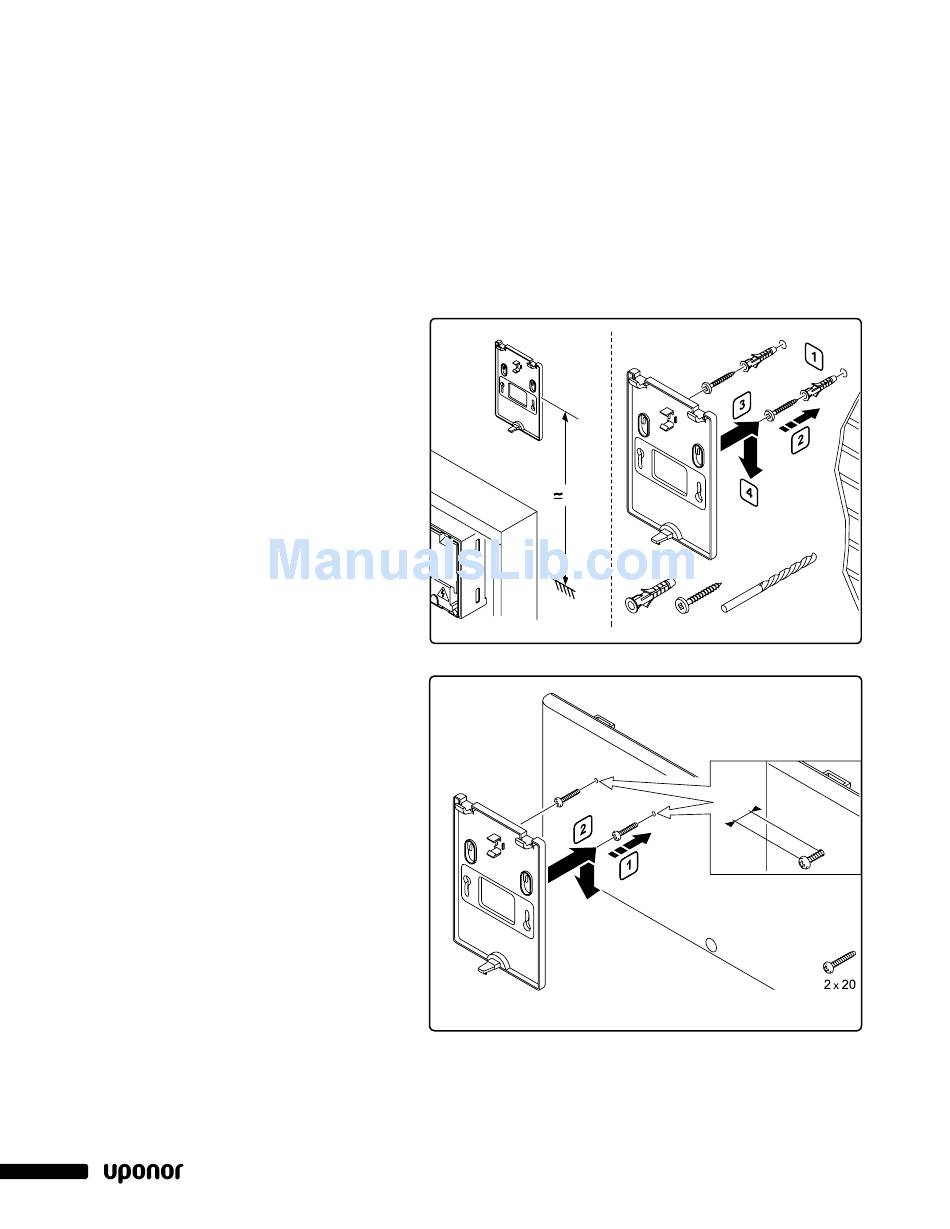

Interface Bracket Wall Mounting
Mount the bracket at approximately
eye level.
1. Hold bracket to wall; mark
mounting-hole locations on the
wall with a pencil.
2. Drill the wall.
3. Press the anchor into the hole.
4. Attach the interface brackets to the
wall with screws.
Interface Bracket Mounting
on the Base Unit
1. Fix screws on the bracket cover.
(Use cover marking as a guide.)
2. Let the screws protrude slightly
from the base unit.
2. Hang the bracket on the screws.
18
5 feet
