Wiring and Programming the Interface

Do not remove the yellow data stick from the interface
before powering up and setting the language.

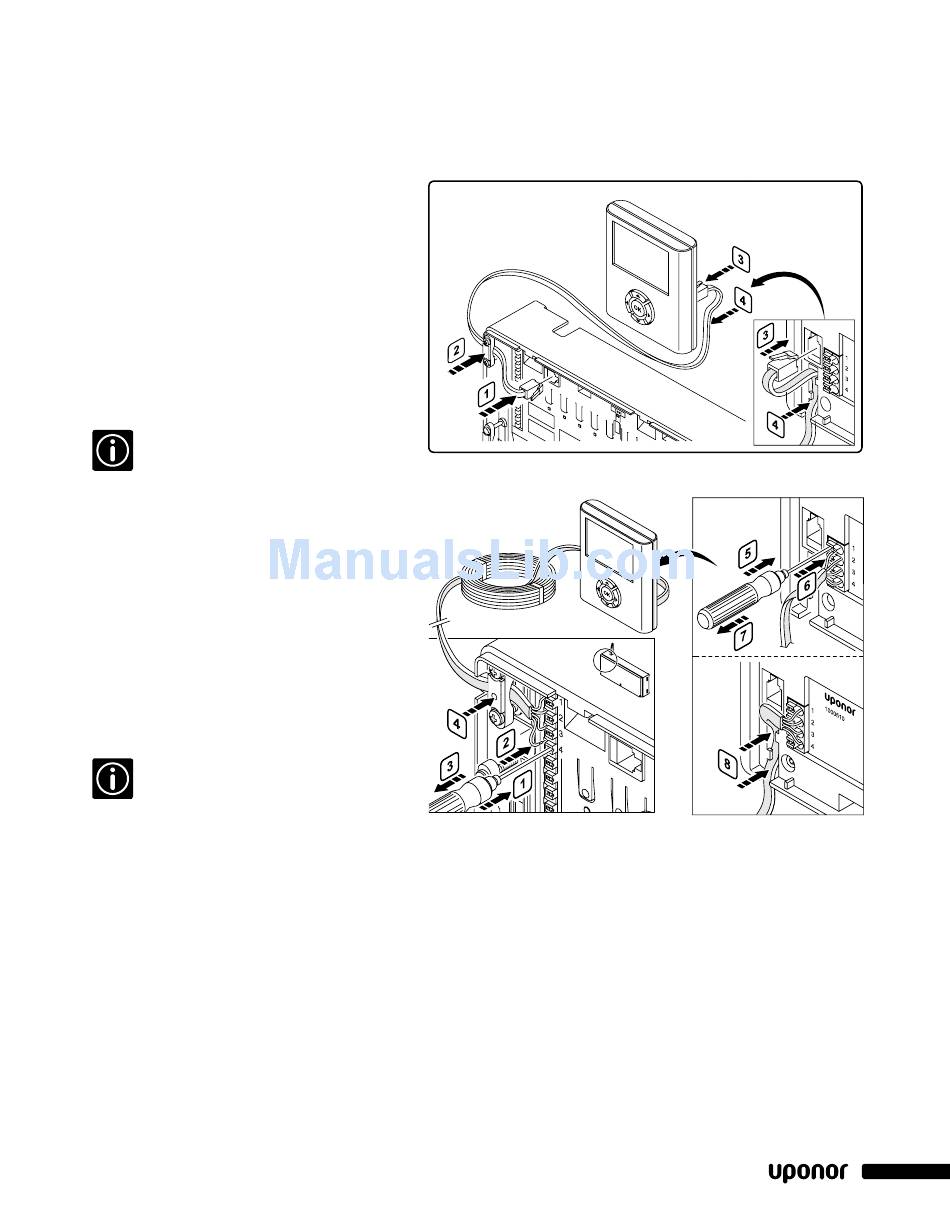

Wiring the Interface
If the interface is located less than 6 feet from the
controller, use the cable (interface to base unit) fitted
with RJ 9 connectors at each end.
1. Connect the RJ 9 connector into the base unit #1.
2. Secure the cable in the clamp.
3. Connect the RJ 9 connector in the back of
the interface.
4. Secure the cable in the cable guide.
If the interface is located more than 6 feet away from the
controller, use the installation cable.
Wiring is polarized. Connect terminal 1 on the
base unit to terminal 1 on the interface, etc.
Base Unit
1. Without turning, press with a small screwdriver on the
button of the terminal to insert or remove a wire.
2. Insert a wire in the quick connector.
3. Remove the screwdriver.
4. Secure the cable in the clamp.
Interface I-75
5. Without turning, press with a small screwdriver on the
button of the terminal to insert or remove a wire.
6. Insert in the quick connector on terminal.
7. Remove the screwdriver.
Release quick connector button.
8. Secure the cable in the cable guide.
Maximum cable length: 60 feet
Uponor Climate Co ˘ ntrol™ Zoning System Installation Guide
19
