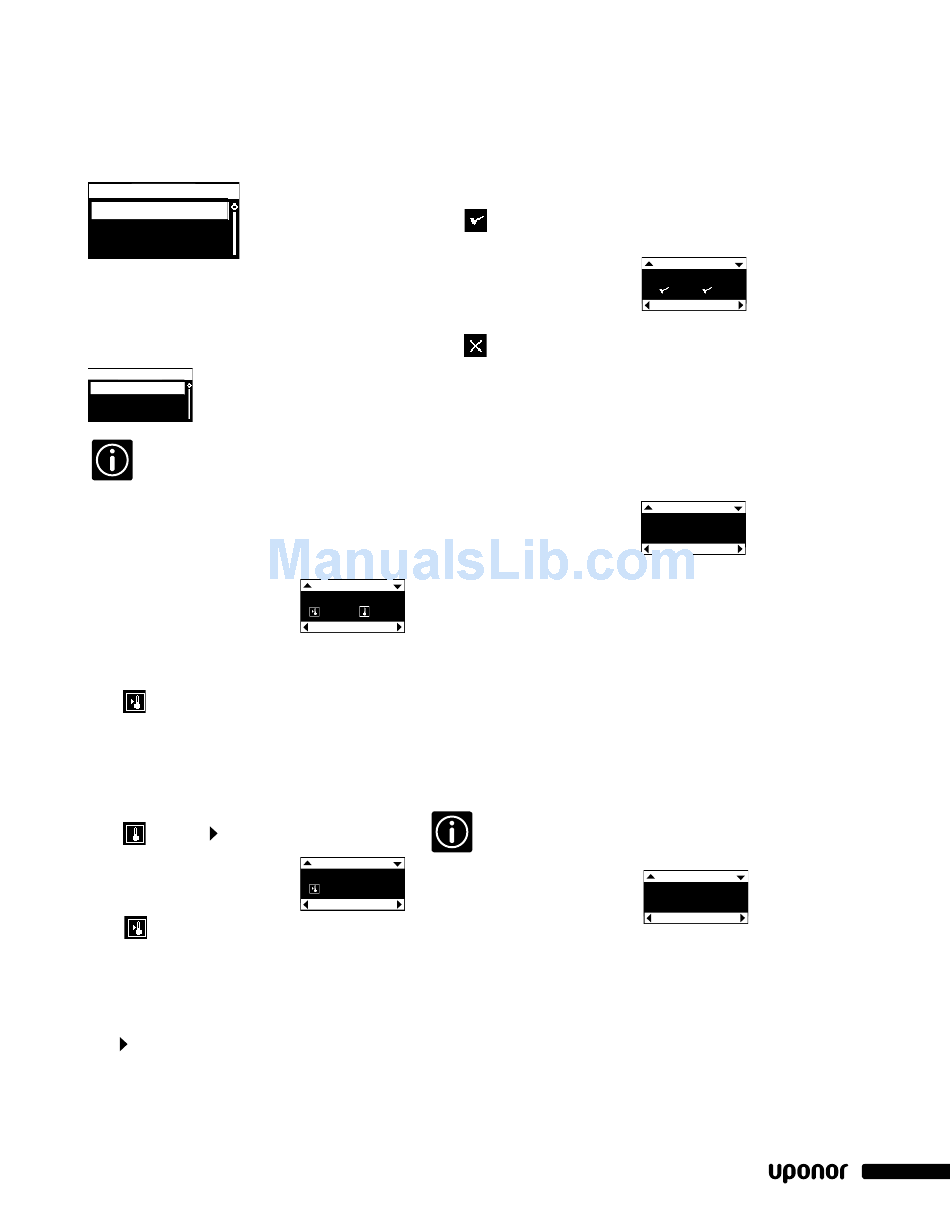

Information Menu

The Information menu provides information about rooms,
alarms/error messages and settings.
Information
Rooms
Alarms
System
Information Menu: Room Information
>
1. Uponor screen Main Menu
Room List
>
2. Select the desired room.
1.02 Living
>
1.07 Gym
Press OK.
The number at the beginning of the room name
on the display means: First digit: base unit.
Second and third digits: number of the first
channel controlled by this thermostat
(01, 02, 03, etc.). If several terminals are
controlled by the thermostat, only the lowest
terminal number is displayed.

Room Temperature

When room
information is
accessed, the screen displays room
setpoint and measured temperature.
The temperature setpoint is 69.8°F.
If the temperature set on the thermostat
is outside the allowed temperature range
for the room, the limitation temperature
will be displayed as setpoint.
The measured temperature is 70.16°F.
>
3. to open the next screen.

ECO (Economy)

This screen displays
the temperature
setting for the room when it is in ECO
mode. (Current setting is 66.2°F.)
Current status:
COMF: Comfort mode.
Status
ECO: Economy mode
>
4. to open the next screen
Uponor Climate Co ˘ ntrol™ Zoning System Installation Guide

Battery and Communication Status

Battery and communication status are indicated
with a √ or X.
> >
Information Rooms

Thermostat and Actuator Status

1.02 Living
Set Point Measured
69.8˚F 70.16˚F
More

Actuator Status

1.02 Living
ECO Temp Status
66.2˚F COMF
More
Actuator
• Battery: The batteries are
sufficiently charged.
• Signal: Radio signal from the
thermostat
is good.
• Battery: The batteries are low.
• Signal: Radio signal from the
thermostat and the antenna is faulty.
Yes: The thermostat is calling for heat.
Statcall
No: The thermostat is reporting that the
room temperature is satisfied.
Open: The actuators
are powered
Act.
and open or opening.
Closed: There is no power to the
actuators and they are closed
or closing.
The minimum temperature setpoint of
Min
the room is set at 53.6°F.
The maximum temperature setpoint of
Max
the room is set at 78.8°F.
This screen is only displayed during installation.
OK: Normal
operation
Alarm: A short circuit or similar problem
is reported.
1.02 Living
Battery Signal
More
1.02 Living
StatCall: No Act.: Closed
Min: 53.6˚F Max: 78.80
More
1.02 Living
Actuator: Alarm
More
