Register Room Thermostats

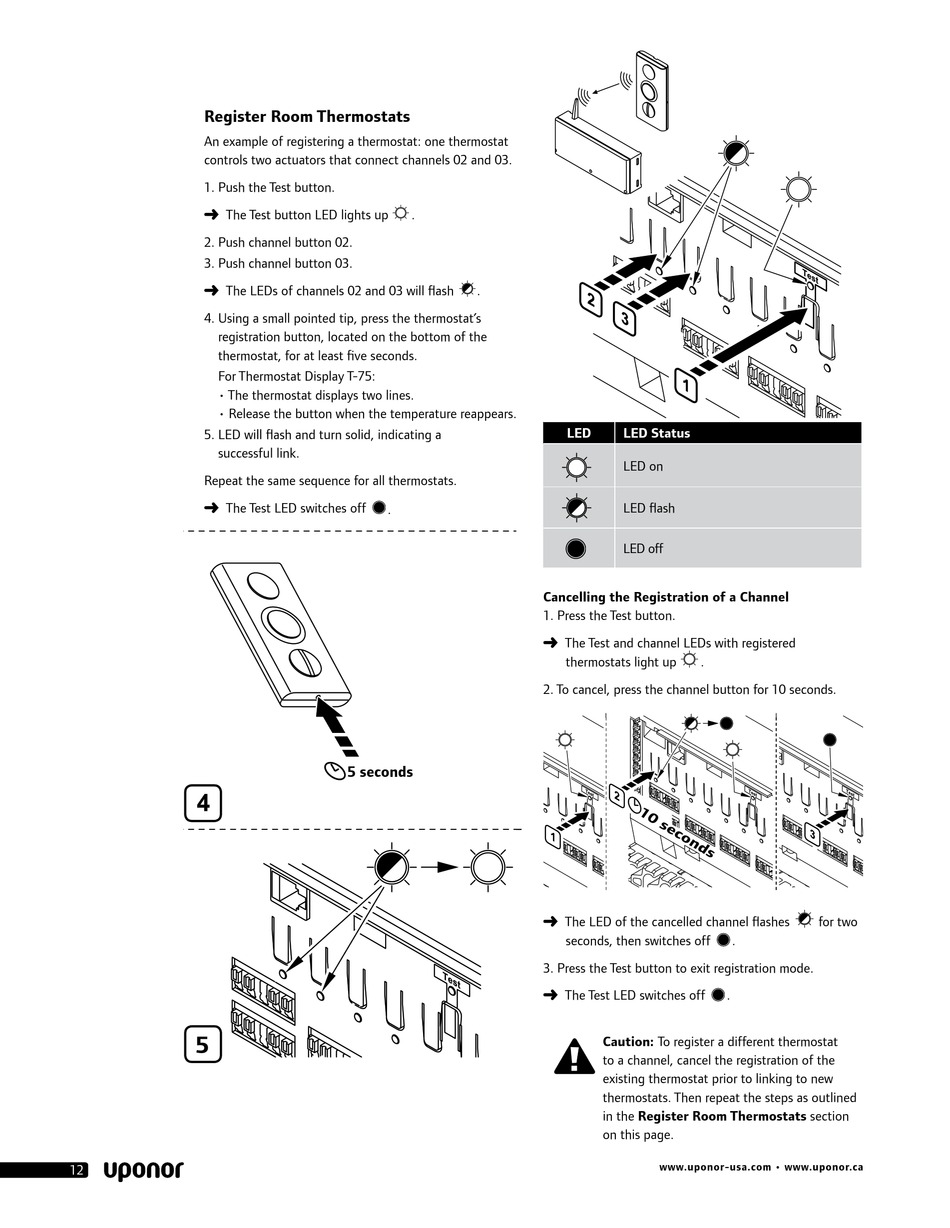

An example of registering a thermostat: one thermostat
controls two actuators that connect channels 02 and 03.
1. Push the Test button.
� The Test button LED lights up
2. Push channel button 02.
3. Push channel button 03.
� The LEDs of channels 02 and 03 will flash
4. Using a small pointed tip, press the thermostat's
registration button, located on the bottom of the
thermostat, for at least five seconds.
For Thermostat Display T-75:
• The thermostat displays two lines.
• Release the button when the temperature reappears.
5. LED will flash and turn solid, indicating a
successful link.
Repeat the same sequence for all thermostats.
� The Test LED switches off
5
12
.
.
.
5 seconds
LED LED Status
LED on
LED flash
LED off
Cancelling the Registration of a Channel
1. Press the Test button.
�
The Test and channel LEDs with registered
thermostats light up .
2. To cancel, press the channel button for 10 seconds.
� The LED of the cancelled channel flashes
seconds, then switches off
3. Press the Test button to exit registration mode.
�
The Test LED switches off
Caution: To register a different thermostat
to a channel, cancel the registration of the
existing thermostat prior to linking to new
thermostats. Then repeat the steps as outlined
in the Register Room Thermostats section
on this page.
