Section 3
Base Unit Installation

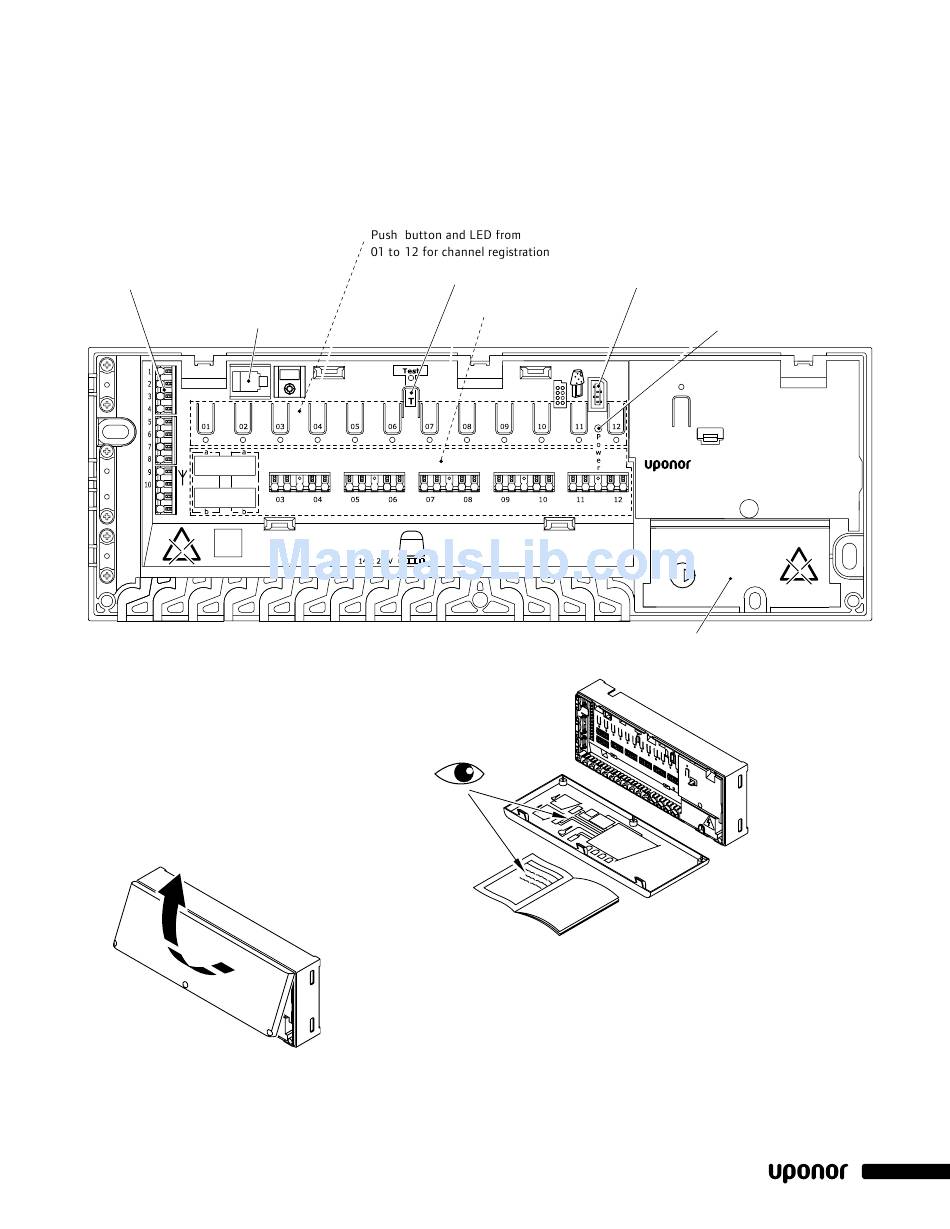

Base Unit Diagram

Terminal block for connection
of antenna and extensions
for additional I-75 interface
Interface RJ 9
connector for I-75
01 02
110V

Preparation Before Installation

Review the wiring diagram located inside the base
unit cover.
Verify Contents
• Cordless electric drill
• 6mm (1¼") drill bit
• Small flathead screwdriver
• Phillips screwdriver
Uponor Climate Co ˘ ntrol™ Zoning System Installation Guide
Test button with LED
Quick connectors for
the actuators
110v/60Hz Compartment – Heat-demand Relay
Review Drawings
Review the drawings of the radiant floor heating system.
If the locations of the base units and thermostats are not
specified, determine the best positions.
• Install base unit with antenna close to each manifold.
• A 110VAC standard power receptacle is required for
the connection of the base unit.
• Protect the mounting locations for the Zoning System
from moisture.
• Use one thermostat for every zone with radiant
floor heating.
Socket for the connection
of the data stick
Power LED
A3601012 C-55
IP30
T55
Made in France
110V
