INSTALLING LOGS

WARNING:
Failure to position the parts in
accordance with these diagrams or failure to use
only parts may result in property damage or
personal injury.
CAUTION:
After installation and periodically
thereafter, check to ensure that no flame comes in
contact with any log. With the heater set to High (5),
check to see if flames contact any log. If so,
reposition logs according to the log installation
instructions in this manual. Flames contacting logs
will create soot.
All logs.
STEP 2: Install log 2 onto the two slots in middle plate.
www.PartsFor.com 1-800-446-1446
IMPORTANT: Make sure log does not cover any
burner ports (see Figure 13).It is very important to
install the logs exactly as instructed. Do not modify logs.
Only use logs supplied with the heater.
STEP 1: Install log 1 onto the two slots in the rear plate.
STEP 3: Insert the two pins on the bottom of log 3
into the two holes on firebox floor.
14
For replacement parts contact:

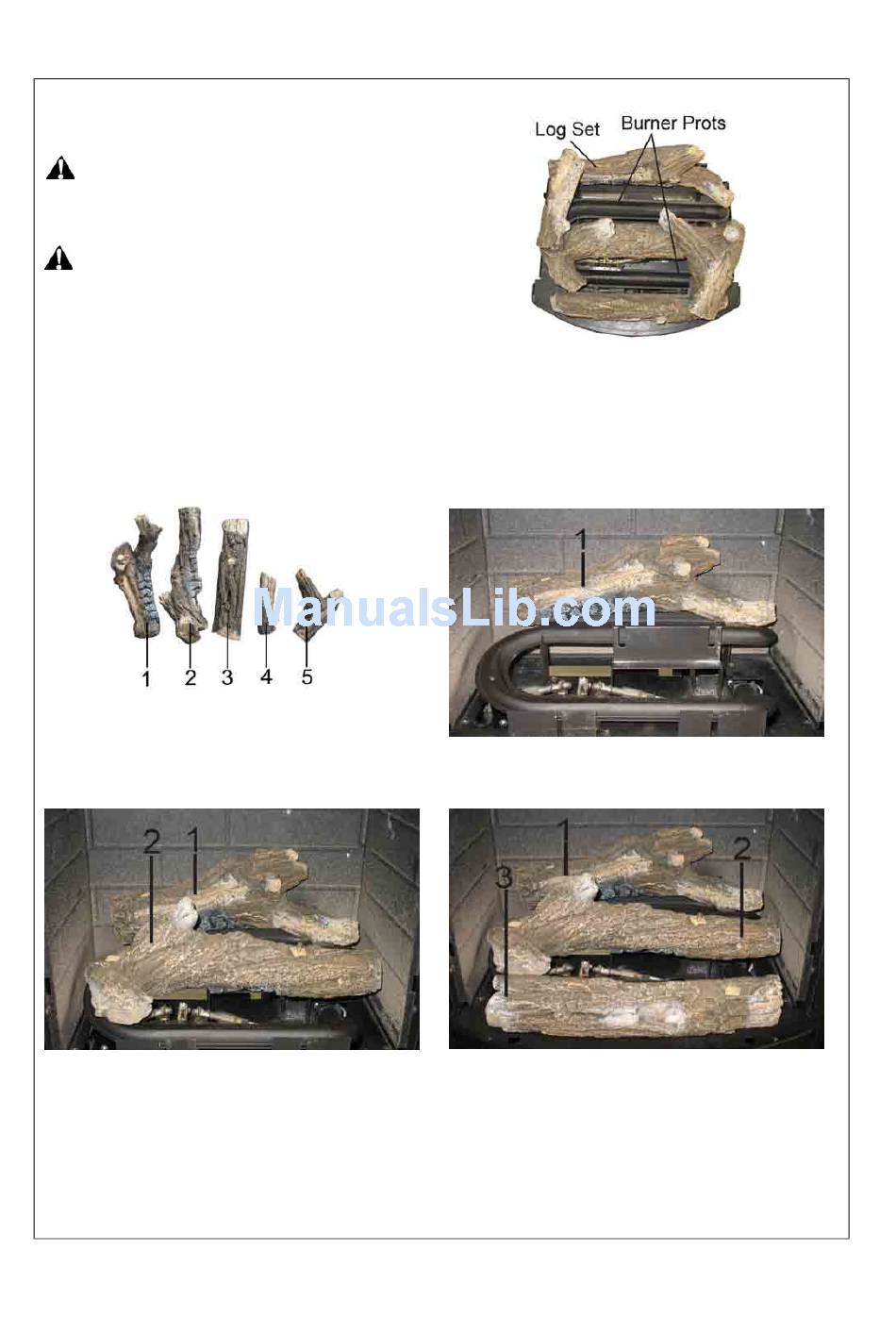

Figure 13 -Installing Log Set
1-866-607-2787
