INSTALLING LOGS

WARNING: Failure to position the parts
in accordance with these diagrams or failure
to use only parts specifically approved with this heater may
result in property damage or personal injury.
CAUTION: After installation, and
periodically thereafter, check to ensure that no flame comes
in contact with any log. With the heater set to high, check to
see if flames
contact any log. If so, reposition logs
according to the log installation instructions
in this manual. Flames contacting logs will
create soot.
All logs
STEP 2: Install log 2 onto the two slots in left plate
STEP 4: Install the recessed hole on the bottom of log 4
onto the pin on log 1 and place on log 3.

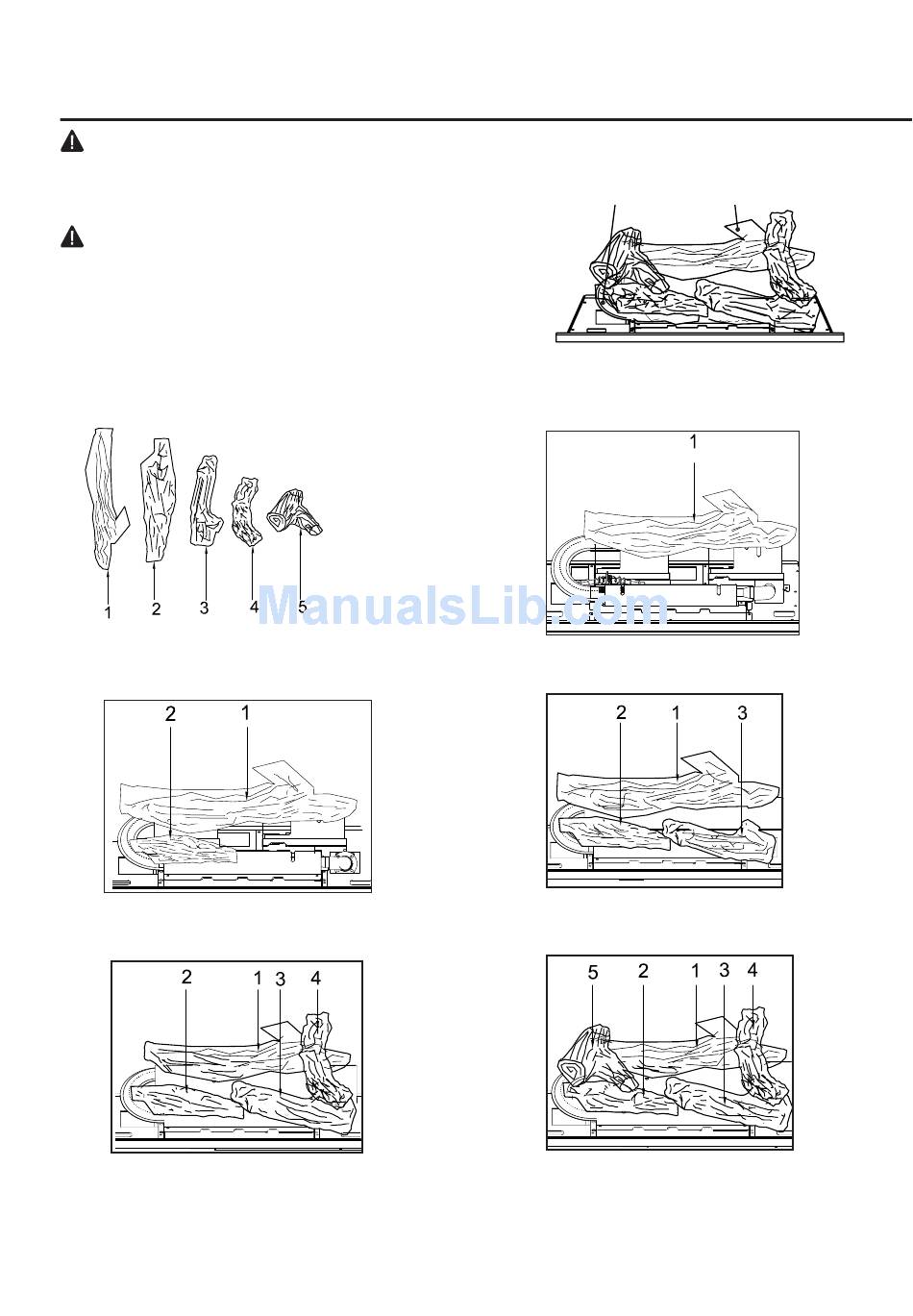

Fig. 18 - Installing Log Set
Burner Ports
IMPORTANT: Make sure log does not cover any burner ports
(see Fig. 18). It is very important to install the logs exactly as
instructed. Do not modify logs. Use only logs supplied with
heater.
STEP 1: Install log 1 onto the two slots in middle plate
STEP 3: Install log 3 onto the two slots in right plate
STEP 5: Install the recessed hole on the bottom of log 5
onto the pin on log 1 and place on log 2.
17
Log Set
