MANUAL LIGHTING PROCEDURE
(Match Light)
1.
Remove screen by lifting and pulling forward.
2.
Follow steps 1 through 7 under MANUAL OPERATING Lighting Instructions.
3.
With Control Knob in PILOT position, strike match, and hold near pilot. Press in Control Knob; pilot should
light.
4.
Keep Control Knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release Control Knob.
5.
Make sure the fireplace screen is in place before operating fireplace.
INSPECTING BURNERS
Turn control knob to pilot position
1.
Inspect pilot flame and refer to Figure 38 and 39.
2.
·
Figure 15 shows a correct pilot flame pattern.
·
Figure 16 shows an incorrect pilot flame pattern. The
incorrect pilot flame is not touching the
thermocouple. This will cause the thermocouple
to cool. When the thermocouple cools, the heater
will shut down.
·
If the pilot flame is incorrect, as shown in Figure16.
Turn heater off (see To Turn Off Gas to Appliance,
page 16) See troubleshooting, page 19~21.
BURNER FLAME PATTERN
·
Figure 17 shows a correct burner flame pattern.
·
Figure 18 shows an incorrect burner flame pattern.
If burner flame is incorrect:
Turn heater off (see To Turn Off Gas to Appliance,
page 16) see Troubleshooting, Page 19~21.
Blower (OPTIONAL ACCESSORY)
Refer to model QEB100 manual.
www.PartsFor.com 1-800-446-1446
17
For replacement parts contact:

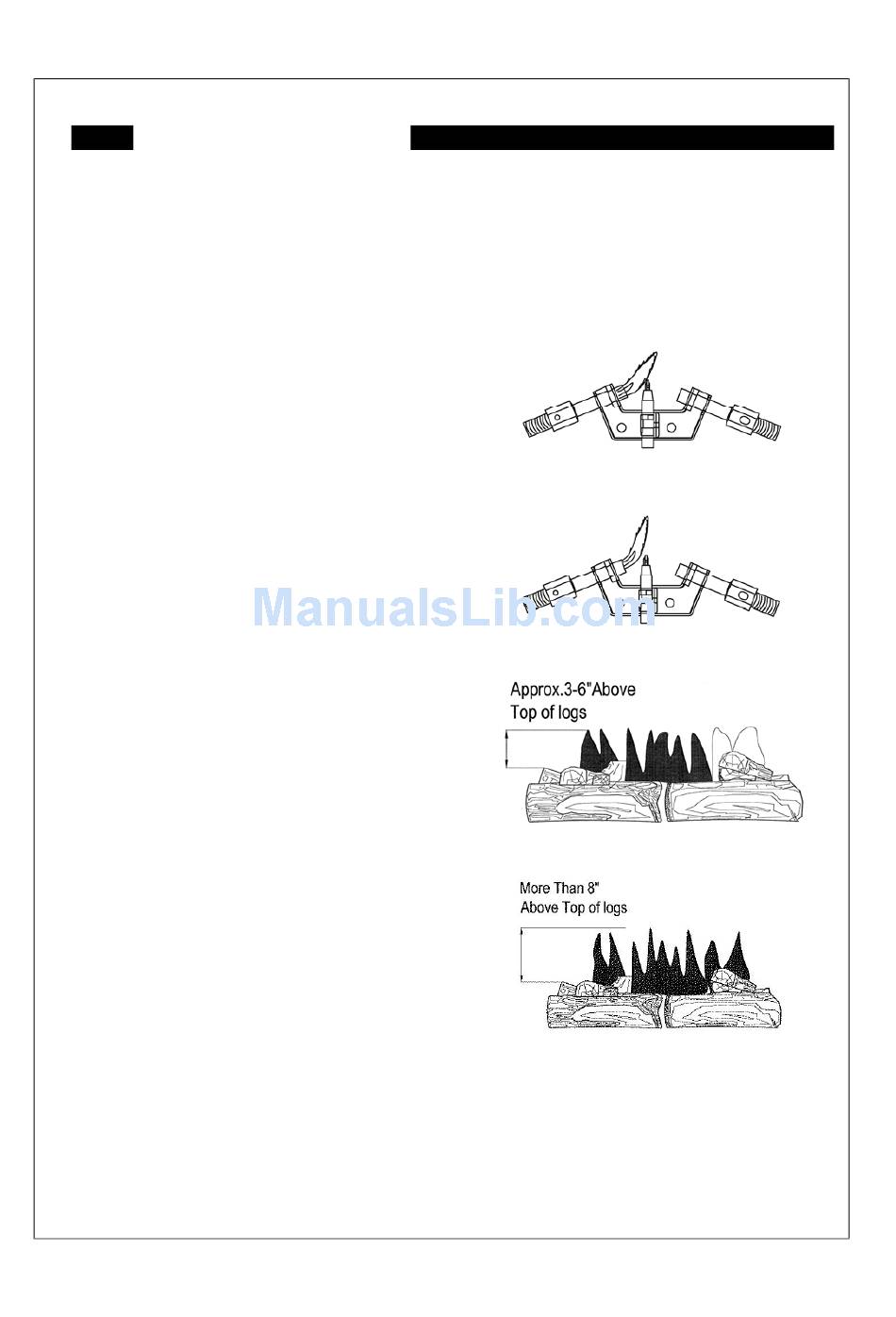

Figure 15 - Correct Pilot Flame Pattern
Figure 16 - Incorrect Pilot Flame Pattern
Figure 17 - Correct Flame Pattern with Control
Knob Set to High Flame
Figure 18 – Incorrect Flame Pattern with Control
Knob Set to High (5)
1-866-607-2787
