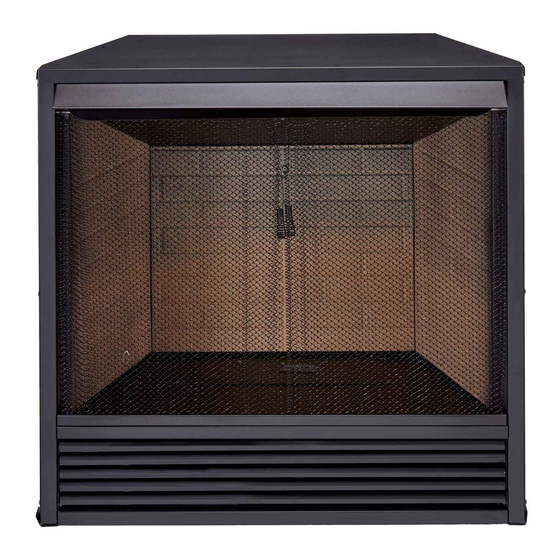

VENT-FREE GAS FIREBOX
OWNER'S OPERATION AND
INSTALLATION MANUAL
PC32VFC
PC36VFC
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable va-
pors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a quali-
fied installer, service agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Questions, problems, missing parts? Before returning to your retailer, call
our customer service department at 1-866-573-0674, 8:00 am - 4:30 pm CST,
Monday through Friday or email customerservice@usaprocom.com
MODELS
Advertisement
Table of Contents
Related Manuals for Procom PC32VFC
Summary of Contents for Procom PC32VFC
- Page 1 VENT-FREE GAS FIREBOX OWNER’S OPERATION AND INSTALLATION MANUAL MODELS PC32VFC PC36VFC WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. — Do not store or use gasoline or other flammable va- pors and liquids in the vicinity of this or any other appliance.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety ............3 Installation ..........7 Qualified Installing Agency ......4 Replacement Parts ........11 Combustion And Make-Up Air ....4 Technical Service........11 Specifications ..........5 Parts ............12 Product Features ........5 Accessories ..........13 Local Codes..........6 Warranty .......... -
Page 3: Safety
SAFETY IMPORTANT: Read this owner’s WARNING: Do not use a manual carefully and completely blower insert, heat exchange before trying to assemble, op- insert or other accessory not erate, or service this heater. approved for use with this heater. Improper use of this heater can WARNING: Due to high tem- cause serious injury or death peratures, the appliance should... -
Page 4: Qualified Installing Agency
SAFETY 1. Do not place Propane/LP supply tank(s) service technician to inspect the fireplace inside any structure. Propane/LP supply and to replace any part of the control sys- tank(s) must be placed outdoors. tem and any gas control which has been under water. -
Page 5: Specifications
SPECIFICATIONS Gas Line Knockout Model PC32VFC 2 " 18 " 19° 24 " 7 " 21 " 20 " 31 " 29 " 34 " PC36VFC 2 " 18 " 25° 28 " " 26 " 25 " 36 " 33 "... -
Page 6: Local Codes
LOCAL CODES Install and use heater with care. Follow all lo- State of Massachusetts: The installation cal codes. In the absence of local codes, use must be made by a licensed plumber or the latest edition of The National Fuel Gas gas fitter in the Commonwealth of Mas- Code, ANSI Z223.1/NFPA 54*. -
Page 7: Installation
INSTALLATION NOTICE: This fireplace is in- WARNING: Never install the tended for use as supplemental heater heat. Use this fireplace along • in a bedroom or bathroom with your primary heating sys- • in a recreational vehicle tem. Do not install this fireplace •... -
Page 8: Clearances To Combustibles
3/4" Clearance to Facia openings like louvered slots. " Clearance to Sides, Back and Top WARNING: Never modify or " (PC32VFC) " (PC36VFC) cover the louvered slots on the " (PC32VFC) " (PC36VFC) front of the firebox. - Page 9 Figure 4 for the rough opening. If installing in a corner, use dimensions shown in Figure 5 for the rough opening. The height is 23.66" (PC32VFC) and 28.11" (PC36VFC), which is the same as the wall opening above.
-
Page 10: Installing Hood
INSTALLATION INSTALLING HOOD Heat Top of Firebox CAUTION: Do not operate Insulation Board fireplace without hood in place. Hood 1. Align 3 holes in upper side of hood with holes in heat insulation board (see Fig- ure 6). 2. Insert screwdriver through hole in top fire- box panel to secure hood to heat insulation Firebox board with 3 screws (see Figure 6). -
Page 11: Optional Blower
• The replacement part number 1-866-573-0674 for referral information. TECHNICAL SERVICE You may have further questions about installation, operation, or troubleshooting. If so, contact ProCom Heating, Inc. at 1-866-573-0674. When calling, please have your model and serial numbers of your heater ready. www.usaprocom.com 200025-01A... -
Page 12: Parts
PARTS MODELS PC32VFC AND PC36VFC This list contains replaceable parts for your heater. When ordering replacement parts, follow the instructions listed under Replacement Parts on page 11 of this manual. PART NUMBER ITEM PC32VFC PC36VFC DESCRIPTION PC32VFC-132 PC36VFC-132 Screen Rod... -
Page 13: Accessories
ACCESSORIES Purchase heater accessories from your local dealer. If they can not supply accessories, contact ProCom Heating, Inc. at 1-866-573-0674 for information. Trim Kit - TK32-100B Blower Assembly - FIB100 Top Trim - FB32D104 Left/Right Trim - FB32D121 www.usaprocom.com 200025-01A... - Page 14 NOTES ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ www.usaprocom.com 200025-01A...
- Page 15 NOTES ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ www.usaprocom.com 200025-01A...
-
Page 16: Warranty
We make no other warranty, expressed or implied. LIMITED WARRANTY: ProCom Heating, Inc. warrants this product to be free from defects in materials and components for TWO (2) years from the date of first purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions, to make a claim under this warranty, the Bill of Sale or cancelled check must be presented.
