Procom EDS200T-HC Manual
  1. Manuals
  2. Brands
  3. Procom Manuals
  4. Indoor Fireplace
  5. EDS200T-HC
  6. Manual

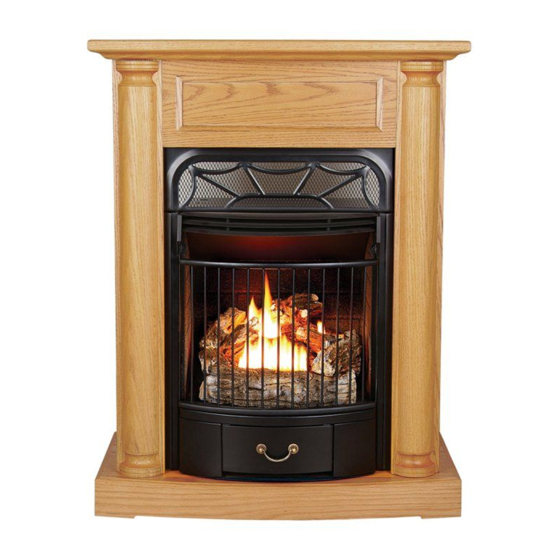

Procom EDS200T-HC Manual

Vent-free fireplace
Hide thumbs

Advertisement

Quick Links

Download this manual
VENT-FREE FIREPLACE
MODEL: EDP200T-O
EDP200T-C
EDS200T-HC
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL
INJURY, OR LOSS OF LIFE.
–
Do not store or use gasoline or other flammable vapors and liquids in vicinity of
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
· Do not try to light any appliance.
· Do not touch any electrical switch; do not use any phone in your building.
· Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
· If you cannot reach your gas supplier, call the fire department.
– Installation and service must be performed by a qualified installer, service agency
or the gas supplier.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is
installed. Provisions for adequate combustion and ventilation air must be provided.
Refer to Air For Combustion and Ventilation section on page 7 of this manual.
INSTALLER: DO NO DISCARD THIS MANUAL – LEAVE FOR HOMEOWNER'S FUTURE
REFERENCE.
This appliance may be installed in an aftermarket*, permanently located manufactured
(mobile) home, where not prohibited by local codes. This appliance is only for use with
the type of gas indicated on the rating plate. this appliance is not convertible for use
with other gases.
Questions about installation, operation, or troubleshooting? Before returning to your retailer, contact our customer
service department at 1-877-886-5989, 8:00 a.m.- 4:30p.m., EST, Monday-Friday or e-mail
customerservice@usaprocom.com
CAUTION – FOR YOUR SAFETY
WARNING: This appliance is
equipped for (Natural and
Propane) gas. Field conversion is
not permitted other than between
natural or propane gases.
ED200T651-0805

Advertisement

loading
Need help?

Need help?

Do you have a question about the EDS200T-HC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Procom EDS200T-HC

Summary of Contents for Procom EDS200T-HC

  • Page 1 Propane) gas. Field conversion is EDP200T-C not permitted other than between natural or propane gases. EDS200T-HC CAUTION – FOR YOUR SAFETY WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE.

  • Page 2: Table Of Contents

    Read instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty. PRODUCT SPECIFICATIONS MODEL EDP200T-C & EDP200T-O EDS200T-HC Input Rating 20,000 BTU/Hr 19,000 BTU/Hr 20,000 BTU/Hr...

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this heater. Improper use of this heater can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning. Only a qualified installer, service agent, or local gas supplier may install and service this product.
  • Page 4 Do not place Propane/LP supply tank(s) inside any structure. Place Propane/LP supply tank(s) outdoors. This heater shall not be installed in a bedroom or bathroom. Do not use this heater as a wood-burning heater. Use only the logs provided with the heater. Do not add extra logs or ornaments such as pine cones, vermiculite, or rock wool.
  • Page 5 PRODUCT FEATURES SAFETY PILOT This heater has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS/pilot is a required feature for vent-free room heaters. The ODS/pilot shuts off the heater if there is not enough fresh air. PIEZO IGNITION SYSTEM This heater is equipped with an electronic piezo control system.
  • Page 6 UNPACKING Remove top inner pack. Tilt carton so that heater is upright. Remove protective side packaging. Slide heater out of carton. Remove protective plastic wrap. Hold the screen lift and pull forward. Remove log set by cutting plastic ties. Carefully unwrap log. Check for any shipping damage.

  • Page 7: Air For Combustion And Ventilation

    AIR FOR COMBUSTION AND VENTILATION WARNING : This heater shall not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to insure proper fresh air for this and other fuel-burning appliances in your home. PRODUCING ADEQUATE VENTILATION The following are excerpts from National Fuel Gas Code, NFPA 54/ANSI Z 223.1,Section 5.3, Air for Combustion and Ventilation.
  • Page 8 Divide the space volume by 50 cubic feet to determine the maximum BTU/hr the space can support. (volume of space) ÷ 50 cu. ft. = (Maximum BTU/hr the space can support) Example: 2560 cu. ft. (volume of space) ÷ 50 cu. ft.= 51.2 or 51,200(maximum BTU/hr the space can support) Add the BTU/hr of all fuel burning appliances in the space.

  • Page 9: Installation

    Ventilation Air From Outdoors Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent " openings: one within 12 of the ceiling and one " within 12 of the floor. Connect these items directly to the outdoors or spaces open to the outdoors.
  • Page 10 Minimum Wall and Ceiling Clearances (see Figure 4) Clearances from outermost point of fireplace to any combustible side wall should not be less than 12 inches. Clearances from the fireplace to the ceiling should not be less than 48 inches. Figure 4 –...
  • Page 11 INSTALLATION CONTINUED The installer must supply an external regulator. The external regulator will reduce incoming gas pressure. You must reduce incoming gas pressure to between 11 and 14 inches of water column for propane and between 5 and 10.5 inches of water column for natural gas.
  • Page 12 INSTALLATION CONTINUED CAUTION: Two gas line installations at the same time is forbidden. Do not open cover while the heater is running. Heater is pre-set at factory for propane gas, no changes are required for connecting to propane. Only a qualified installer or service technician can perform gas selection and connecting to gas supply.
  • Page 13 CHECKING GAS CONNECTIONS WARNING: Test all gas piping and connections for leaks after installing or servicing. Correct all leaks immediately. Pressure Testing Gas Supply Piping System Test Pressures In Excess Of ½ PSIG (3.5kPa) Disconnect heater with its appliance main gas valve (control valve) and equipment shutoff valve from gas supply piping system.
  • Page 14 INSTALLING LOGS WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts may result in property damage or personal injury. CAUTION: After installation and periodically thereafter, check to ensure that no flame comes in contact with any log.

  • Page 15: Operating Heater

    STEP 4: Insert the recessed hole on the bottom of log STEP 5: Insert the recessed hole on the bottom of log 5 4 onto the pin on log 1, with the other end of log 4 onto the pin on log 2, with the other end of log 5 placed placed on log 2, as shown.
  • Page 16 THERMOSTATIC CONTROL OPERATION The thermostatic control used on this model differs from standard thermostats. Standard thermostats simply turn the burner on and off. The thermostat used on this heater senses the room temperature. At times the room may exceed the set temperature. If so, the burner will shut off. The burner will cycle back on when room temperature drops below the set temperature.
  • Page 17 MANUAL LIGHTING PROCEDURE (Match Light) Remove screen by lifting and pulling forward. Follow steps 1 through 7 under MANUAL OPERATING Lighting Instructions. With Control Knob in PILOT position, strike match, and hold near pilot. Press in Control Knob; pilot should light.

  • Page 18: Cleaning & Maintenance

    CLEANING AND MAINTENANCE WARNING: Disconnect power before attempting any maintenance or cleaning to reduce the risk of fire, electric shook or personal injury. Turn off heater and let cool before cleaning. WARNING: Failure to keep primary air openings of burners clean may result in sooting and property damage.

  • Page 19: Troubleshooting

    TROUBLESHOOTING NOTE: Turn the control knob to “OFF” position first and wait for one minute. Then turn the control knob to the “ON” position. Please wait for one minute to allow valve to reset. WARNING: If you smell gas · Shut off gas supply.
  • Page 20 OBSERVED REMEDY POSSIBLE CAUSE PROBLEM ODS/pilot lights but 1. Control knob is not fully pressed in. Press in control knob fully. flame goes out when 2. Control knob is not pressed in long After ODS/pilot lights, keep control knob control knob is enough.
  • Page 21 OBSERVED REMEDY POSSIBLE CAUSE PROBLEM White powder 1. When heated, the vapors from furniture 1. Turn heater off when using furniture residue forming polish, wax, carpet cleaners, etc., turn polish, wax, carpet cleaner or similar within burner box into white powder residue. products.

  • Page 22: Replacement Parts

    REPLACEMENT PARTS NOTE: Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty. PARTS UNDER WARRANTY Contact authorized dealers of this product. If they can’t supply original replacement parts, call Customer Service toll free at 1-877-886-5989 for referral information. When calling Customer Service or your dealer, have ready: ·...
  • Page 23 PARTS LIST EDP200T-O & EDP200T-C This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 22 of this manual. KEY NO. PART NUMBER DESCRIPTION ED200T230 Burner Assembly NDD0308 DF ODS SIT545-200 T-Stat Valve AL092-01...
  • Page 24 PARTS LIST EDP200T-O & EDP200T-C This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 22 of this manual. Part Number Description EDP200T-O EDP200T-C ED200L7-01-O ED200L7-01-C ED200L14-05-O Decorative Column ED200L14-05-C Decorative Column ED200L7-03-O...
  • Page 25 EDP200T-O & EDP200T-C...
  • Page 26 PARTS LIST EDS200T-HC This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 22 of this manual. Key No. Part Number Description ED200L12-01 ED200L12-02 Panel ED200L12-03 Pedestal ED200L12-05 Right Panel...
