Dest IP Address
Dest IP Mask
4 . 4 . 4 T r a f f i c C o n t
4 . 4 . 4 T r a f f i c C o n
There are some limitations that transmitting and receiving packets through WLAN or VPN
tunnel cannot be controlled well in hardware. The function of Traffic Control is designed
specifically to customize firewall rule for managing the traffic in and out.

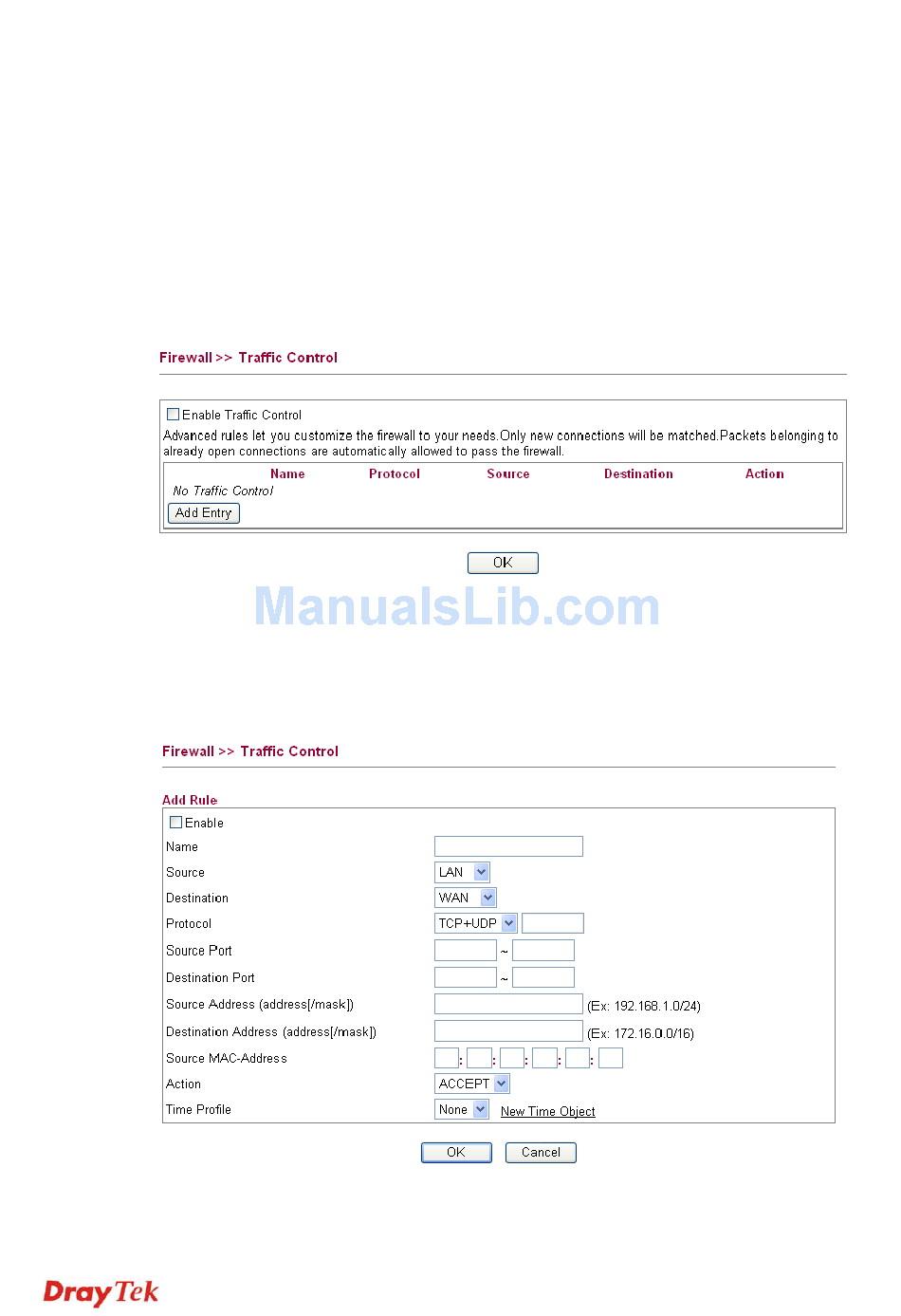

Enable Traffic Control
Add Entry
You are allowed to add many firewall rules for your request. Simply click Add Entry, the
following screen will be shown.
Enable
Name
destination IP address and destination IP mask fields that
appear.
Type the Dest IP Address here. This option is available
when you choose Host or Network as destination IP filter.
Type the Dest IP Mask here. This option is available only
when you choose Network as destination IP filter.
r o l
t r o l
Check the box to enable such function.
Click it add a new firewall rule.
Check the box to enable such rule.
Type a name of the rule for identification.
110
