Draytek Vigor2130 Series User Manual page 85

5 6 K B a
5 6 K B a
When the WAN connection is broken, router will try to keep the connection with 56K mode if
it is enabled. After WAN connection is recovered, router will disconnect the 56K connection
automatically.

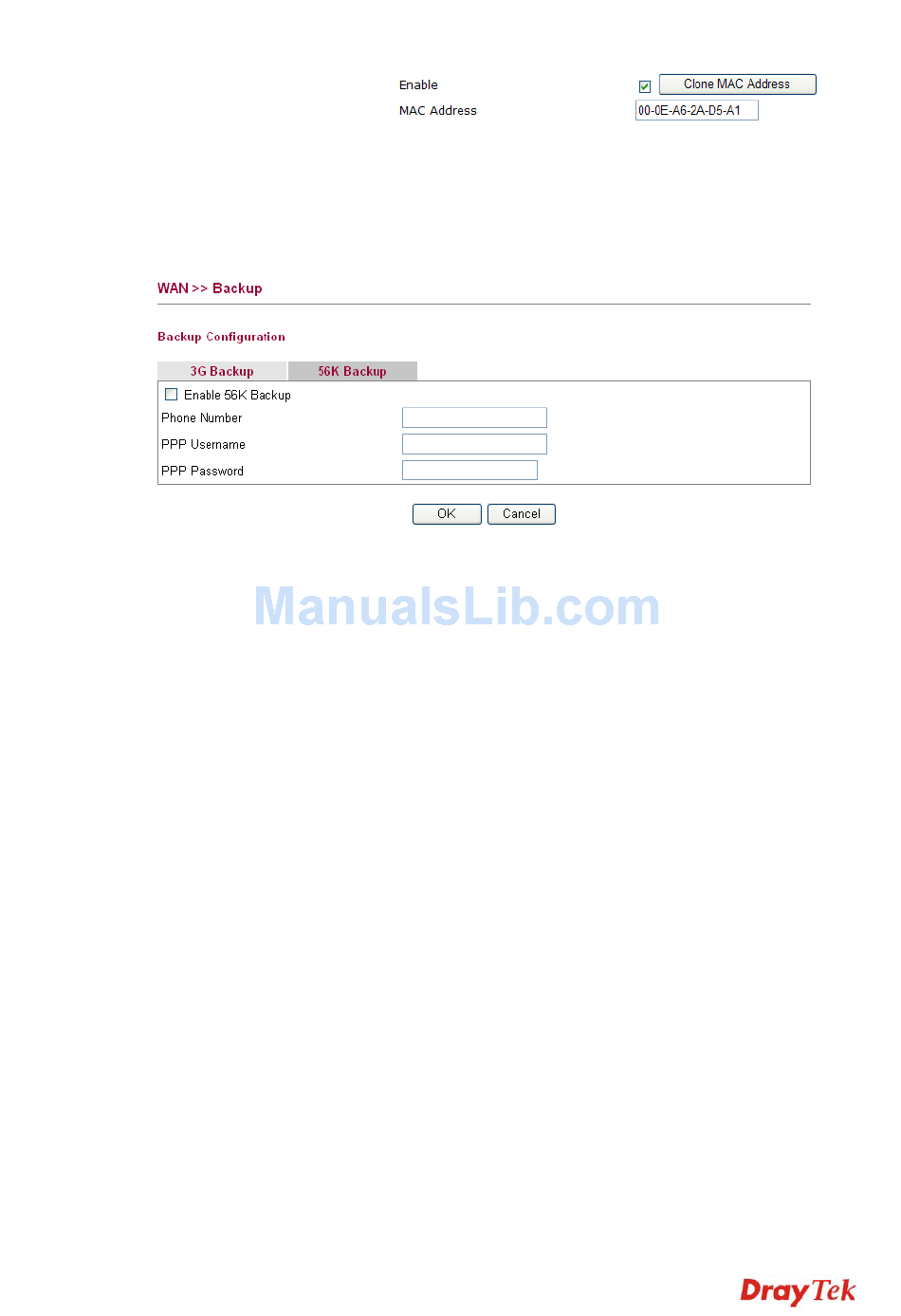

Enable 56K Backup
Phone Number
PPP Username
PPP Password
Vigor2130 Series User's Guide
c k u p
c k u p
Check this box to enable such function.
Type the phone number offered by the ISP for dial-out
connection.
Type the PPP username (optional).
Type the PPP password (optional).
77
