Draytek Vigor2130 Series User Manual page 29

P P P o E
P P P o E
PPPoE stands for Point-to-Point Protocol over Ethernet. It relies on two widely accepted
standards: PPP and Ethernet. It connects users through an Ethernet to the Internet with a
common broadband medium, such as a single DSL line, wireless device or cable modem. All
the users over the Ethernet can share a common connection.
PPPoE is used for most of DSL modem users. All local users can share one PPPoE connection
for accessing the Internet. Your service provider will provide you information about user name,
password, and authentication mode.

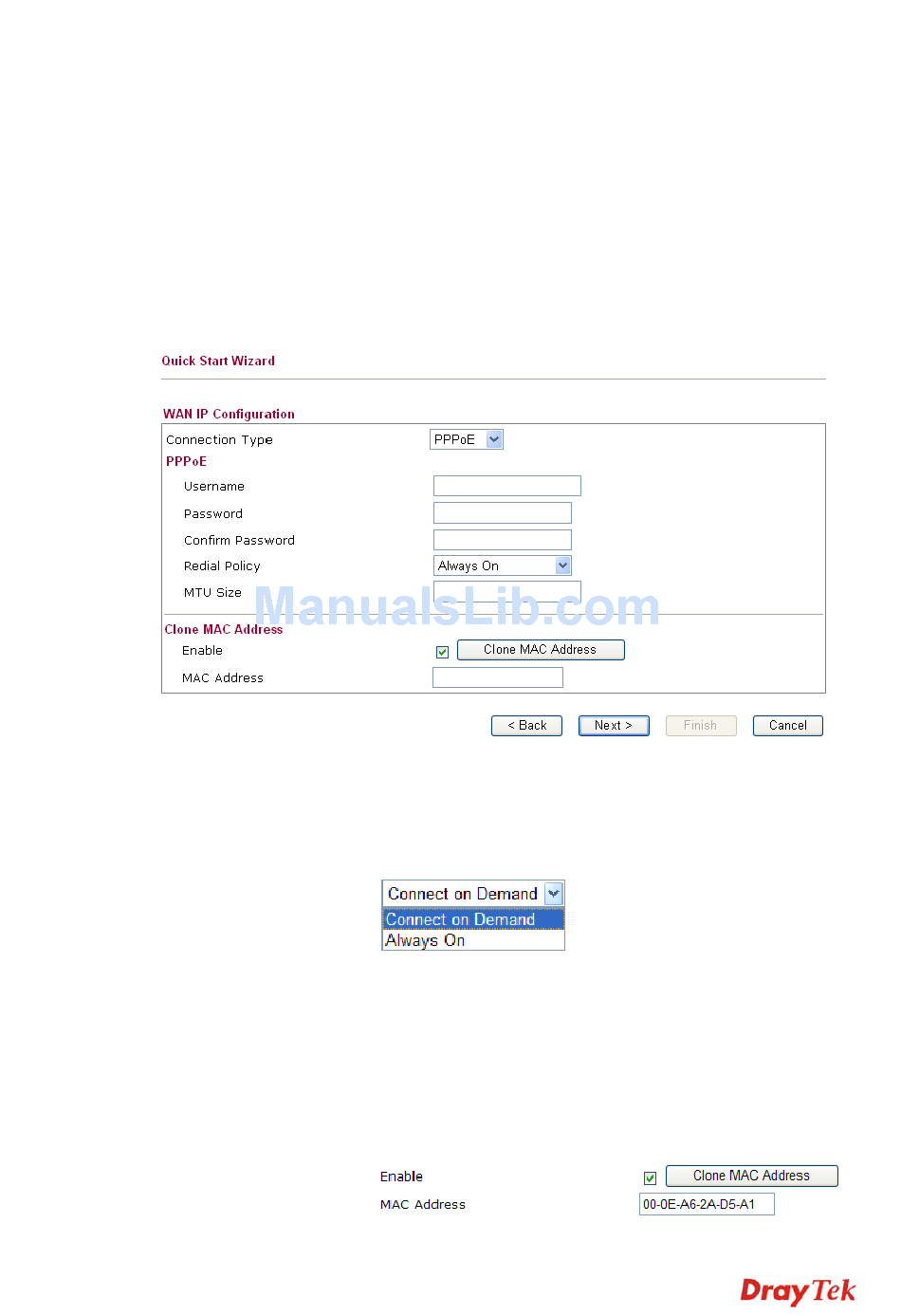

If your ISP provides you the PPPoE connection, please select PPPoE for this router. The
following page will be shown:
User Name
Password
Redial Policy
MTU Size
Enable
Clone MAC Address
Vigor2130 Series User's Guide
Assign a specific valid user name provided by the ISP.
Assign a valid password provided by the ISP.
If you want to connect to Internet all the time, you can choose
Always On. Otherwise, choose Connect on Demand.
It means Max Transmit Unit for packet. The default setting will
be specified by the system automatically. Therefore, keep this
field in blank.
The router will detect the MAC address automatically. Or,
check the box to enable MAC address cloning.
It is available when the box of Enable is checked. Click Clone
PC Address. The result will be displayed in the field of MAC
Address.
21
