After finishing the settings here, please click Next.
P P P P T T P P / / L L 2 2 T T P P

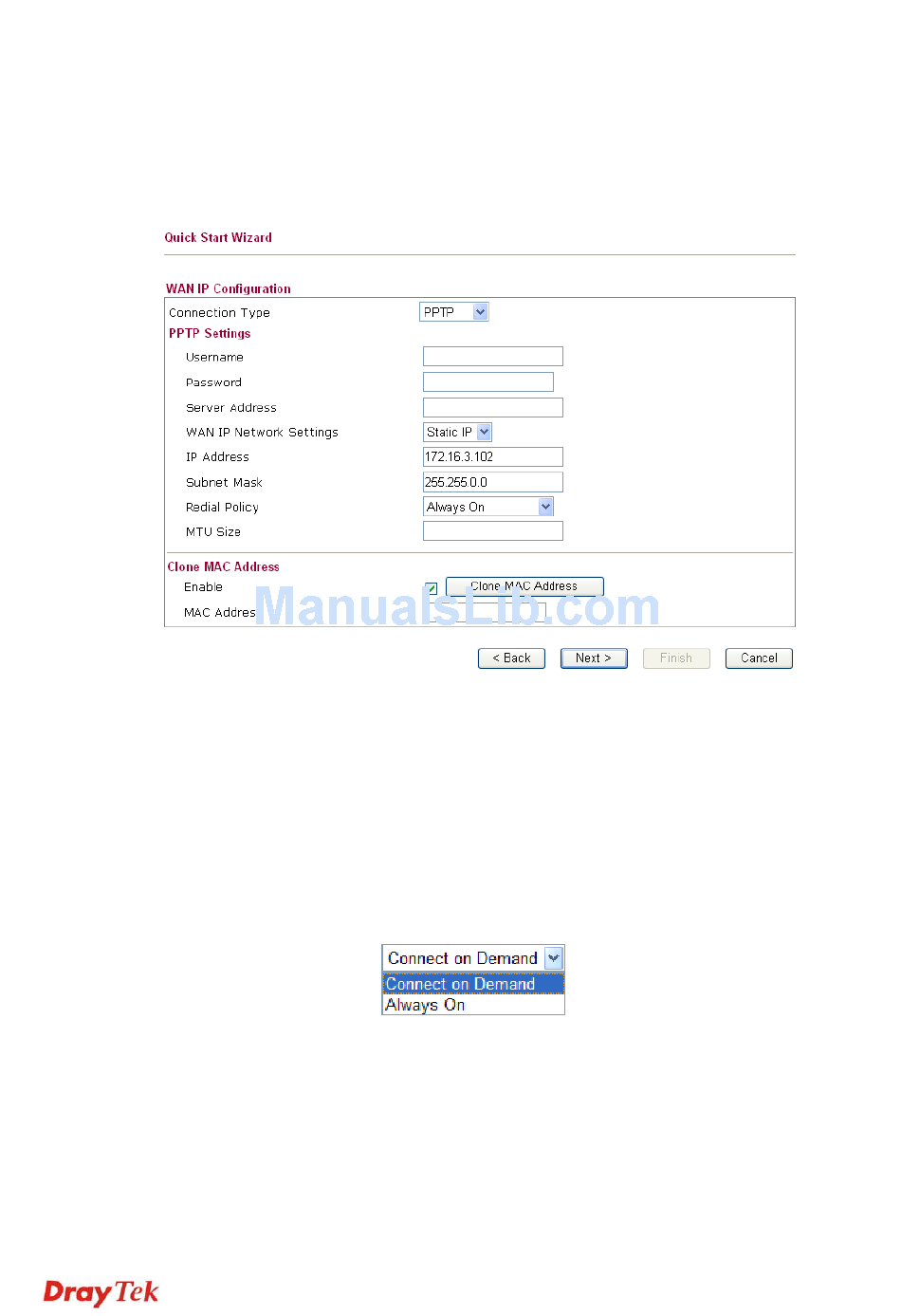

If you click PPTP/L2TP as the protocol, please manually enter the Username/Password
provided by your ISP and all the required information.
User Name
Password
Server Address
WAN IP Network Settings You can choose Static IP or DHCP as WAN IP network setting.
IP Address
Subnet Mask
Redial Policy
MTU Size
Enable
Clone MAC Address
Assign a specific valid user name provided by the ISP.
Assign a valid password provided by the ISP.
Specify the IP address of the PPTP server.
Type the IP address if you choose Static IP as the WAN IP
network setting.
Type the subnet mask if you chose Static IP as the WAN IP.
If you want to connect to Internet all the time, you can choose
Always On. Otherwise, choose Connect on Demand.
It means Max Transmit Unit for packet. The default setting will
be specified by the system automatically. Therefore, keep this
field in blank.
The router will detect the MAC address automatically. Or,
check the box to enable MAC address cloning.
It is available when the box of Enable is checked. Click Clone
PC Address. The result will be displayed in the field of MAC
Address.
