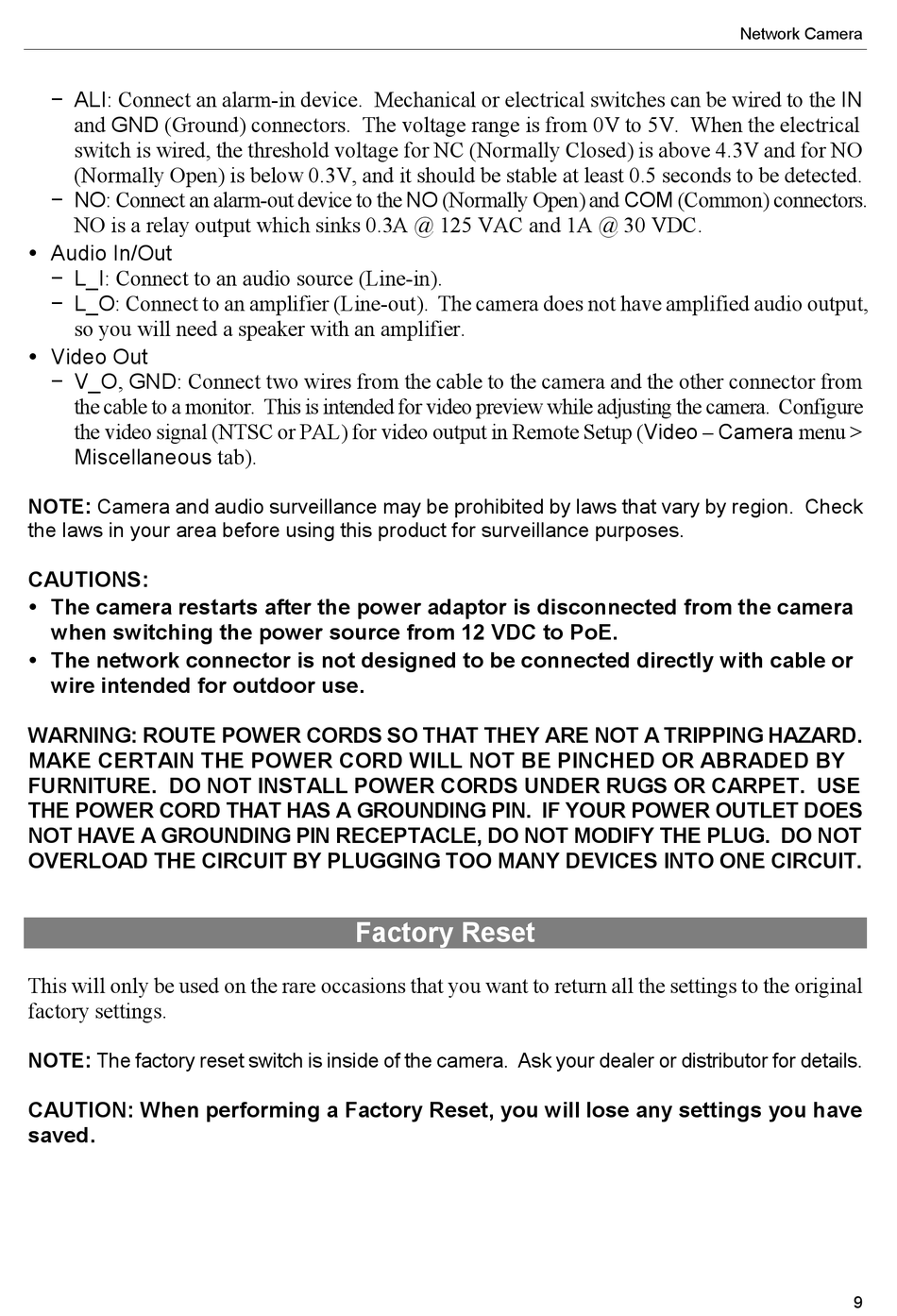

− ALI: Connect an alarm-in device. Mechanical or electrical switches can be wired to the IN
and GND (Ground) connectors. The voltage range is from 0V to 5V. When the electrical
switch is wired, the threshold voltage for NC (Normally Closed) is above 4.3V and for NO
(Normally Open) is below 0.3V, and it should be stable at least 0.5 seconds to be detected.
− NO: Connect an alarm-out device to the NO (Normally Open) and COM (Common) connectors.
NO is a relay output which sinks 0.3A @ 125 VAC and 1A @ 30 VDC.
 Audio In/Out
− L_I: Connect to an audio source (Line-in).
− L_O: Connect to an amplifier (Line-out). The camera does not have amplified audio output,
so you will need a speaker with an amplifier.
 Video Out
− V_O, GND: Connect two wires from the cable to the camera and the other connector from
the cable to a monitor. This is intended for video preview while adjusting the camera. Configure
the video signal (NTSC or PAL) for video output in Remote Setup (Video – Camera menu >
Miscellaneous tab).
NOTE: Camera and audio surveillance may be prohibited by laws that vary by region. Check
the laws in your area before using this product for surveillance purposes.
CAUTIONS:
 The camera restarts after the power adaptor is disconnected from the camera
when switching the power source from 12 VDC to PoE.
 The network connector is not designed to be connected directly with cable or
wire intended for outdoor use.
WARNING: ROUTE POWER CORDS SO THAT THEY ARE NOT A TRIPPING HAZARD.
MAKE CERTAIN THE POWER CORD WILL NOT BE PINCHED OR ABRADED BY
FURNITURE. DO NOT INSTALL POWER CORDS UNDER RUGS OR CARPET. USE
THE POWER CORD THAT HAS A GROUNDING PIN. IF YOUR POWER OUTLET DOES
NOT HAVE A GROUNDING PIN RECEPTACLE, DO NOT MODIFY THE PLUG. DO NOT
OVERLOAD THE CIRCUIT BY PLUGGING TOO MANY DEVICES INTO ONE CIRCUIT.
This will only be used on the rare occasions that you want to return all the settings to the original
factory settings.
NOTE: The factory reset switch is inside of the camera. Ask your dealer or distributor for details.
CAUTION: When performing a Factory Reset, you will lose any settings you have
saved.

Factory Reset

Network Camera
9
