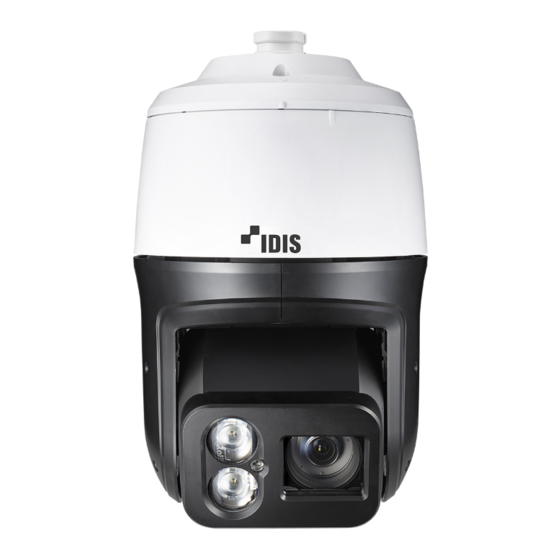

- Page 1 DC-S Series Installation Manual DC-S6286HRXL DC-S6286HRXL-A Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 Before reading this manual Warning: This product emits infrared light. Do not look into the IR LED. FCC Compliance Statement THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
Part 1 – Introduction Product Features • Multi-streaming for high-resolution and high-quality video monitoring and simultaneous recording in real- time as well as flexible configurations for those DC-S6286HRXL / DC-S6286HRXL -A is an IP-based • Supports H. 265, H.264 video compression and network camera that compresses and transmits video M-JPEG still image compression algorithms over ethernet. - Page 7 Part 1 – Introduction • Up to 10 simultaneous remote monitoring • Multiple event detection modes connections • Backup storage on a microSD memory card as • IP filtering, HTTPS, SSL, and configurable user a safeguard against data loss during network authority levels for greater security interruptions •...
-
Page 8: Accessories
Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. Network Camera Mount Adapter, Screws Allen Wrench Ferrite Core Waterproofing accessories (Bushing and Glue) -
Page 9: Overview
Part 1 – Introduction Overview • Body Assembly Standards For tightening the body. • Lens Product color and design may vary depending on the AF Zoom Lens is mounted. model. • IR LED A sensor in the middle monitors lighting levels and activates the IR LED during low-lighting conditions. -
Page 10: Pendant (Inner View)
Part 1 – Introduction Pendant (Inner View) • Alarm In/Out – ALI:Connect an alarm-in device to this port. (Mechanism: Choose between an NC (Normally Closed) type or an NO (Normally Open) type) → Connect a mechanical or electrical switch to the alarm in port and the GND (ground) connector. -
Page 11: Factory Reset
Part 1 – Introduction Factory Reset When inserting an alarm in/out, audio in/out, or video out, connector, hold down the button and push the connector in through the exposed Only use the factory reset button to restore the camera hole. Release the button and then gently pull to its factory default settings. -
Page 12: Installation
Part 1 – Introduction Installation Installation Installation of this product does not require the use of • Check the wall or ceiling to see if it needs to be special tools. reinforced. The camera may fall off if the wall or For more information on other devices comprising the ceiling is not strong enough to support its weight. - Page 13 Part 1 – Introduction Assemble the mount adapter to the camera body Assemble the pendant and the body by matching and secure it by using the mount adapter screws (3 the installation direction guides. Rotate the camera points). body clockwise to position the reference mark in the upper section and the lower section as shown in the figure.
-
Page 14: Dimensions
Part 1 – Introduction Dimensions Ø242mm Ø43.5mm... -
Page 15: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio In Audio Out Alarm Out 24 VAC Sensor In Power Monitor Out 24 VAC Network Network... -
Page 16: With Non Directip™ Nvr-Based Layout
Part 2 - Camera Connection With non DirectIP™ NVR-based Layout Sensor In Audio In Alarm Out 24 VAC Network Camera Audio Out Network microSD Memory Card Remote Monitoring (IDIS Solution Suite Compact or IDIS Web) Remote Recording (IDIS Solution Suite Compact) Control the camera over the network from software installed on a computer. -
Page 17: Part 3 - Appendix
Part 3 - Appendix Part 3 - Appendix Troubleshooting Problem Check The main unit won't turn • Check the power cable connection. • Check the power outlet. I can't see Live videos. • Check the camera's power status. • Check the network connection status of the computer and the network camera. Images are blurry. -
Page 18: Specifications
Part 3 - Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/2" CMOS Max. Resolution 1920x1080 Scanning Mode Progressive Scan Lens type AF Zoom Lens Focal Length f=6mm ~ 216mm Aperture F1.36 ~ 4.6 Iris Control DC Auto Iris Angular Field of View Wide : 57.36°(H), 33.12°(V), 65.18°(D) - Page 19 Part 3 - Appendix Network Video Compression H.265, H.264(MP), M-JPEG Bitrate Control VBR, CBR Max. Frame Rate 30ips : 1920 x 1080 (WDR) Audio Compression DC-S6286HRXL ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law model only Supported Resolution 1920x1080, 1280x720, 640x360, 352x240 Multi-Video Streaming Quadruple Ethernet...
