Flushed - Direct IP Network Camera Operation Manual

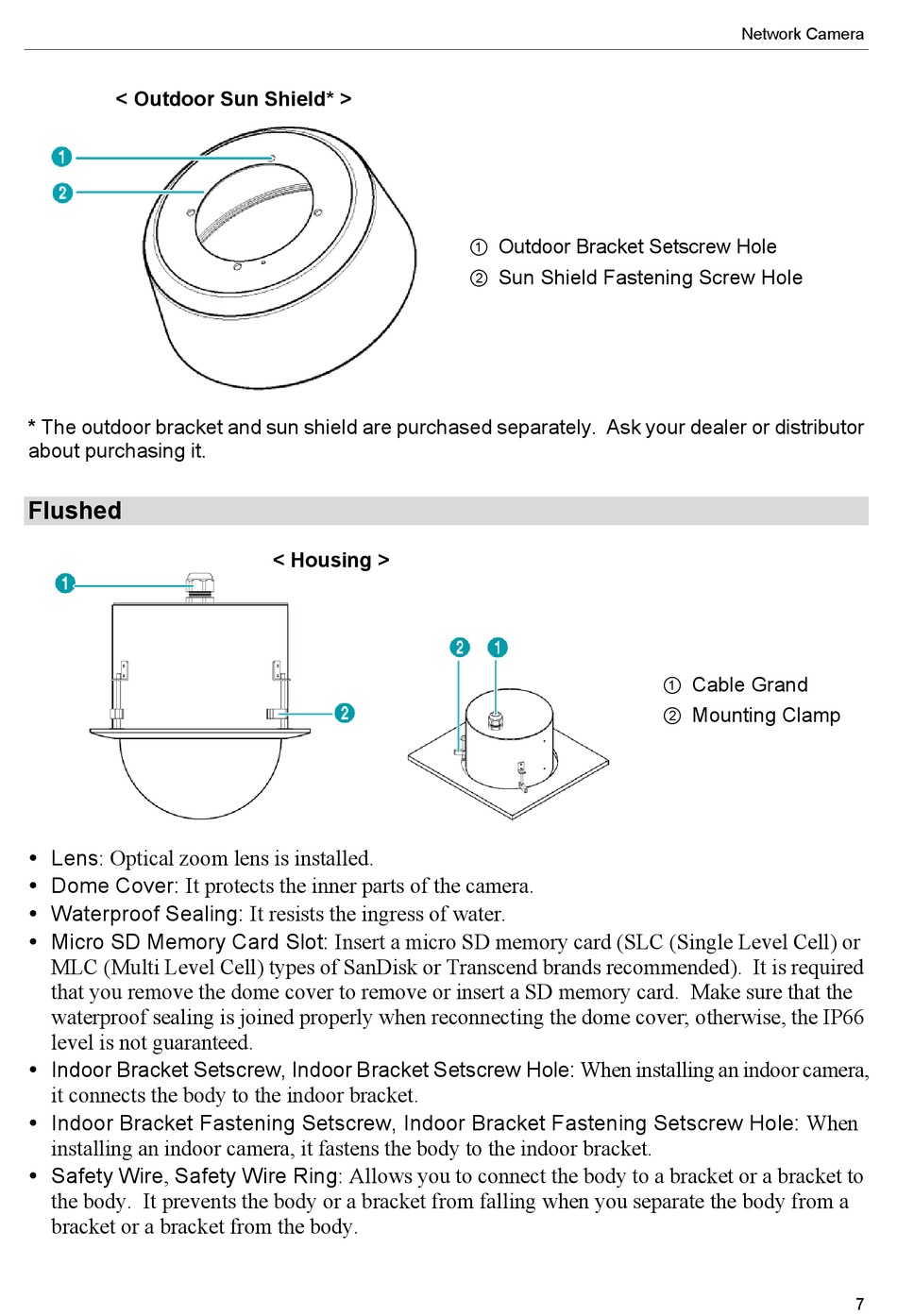

< Outdoor Sun Shield* >
* The outdoor bracket and sun shield are purchased separately. Ask your dealer or distributor
about purchasing it.

Flushed

 Lens: Optical zoom lens is installed.
 Dome Cover: It protects the inner parts of the camera.
 Waterproof Sealing: It resists the ingress of water.
 Micro SD Memory Card Slot: Insert a micro SD memory card (SLC (Single Level Cell) or
MLC (Multi Level Cell) types of SanDisk or Transcend brands recommended). It is required
that you remove the dome cover to remove or insert a SD memory card. Make sure that the
waterproof sealing is joined properly when reconnecting the dome cover; otherwise, the IP66
level is not guaranteed.
 Indoor Bracket Setscrew, Indoor Bracket Setscrew Hole: When installing an indoor camera,
it connects the body to the indoor bracket.
 Indoor Bracket Fastening Setscrew, Indoor Bracket Fastening Setscrew Hole: When
installing an indoor camera, it fastens the body to the indoor bracket.
 Safety Wire, Safety Wire Ring: Allows you to connect the body to a bracket or a bracket to
the body. It prevents the body or a bracket from falling when you separate the body from a
bracket or a bracket from the body.
< Housing >
① Outdoor Bracket Setscrew Hole
② Sun Shield Fastening Screw Hole
Network Camera
① Cable Grand
② Mounting Clamp
7
