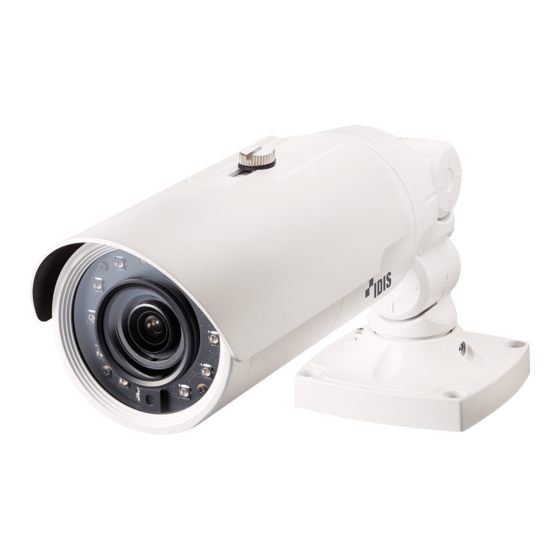

- Page 1 Network Camera Quick Guide DC-T3243HRX / DC-T6243HRX Powered by...
-
Page 2: Safety Precautions
Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated. -
Page 3: Fcc Compliance Statement
FCC Compliance Statement THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. - Page 4 Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. Some parts may differ depending on the situation. Network Camera Mounting Bracket Camera Sun Shield Ferrite Core Quick Guide Allen Wrench Sun Shield Screw, O Ring Screws (4ea.) Please download software (IDIS Discovery, IDIS Center, IDIS Solution Suite Compact) and product manual from this link : https://www.idisglobal.com/support/csdownload...
-
Page 5: Camera Installation
Cable Network Port BNC Video Out (Yellow Cable) Power In (Red Cable) FGND Audio In Audio Out Alarm In Alarm Out Camera Installation • Push the SD memory card until it disengages from the slot, and then pull it out. •... - Page 6 Installation Screw the camera sun shield to the camera using the screw and rubber provided with the camera. Screw the mounting bracket to the wall or ceiling by using screws provided with the camera. Screw the bottom cover to the mounting bracket by using screws provided with the camera.
-
Page 7: Specifications
Specifications External Dimensions (W x D x H) 90mm x 90mm x 308.5mm Weight (Main Unit) 3.08 lbs. (1.4kg) Working Temperature -40°C ~ +55°C (-40°F ~ +131°F) [-20°C ~ +55°C (-4°F ~ +131°F) when the heater is operating] Operating Humidity 0% ~ 90% Power Input 12VDC, PoE(IEEE 802.3af, Class3) - Page 12 IDIS Co., Ltd. For more information, please visit www.idisglobal.com...
