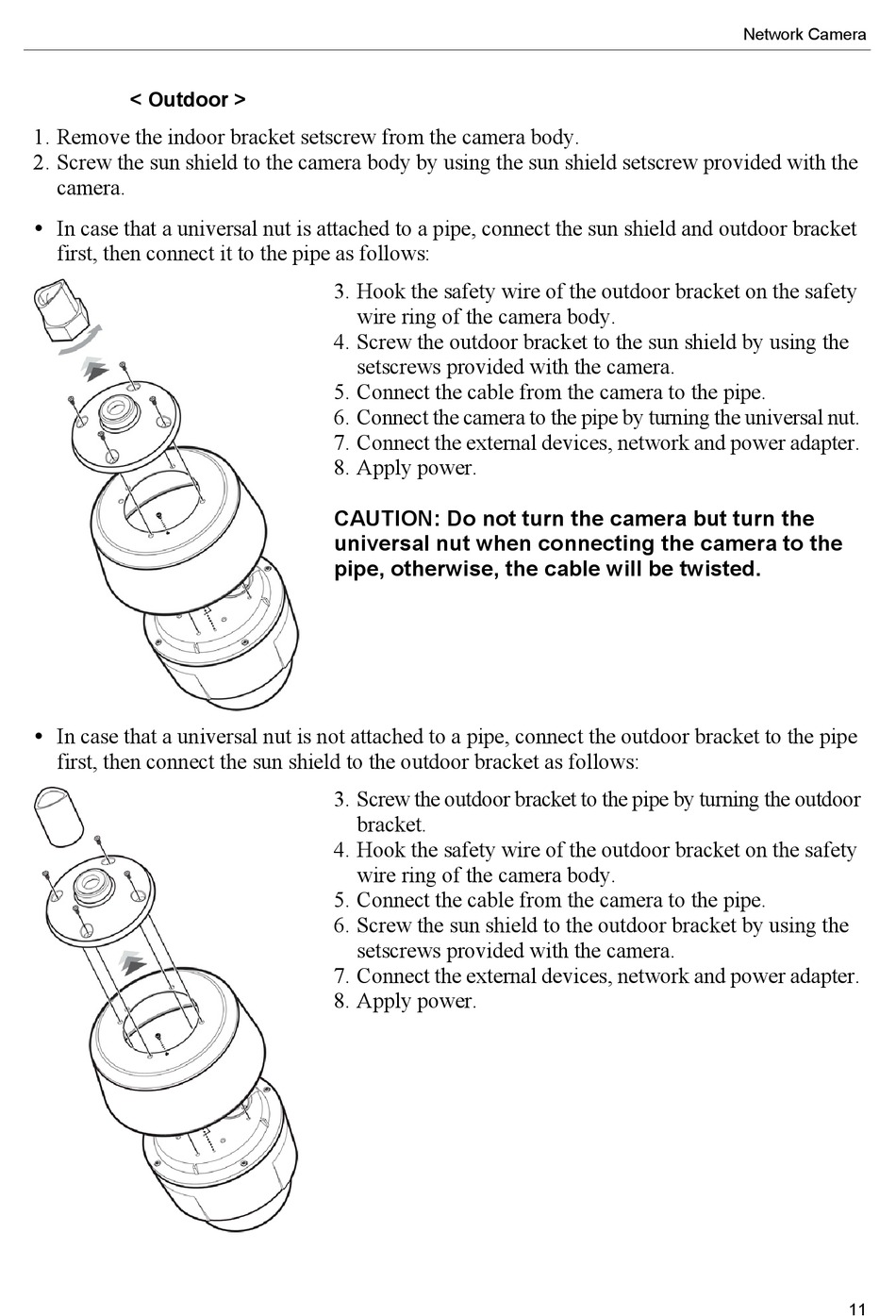

< Outdoor >
1. Remove the indoor bracket setscrew from the camera body.
2. Screw the sun shield to the camera body by using the sun shield setscrew provided with the
camera.
 In case that a universal nut is attached to a pipe, connect the sun shield and outdoor bracket
first, then connect it to the pipe as follows:
 In case that a universal nut is not attached to a pipe, connect the outdoor bracket to the pipe
first, then connect the sun shield to the outdoor bracket as follows:
3. Hook the safety wire of the outdoor bracket on the safety
wire ring of the camera body.
4. Screw the outdoor bracket to the sun shield by using the
setscrews provided with the camera.
5. Connect the cable from the camera to the pipe.
6. Connect the camera to the pipe by turning the universal nut.
7. Connect the external devices, network and power adapter.
8. Apply power.
CAUTION: Do not turn the camera but turn the
universal nut when connecting the camera to the
pipe, otherwise, the cable will be twisted.
3. Screw the outdoor bracket to the pipe by turning the outdoor
bracket.
4. Hook the safety wire of the outdoor bracket on the safety
wire ring of the camera body.
5. Connect the cable from the camera to the pipe.
6. Screw the sun shield to the outdoor bracket by using the
setscrews provided with the camera.
7. Connect the external devices, network and power adapter.
8. Apply power.
