Operation Manual
− Send Email: Check the box to send an email. Selecting Image Attachment attaches an event
detected image file (.JPG) to the email.
− Remote Callback: Check the box and select the remote systems to send a message (Not
supported for the WebGuard program).
− Audio Alarm: Check the box and select the audio file (.wav) to sound.
− FTP Upload: Check the box to upload images to an ftp server.
− Record: Check the box to record video
− Move PTZ to: Select the desired preset number that you want the camera to move to. You
must set preset locations in Remote Setup (Video – PTZ menu > Preset tab).
NOTE: You must properly configure the settings related to each event action when setting them
up to enable event actions. Refer to the Event Action setup.

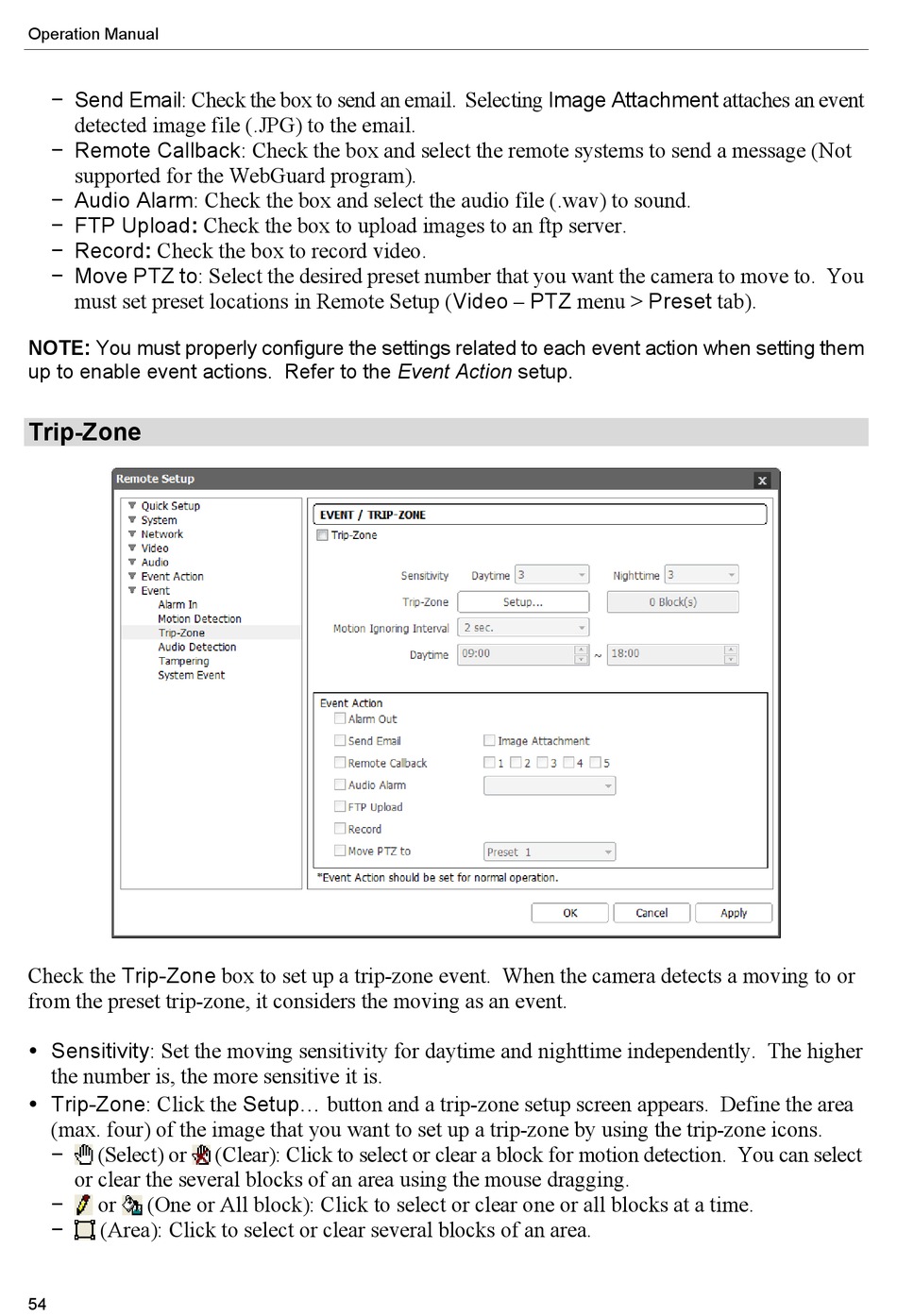

Trip-Zone

Check the Trip-Zone box to set up a trip-zone event. When the camera detects a moving to or
from the preset trip-zone, it considers the moving as an event.
 Sensitivity: Set the moving sensitivity for daytime and nighttime independently. The higher
the number is, the more sensitive it is.
 Trip-Zone: Click the Setup... button and a trip-zone setup screen appears. Define the area
(max. four) of the image that you want to set up a trip-zone by using the trip-zone icons.
− (Select) or
or clear the several blocks of an area using the mouse dragging.
− or (One or All block): Click to select or clear one or all blocks at a time.
− (Area): Click to select or clear several blocks of an area.
54
(Clear): Click to select or clear a block for motion detection. You can select
.
