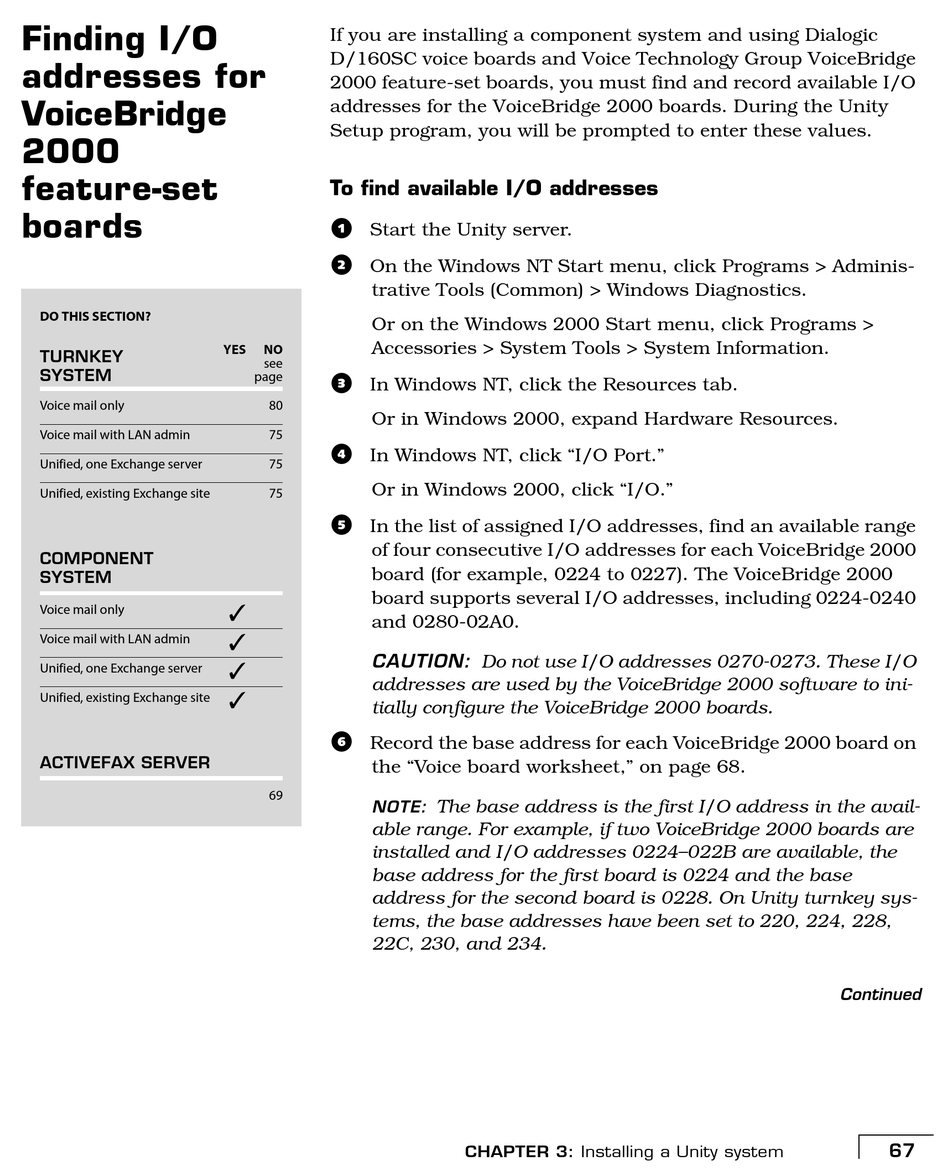

Finding I/O Addresses For Voicebridge 2000 Feature-Set Boards - Cisco Unity Installation Manual

Finding I/O
addresses for
VoiceBridge
2000
feature-set
boards
DO THIS SECTION?
TURNKEY
SYSTEM
Voice mail only
Voice mail with LAN admin
Unified, one Exchange server
Unified, existing Exchange site
COMPONENT
SYSTEM
Voice mail only
Voice mail with LAN admin
Unified, one Exchange server
Unified, existing Exchange site
ACTIVEFAX SERVER
If you are installing a component system and using Dialogic
D/160SC voice boards and Voice Technology Group VoiceBridge
2000 feature-set boards, you must find and record available I/O
addresses for the VoiceBridge 2000 boards. During the Unity
Setup program, you will be prompted to enter these values.
To find available I/O addresses
a Start the Unity server.
b On the Windows NT Start menu, click Programs > Adminis-
trative Tools (Common) > Windows Diagnostics.
Or on the Windows 2000 Start menu, click Programs >
Accessories > System Tools > System Information.
YES NO
see
page
c In Windows NT, click the Resources tab.
80
Or in Windows 2000, expand Hardware Resources.
75
d In Windows NT, click "I/O Port."
75
Or in Windows 2000, click "I/O."
75
e In the list of assigned I/O addresses, find an available range
of four consecutive I/O addresses for each VoiceBridge 2000
board (for example, 0224 to 0227). The VoiceBridge 2000
board supports several I/O addresses, including 0224-0240
and 0280-02A0.
CAUTION: Do not use I/O addresses 0270-0273. These I/O
addresses are used by the VoiceBridge 2000 software to ini-
tially configure the VoiceBridge 2000 boards.
f Record the base address for each VoiceBridge 2000 board on
the "Voice board worksheet," on page 68.
69
NOTE:
able range. For example, if two VoiceBridge 2000 boards are
installed and I/O addresses 0224–022B are available, the
base address for the first board is 0224 and the base
address for the second board is 0228. On Unity turnkey sys-
tems, the base addresses have been set to 220, 224, 228,
22C, 230, and 234.
The base address is the first I/O address in the avail-
CHAPTER 3: Installing a Unity system
Continued
67
