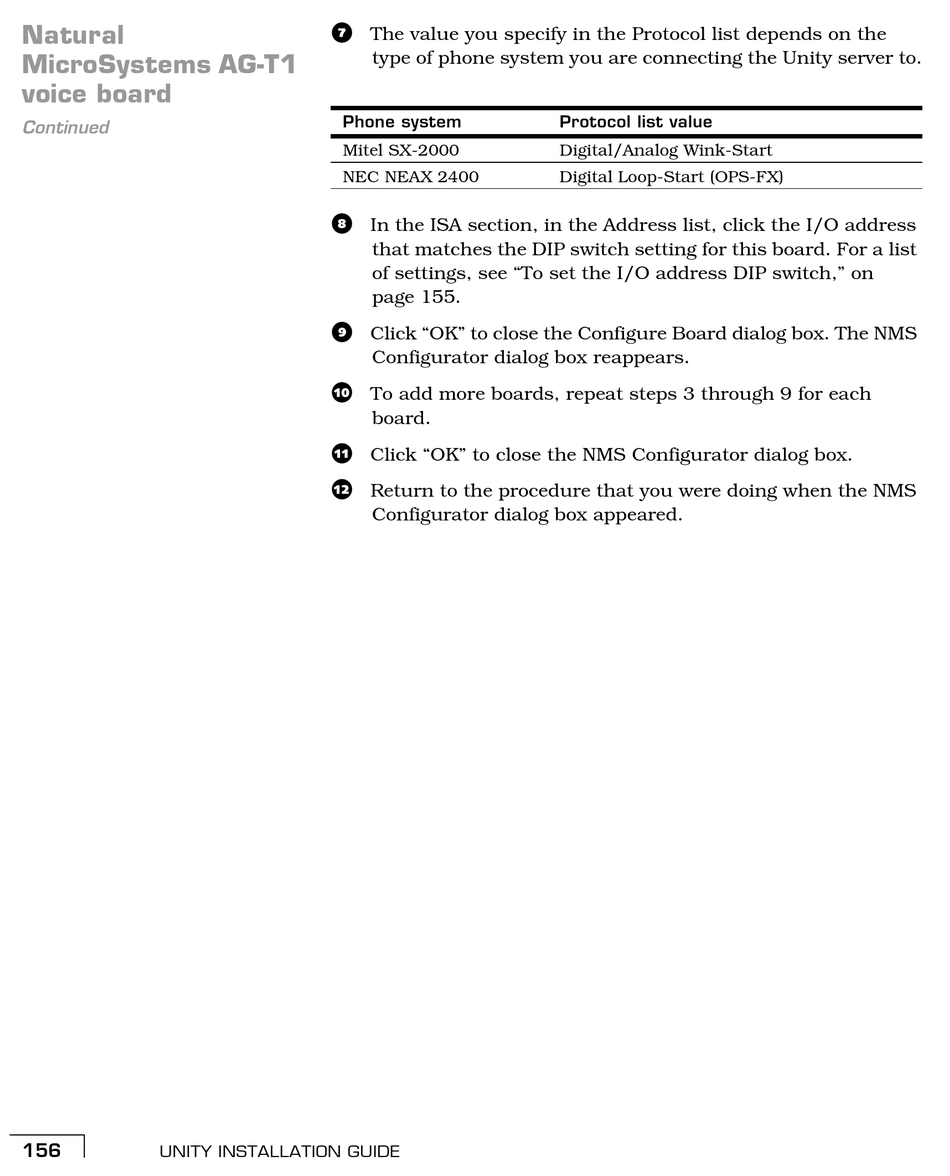

Cisco Unity Installation Manual page 164

Natural
MicroSystems AG-T1
voice board
Continued
156
UNITY INSTALLATION GUIDE
g The value you specify in the Protocol list depends on the
type of phone system you are connecting the Unity server to.
Phone system
Mitel SX-2000
NEC NEAX 2400
h In the ISA section, in the Address list, click the I/O address
that matches the DIP switch setting for this board. For a list
of settings, see "To set the I/O address DIP switch," on
page 155.
i Click "OK" to close the Configure Board dialog box. The NMS
Configurator dialog box reappears.
j To add more boards, repeat steps c through i for each
board.
k Click "OK" to close the NMS Configurator dialog box.
l
Return to the procedure that you were doing when the NMS
Configurator dialog box appeared.
Protocol list value
Digital/Analog Wink-Start
Digital Loop-Start (OPS-FX)
