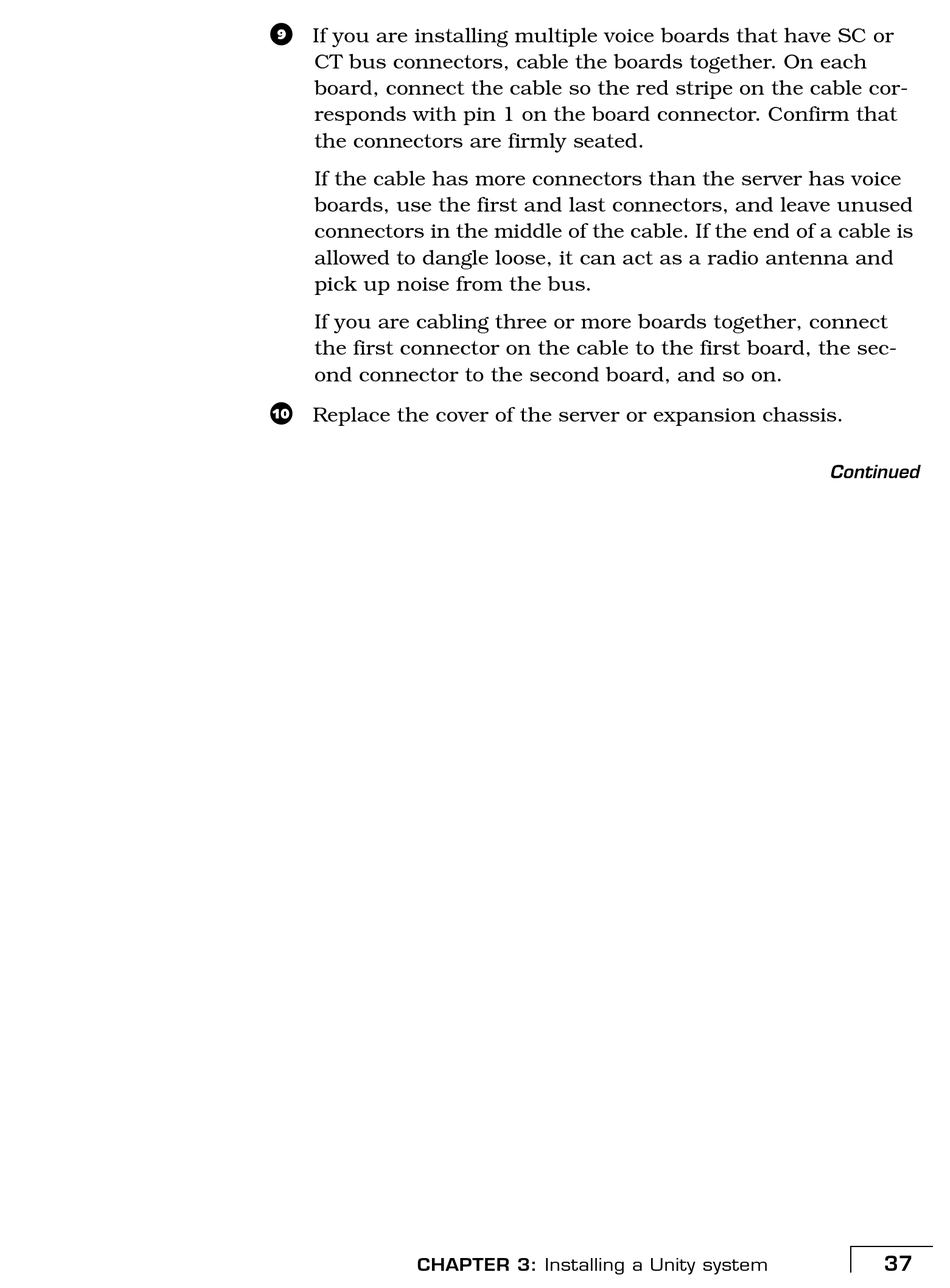

Cisco Unity Installation Manual page 45

i If you are installing multiple voice boards that have SC or
CT bus connectors, cable the boards together. On each
board, connect the cable so the red stripe on the cable cor-
responds with pin 1 on the board connector. Confirm that
the connectors are firmly seated.
If the cable has more connectors than the server has voice
boards, use the first and last connectors, and leave unused
connectors in the middle of the cable. If the end of a cable is
allowed to dangle loose, it can act as a radio antenna and
pick up noise from the bus.
If you are cabling three or more boards together, connect
the first connector on the cable to the first board, the sec-
ond connector to the second board, and so on.
j Replace the cover of the server or expansion chassis.
CHAPTER 3: Installing a Unity system
Continued
37
