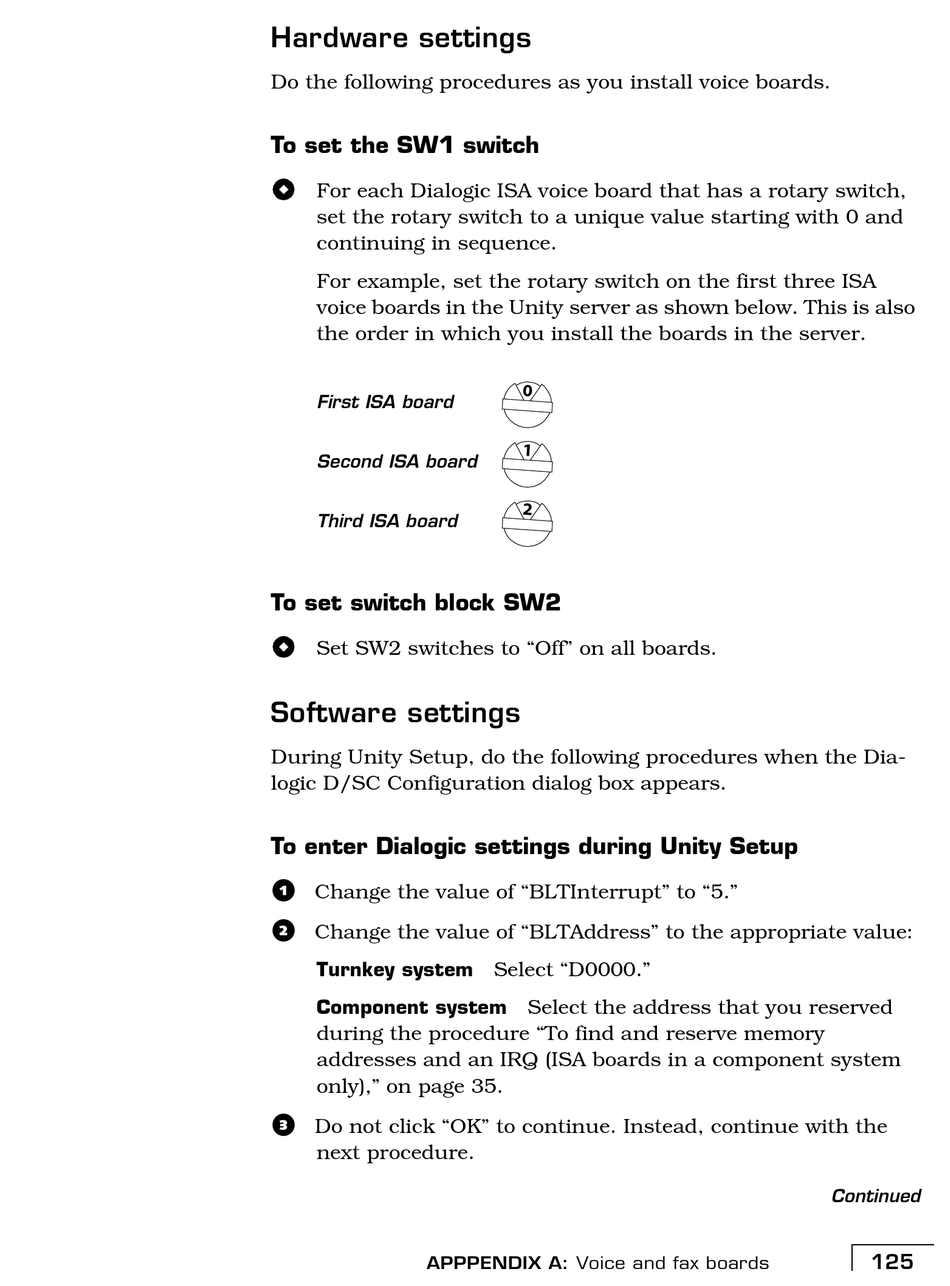

Cisco Unity Installation Manual page 133

Hardware settings
Do the following procedures as you install voice boards.
To set the SW1 switch
For each Dialogic ISA voice board that has a rotary switch,
set the rotary switch to a unique value starting with 0 and
continuing in sequence.
For example, set the rotary switch on the first three ISA
voice boards in the Unity server as shown below. This is also
the order in which you install the boards in the server.
First ISA board
Second ISA board
Third ISA board
To set switch block SW2
Set SW2 switches to "Off" on all boards.
Software settings
During Unity Setup, do the following procedures when the Dia-
logic D/SC Configuration dialog box appears.
To enter Dialogic settings during Unity Setup
a Change the value of "BLTInterrupt" to "5."
b Change the value of "BLTAddress" to the appropriate value:
Turnkey system
Component system
during the procedure "To find and reserve memory
addresses and an IRQ (ISA boards in a component system
only)," on page 35.
c Do not click "OK" to continue. Instead, continue with the
next procedure.
APPPENDIX A: Voice and fax boards
Select "D0000."
Select the address that you reserved
Continued
