Cisco Unity Installation Manual page 134

Dialogic
D/41ESC-Euro
voice board
Continued
126
UNITY INSTALLATION GUIDE

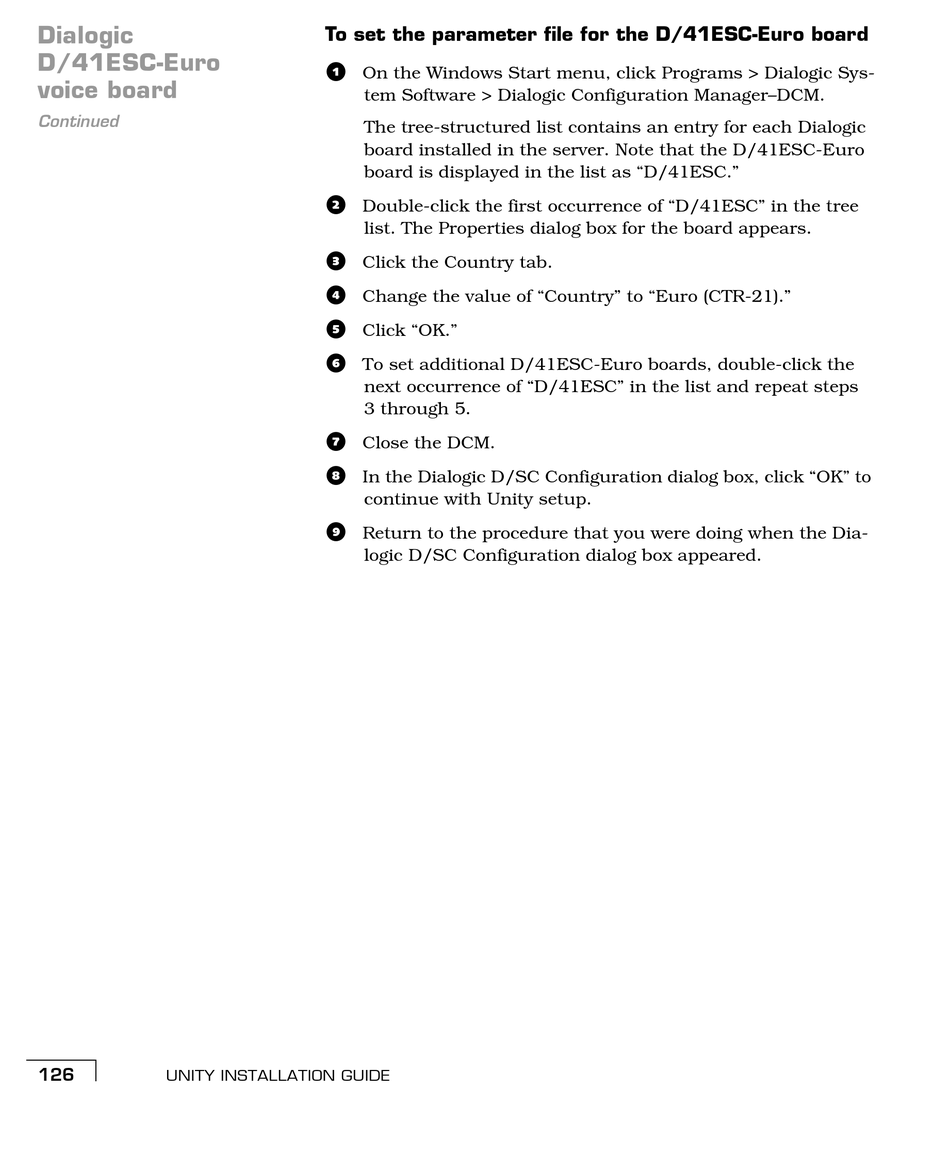

To set the parameter file for the D/41ESC-Euro board
a On the Windows Start menu, click Programs > Dialogic Sys-
tem Software > Dialogic Configuration Manager–DCM.
The tree-structured list contains an entry for each Dialogic
board installed in the server. Note that the D/41ESC-Euro
board is displayed in the list as "D/41ESC."
b Double-click the first occurrence of "D/41ESC" in the tree
list. The Properties dialog box for the board appears.
c Click the Country tab.
d Change the value of "Country" to "Euro (CTR-21)."
e Click "OK."
f To set additional D/41ESC-Euro boards, double-click the
next occurrence of "D/41ESC" in the list and repeat steps
c through e.
g Close the DCM.
h In the Dialogic D/SC Configuration dialog box, click "OK" to
continue with Unity setup.
i Return to the procedure that you were doing when the Dia-
logic D/SC Configuration dialog box appeared.
