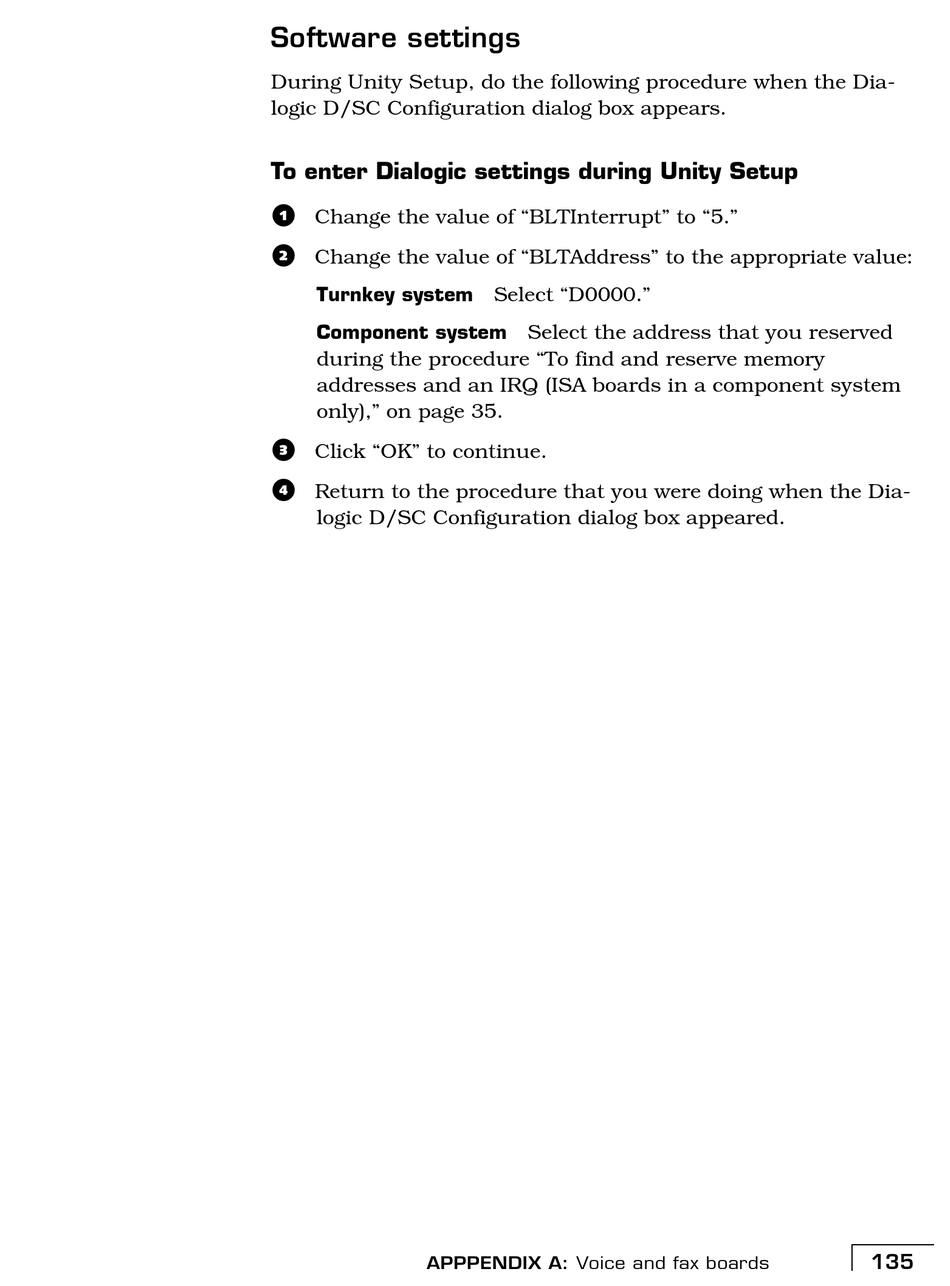

Cisco Unity Installation Manual page 143

Software settings
During Unity Setup, do the following procedure when the Dia-
logic D/SC Configuration dialog box appears.
To enter Dialogic settings during Unity Setup
a Change the value of "BLTInterrupt" to "5."
b Change the value of "BLTAddress" to the appropriate value:
Turnkey system
Component system
during the procedure "To find and reserve memory
addresses and an IRQ (ISA boards in a component system
only)," on page 35.
c Click "OK" to continue.
d Return to the procedure that you were doing when the Dia-
logic D/SC Configuration dialog box appeared.
APPPENDIX A: Voice and fax boards
Select "D0000."
Select the address that you reserved
135
