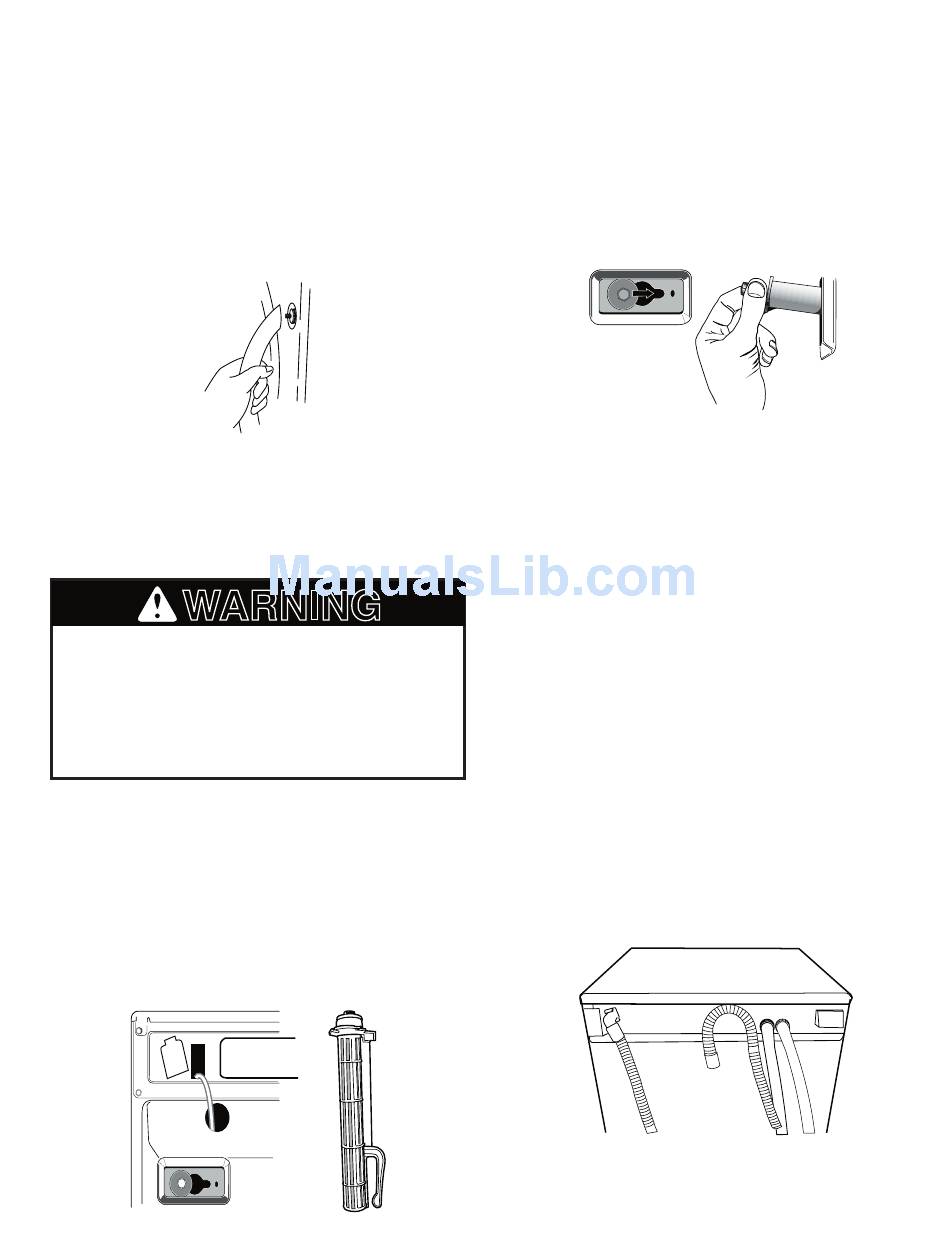

ATTACH DOOR HANDLE
1.
Insert the 2 screws through the holes in
the door.
2.
Place the plastic washers onto the
screws.
3.
Attach the handle by hand tightening the
screws, first the top then the bottom.
4.
Push the handle against the door. Using a
Phillips screwdriver, tighten the screws.
NOTE: Do not overtighten.
REMOVE TRANSPORT SYSTEM
WARNING
Excessive Weight Hazard
Use two or more people to move and
install washer.
Failure to do so can result in back or
other injury.
IMPORTANT: Position the washer so that the
rear of the unit is within approximately 3 feet
(90 cm) of the final location.
There are 4 bolts in the rear panel of the
washer that support the suspension system
during transportation. These bolts also retain
the power cord inside the washer until the bolts
are removed.

INSTALLATION INSTRUCTIONS

1.
Using a 13 mm wrench, loosen each of the
bolts.
2.
Once the bolt is loose, move it to the cen-
ter of the hole, and completely pull out the
bolt, including the plastic spacer covering
the bolt. The power cord will be attached
to all 4 bolts inside the washer.
3.
Once all 4 bolts are removed, discard the
bolts and spacers. Then pull the power cord
through the opening of the rear panel and
close the hole with the attached cap.
4.
Close the bolt holes with the 4 transport
bolt hole plugs.
NOTE: If the washer is to be transported at
a later date, call your local service center. To
avoid suspension and structural damage, the
machine must be properly prepared (transport
system installed) for relocation by a certified
technician.
ROUTE THE DRAIN HOSE
Proper routing of the drain hose helps avoid
floor damage due to water leakage. Read and
follow these instructions.
The drain hose is connected to your washer.
Gently pull the corrugated drain hose from the
shipping clips.
2-5
