CRANKSHAFT PULLEY

Removal

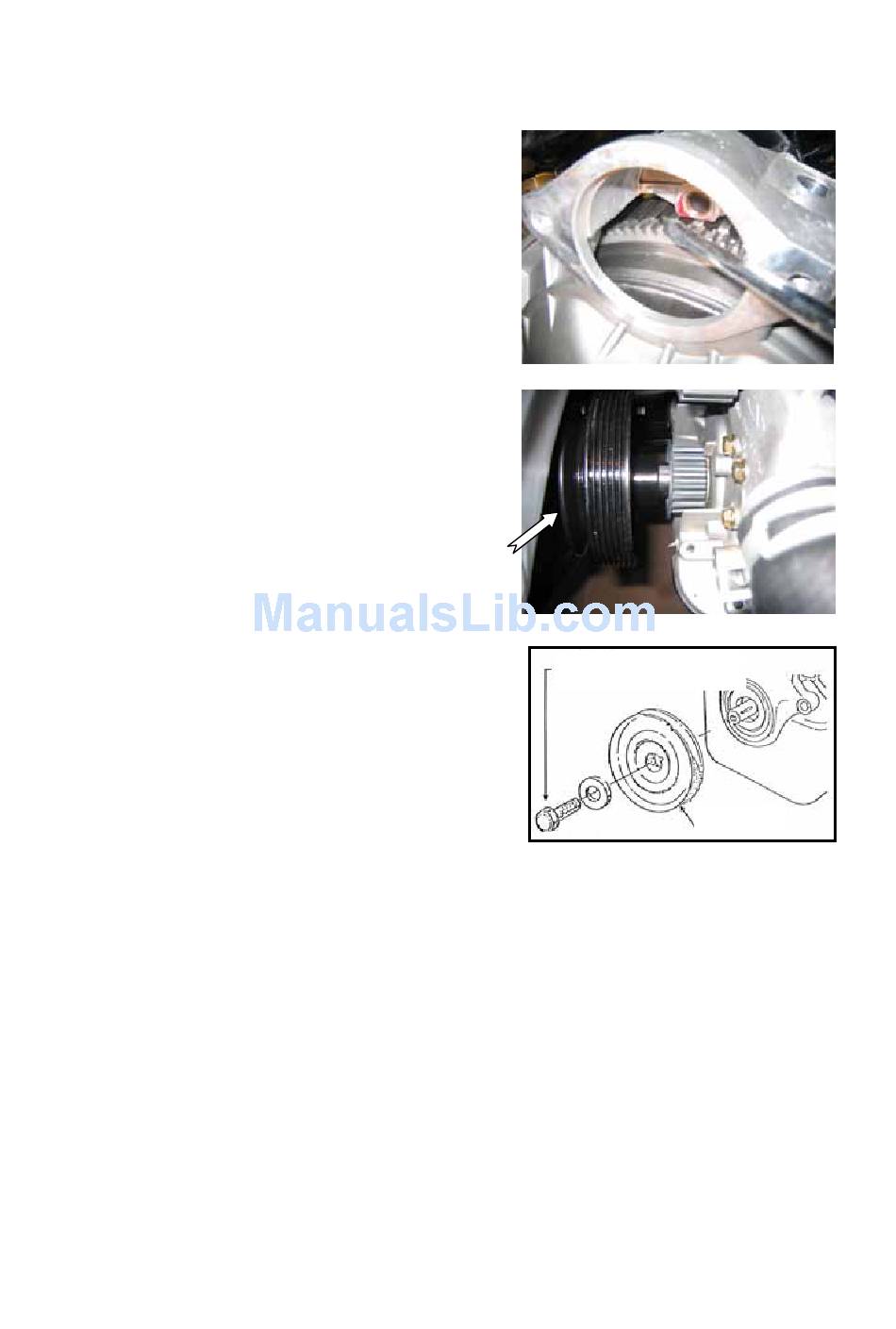

Removal 3 fixing bolts on the starter to take it out.
Fasten the flywheel ring gear with a proper
screwdriver or rod to disenable the crank shaft to
rotate.
Loosen the fixing bolts of the crank pulley and
take out the bolts and washer to pull out the pulley
(use a gear puller, if necessary).
Installation
Clean the pulley and crankshaft journals and wipe
clean the lube in the pulley groove. Install the
pulley on the crank shaft journal, with the key slot
to line up with the whiney key.
Put the washer over the bolts and screw it in by
hands. Fasten the flywheel ring gear to disenable
the crank shaft to rotate. Tighten the bolts for a
moment of 100-115N.m

FRONT OIL SEAL

B-21
Bolt: M12*35
Tightening torque: 100~115Nm
Pulley
