Hitachi Simple Modular Storage 100 User Manual page 62

•
9. Be sure the drive is installed securely in the slot.
10.Attach the repair slot cover, then secure it by tightening the two screws
you loosened in step 4.
11.Verify that the Warning LED goes OFF.
12.Replace the front panel bezel (see
page
13.Click the Refresh Information button to clear the Failed status and
verify that No Object appears in the Failed Part List (see s).
•
Refresh Information Button
Click Here for
No Object
14.In the Arrays window, verify that the array status is Normal.
15.Remove the anti-static wristband.
4–6
Dummy Drive
Screws Repair Slot Cover

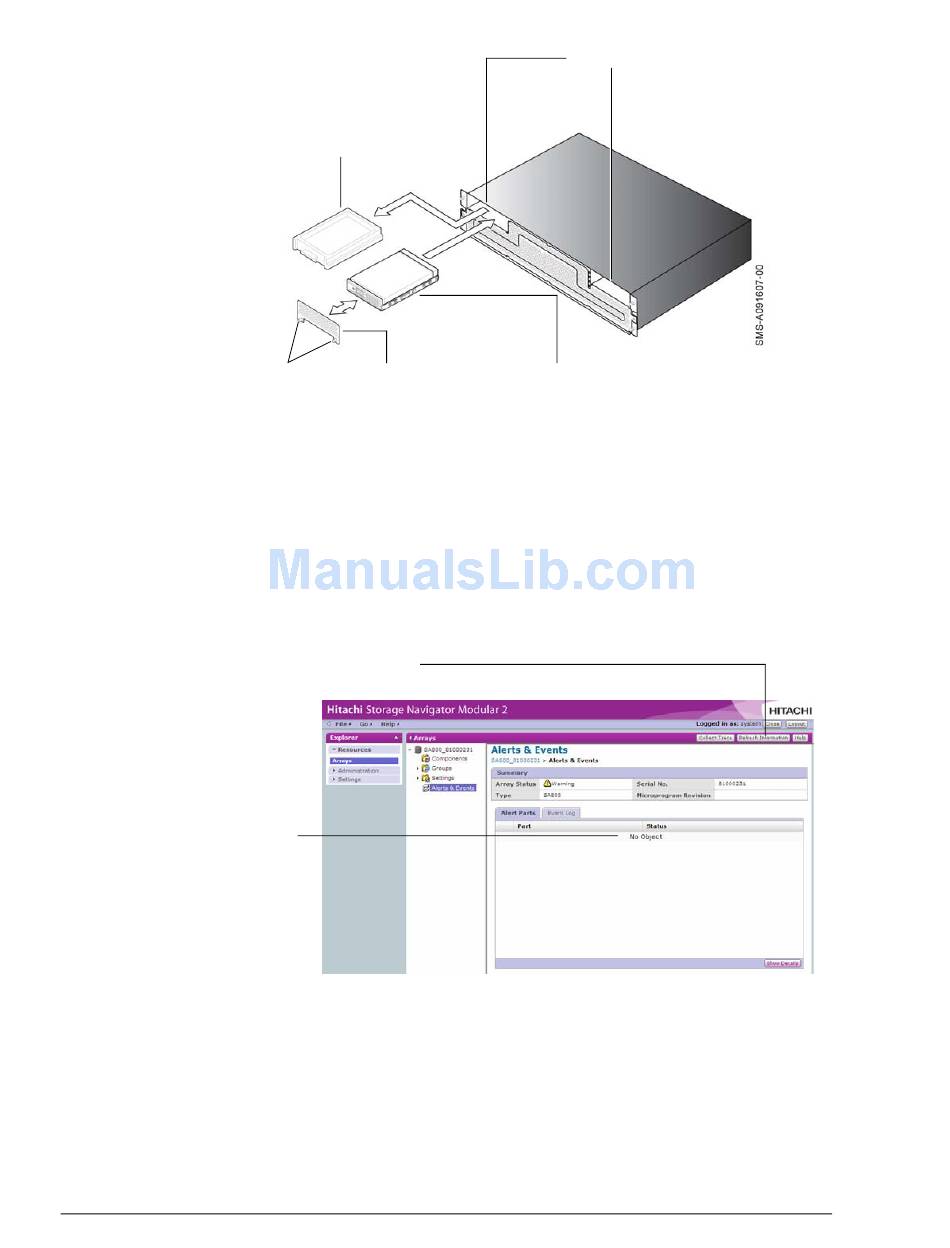

Figure 4-6: Installing the Spare Drives
3-12).
Figure 4-7: Confirming No Object Status
Maintaining Your Array
Hitachi Simple Modular Storage 100 User's Guide
Drive Slots
Spare Drive
Attaching the Front Panel Bezel on
