Attaching the Front Panel Bezel

For table and shelf installations, the bezel connects directly to the four ball
catches (two on each side) of the Hitachi Simple Modular Storage 100 front
panel:
1. Unwrap the front bezel.
2. Holding the side of front bezel with both hands, align it with the four ball
catches on the front panel.
3. Gently push the bezel against the catches and front panel until the bezel
snaps into place.

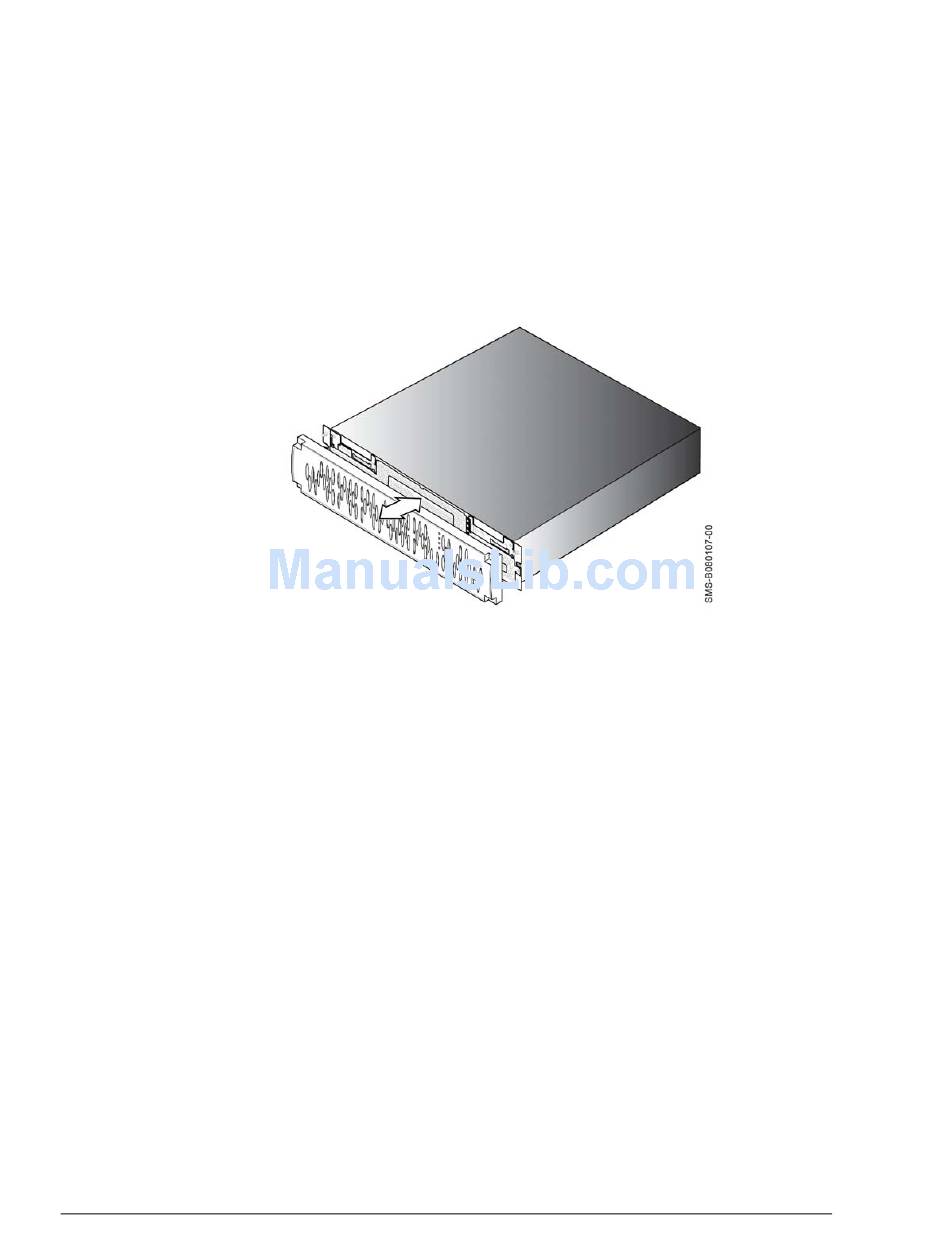

Figure 3-4
•
Figure 3-4: Attaching the Front Bezel (Table/Shelf Installations)
For rack-mount installations, attach the bezel to the front left and right sides
of the rack chassis (see
3–12
shows how to attach the bezel for table and shelf installations.
Figure 3-5 on page
Installing Your Array
Hitachi Simple Modular Storage 100 User's Guide
3-13).
